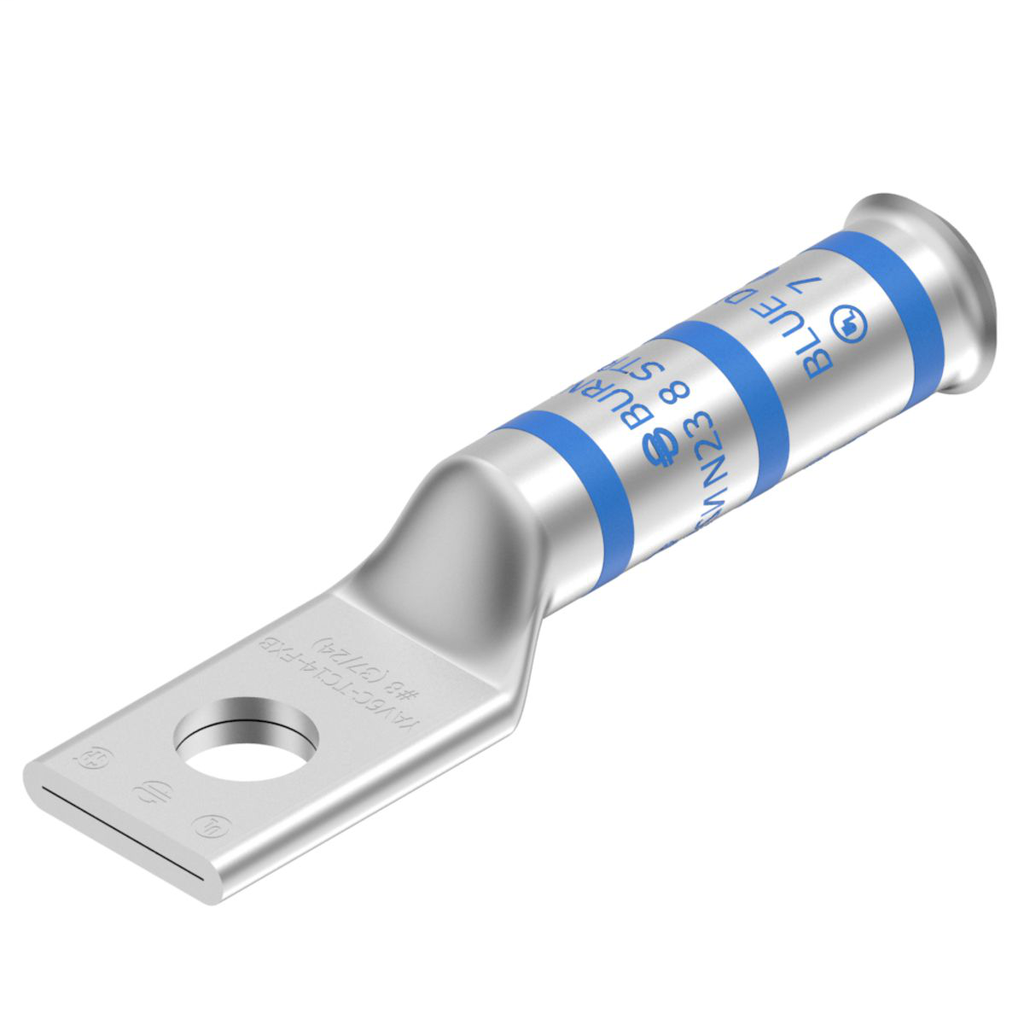

BUR YAV6CTC14FXB BELLED HYLUG- 6FLE
$5.42/ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YAV6CTC14FXB
North Coast Part # 819570

Specifications

General

  • Color Code: Blue
  • Connector Type: Terminal
  • Die Index: 7
  • Feature - Barrel Style: Belled
  • Feature - Barrel Type: Long
  • Material: Copper
  • Physical Attribute - Number of Holes: 1
  • Physical Attribute - Tongue Type: Standard
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • Trade Name: HYLUG™
  • Type: Long Barrel, Tin Plated
  • UPC: 781810044650
  • UPC 12 Digit: 7818100446500

Dimensions

  • Dimension - B Length inch: 1.22 in
  • Dimension - Bolt Hole Size inch: 0.27 in
  • Dimension - Hole Size inch: 0.27 in
  • Dimension - Hole Size mm: 7 mm
  • Dimension - L Length Overall mm: 54 mm
  • Dimension - Length Overall inch: 2.12 in
  • Dimension - N inch: 0.31 in
  • Dimension - Outside Diameter inch: 0.31 in
  • Dimension - Pad Width inch: 0.48 in
  • Dimension - Strip Length inch: 1-5/16 in
  • Dimension - Stud Size inch: 1/4
  • Dimension - Z inch: 0.33 in
  • Physical Attribute - Tongue Angle: Straight

Electrical Ratings

  • Rating - KVA: 35 kV
  • Rating - Minimum Voltage: 600
  • Voltage - Maximum: 35000

Conductor Related

  • Conductor - Copper DLO Size: 6 (61/24) DLO
  • Conductor - Copper DLO Size Range: 6 (61/24) DLO
  • Conductor - Copper Flex G Size: 6 AWG
  • Conductor - Copper Flex G Size Range: 6 AWG
  • Conductor - Copper Flex H Size: 6 AWG
  • Conductor - Copper Flex H Size Range: 6 AWG
  • Conductor - Copper Flex I Size: 6 AWG
  • Conductor - Copper Flex I Size Range: 6 AWG
  • Conductor - Copper Flex K Size: 6 AWG
  • Conductor - Copper Flex K Size Range: 6 AWG
  • Conductor - Copper Flex M Size: 6 AWG
  • Conductor - Copper Flex M Size Range: 6 AWG
  • Conductor - Copper Str Navy Size: 30 Navy
  • Conductor - Copper Str Navy Size Range: 30 Navy
  • Conductor - Copper Str Size: 16 mm²
  • Conductor - Copper Str Size Range: 16 mm²
  • Conductor - Material: Copper

Certifications and Compliance

  • Certification - CSA Approved: Yes
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): UL468A-468B
  • Standards - Industry Standards Met: UL468A-468B
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 50

Overview

UPC 78181004465
GTiN 00781810044650
Family Brand Name Hubbell
Length 2.12 in
Hole Size 7 mm
Material Copper
Conductor Size 16 mm
Connection Type Terminal
Plating Type Tin - Electro Plated
Conductor Material Copper
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Blue
