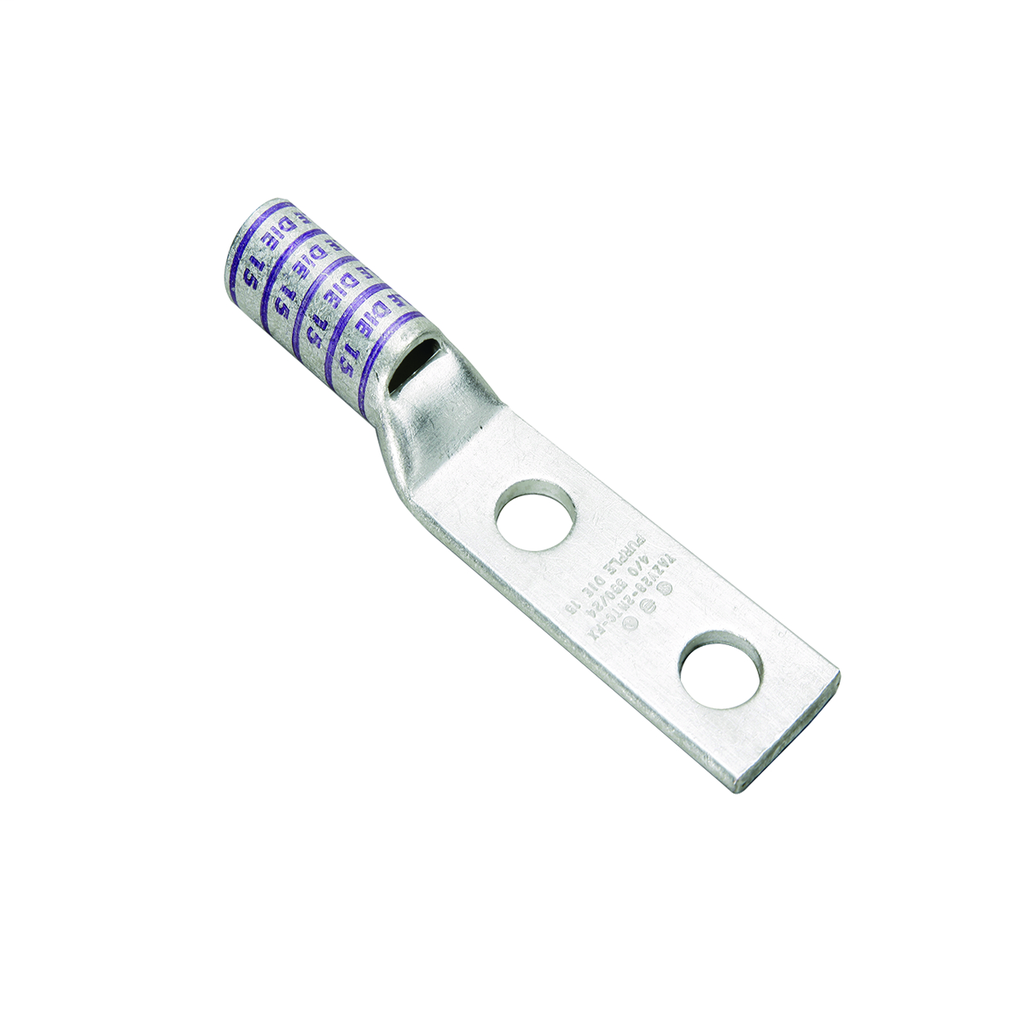

BUR YAZ252TC14E1 CU HYLUG 1/0 AWG-2
$19.92/ea
Usually ships within 11 to 17 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YAZ252TC14E1
North Coast Part # 72534

Specifications

General

  • Color Code: Pink
  • Connector Type: Terminal
  • Die Index: 12;348
  • Feature - Barrel Style: Skived
  • Feature - Barrel Type: Long
  • Material: Copper
  • Physical Attribute - Number of Holes: 2
  • Physical Attribute - Tongue Type: Standard
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • Trade Name: HYLUG™
  • Type: Long Barrel, Skive, Tin Plated
  • UPC: 781810197059
  • UPC 12 Digit: 7818101970599

Dimensions

  • Dimension - B Length inch: 1.38
  • Dimension - Bolt Size fraction: 1/4
  • Dimension - E Spacing between Holes fraction: 1
  • Dimension - Hole Size inch: 0.27
  • Dimension - Hole Size mm: 7
  • Dimension - L Length Overall mm: 87
  • Dimension - Length Overall inch: 3.41
  • Dimension - N inch: 0.31
  • Dimension - Outside Diameter inch: 0.51
  • Dimension - Pad Width inch: 0.75
  • Dimension - Strip Length inch: 1-7/16
  • Dimension - Z inch: 0.34 in
  • Physical Attribute - Tongue Angle: Straight

Electrical Ratings

  • Rating - KVA: 35 kV
  • Rating - Minimum Voltage: 600
  • Voltage - Maximum: 35000

Conductor Related

  • Conductor - Copper Str Navy Size: 100 Navy
  • Conductor - Copper Str Size: 1/0 AWG
  • Conductor - Material: Copper

Certifications and Compliance

  • Certification - CSA Approved: Yes
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 50

Overview

UPC 78181019705
GTiN 00781810197059
Family Brand Name Hubbell
Length 3.41 in
Hole Size 7 mm
Material Copper
Conductor Size 1/0 AWG
Connection Type Terminal
Plating Type Tin - Electro Plated
Conductor Material Copper
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Pink
