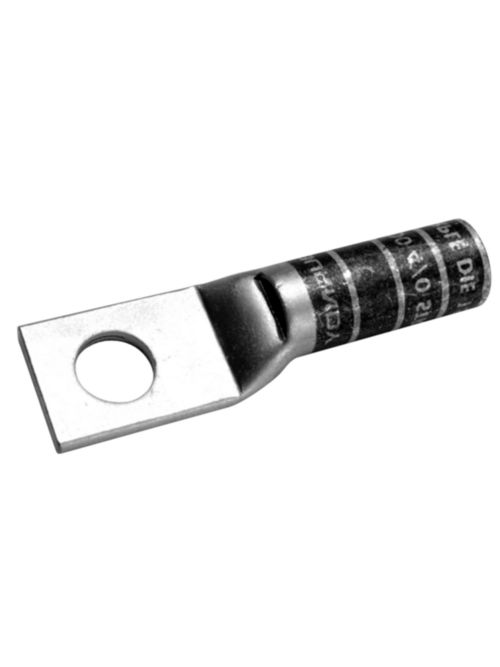

BUR YAZ32TC12FX LONG BARREL FLEX 31
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$42.01/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YAZ32TC12FX
North Coast Part # 1341614

Features

  • One hole, Copper compression terminal Flex conductor, Tin plated

Specifications

  • Buy American Compliant: No
  • Conductor - Copper DLO Size: 313.1 (775/#24) DLO
  • Conductor - Copper DLO Size Range: 313 kcmil
  • Conductor - Copper Flex G Size: 300 kcmil
  • Conductor - Copper Flex G Size Range: 300 kcmil
  • Conductor - Copper Flex H Size: 300 kcmil
  • Conductor - Copper Flex H Size Range: 300 kcmil
  • Conductor - Copper Flex I Size: 300 kcmil
  • Conductor - Copper Flex I Size Range: 300 kcmil
  • Conductor - Copper Flex K Size: 300 kcmil
  • Conductor - Copper Flex K Size Range: 300 kcmil
  • Conductor - Copper Flex M Size: 300 kcmil
  • Conductor - Copper Flex M Size Range: 300 kcmil
  • Conductor - Copper Str Size Range: 300 kcmil
  • Conductor - Material: Copper
  • Country of Origin: US
  • Dimension - B Length fraction: 2-1/8 in
  • Dimension - B Length inch: 2.12 in
  • Dimension - Bolt Hole Size inch: 0.52 in
  • Dimension - Bolt Size fraction: 1/2
  • Dimension - Hole Size inch: 0.52 in
  • Dimension - Hole Size mm: 13 mm
  • Dimension - L Length Overall mm: 98 mm
  • Dimension - Length Overall inch: 3.86 in
  • Dimension - N inch: 0.53 in
  • Dimension - Outside Diameter inch: 0.95 in
  • Dimension - Pad Width inch: 1.40 in
  • Dimension - Strip Length inch: 2-3/16
  • Dimension - Z inch: 0.54 in
  • Each - Height: 0.95 in
  • Each - Length: 3.86 in
  • Each - Width: 1.4 in
  • Feature - Barrel Style: Chamfered;Skived
  • Feature - Barrel Type: Long
  • Industry Standard(s): UL 486A-486B
  • Physical Attribute - Number of Holes: 1
  • Physical Attribute - Tongue Angle: Straight
  • Plated: Y
  • Plating Type: Tin
  • Product Type: Compression
  • Rating - KVA: 35 kV
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: CM
  • Trade Name: HYLUG™
  • Application: For Code Conductor
  • Special Features: One hole, Copper compression terminal Flex conductor, Tin plated
  • Standard: UL 486A-486B
  • Sub Brand: TERMINALS, HYLUG
  • Type: Long Barrel, Skive
  • IGS 3D Model Asset Reference URL 1: https://hubbellcdn.com/igs/YAZ32TC12FX_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 3: https://hubbellcdn.com/PDF3DFile/YAZ32TC12FX_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 2: https://hubbellcdn.com/step3dfile/YAZ32TC12FX_MODEL-STEP.zip

Certifications

  • CSA Approved: Yes
  • EU RoHS Indicator: Yes

Overview

UPC 78181050386
Item Long Description Cu Comp Terminal Flex Cond, 1 Hole/W/InspWindow, 313.1 kcmil(775/#24)DLO,300 kcmil Flex, 600 V-35 kV, 1/2" Stud, Lng bbl, Tin Plated, Red, 18 or 324 Index.
GTiN 00781810503867
Color Blue
Type Long Barrel, Skive
Material Copper
Applications For Code Conductor
Family Brand Name BURNDY
Sub Brand TERMINALS, HYLUG
Length 3.86 in
Hole Size 13 mm
Connection Type Terminal
Plating Type Tin
Conductor Material Copper
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Red
Voltage 35,000 Volt
