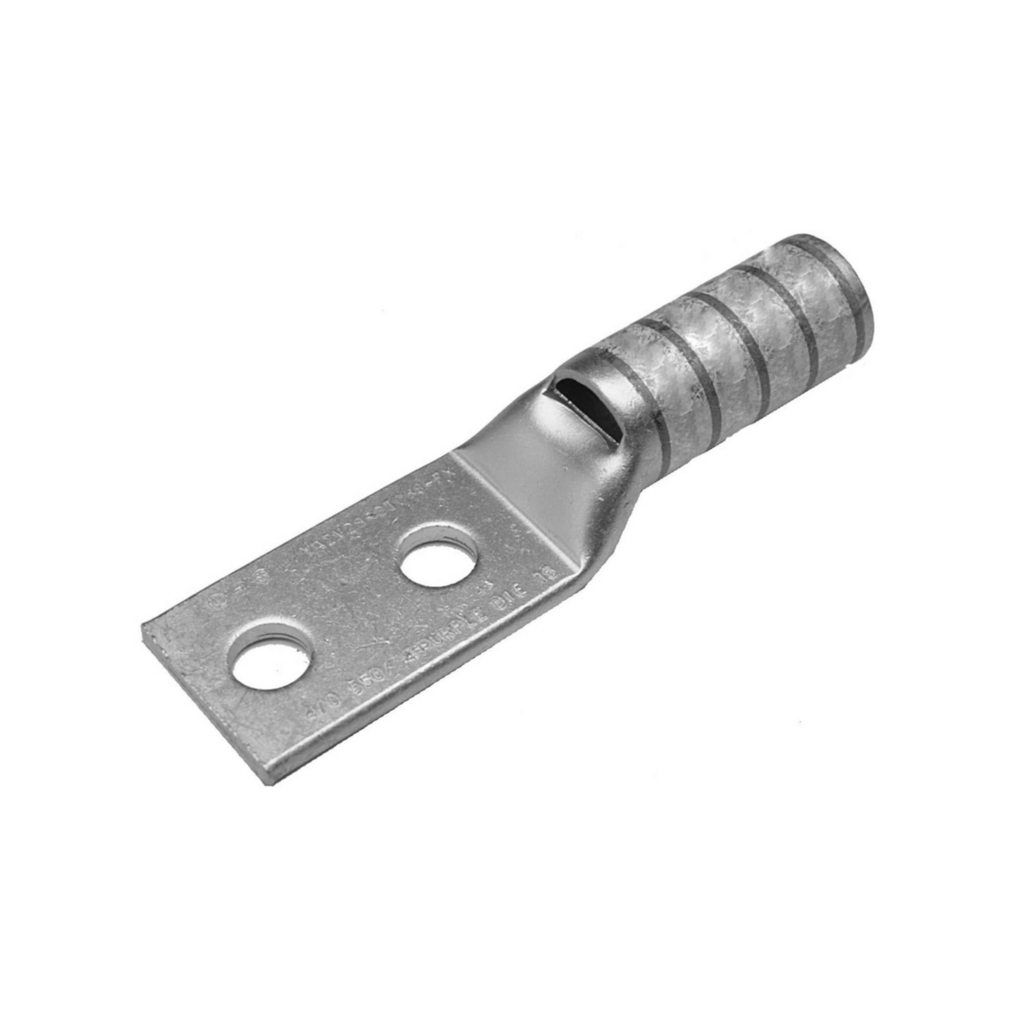

BUR YAZV252TC14FX CULUG-1/0 FLX-LON
Product image thumbnail 0
Product image thumbnail 1
$18.51/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YAZV252TC14FX
North Coast Part # 67454

Features

  • UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Tongue Angle: Straight, Finish: Electro-Tin Plated, Die Index: 12, Wire Strip Length: 1-9/16 IN, Temperature Rating: 90 DEG C, Color Code: Pink, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W25VT, W25RT, X25RT Die, (4), Hydraulic: BCT500HS, Y500CTHS Tool, W25VT, W25RT, X25RT Die, (4), Y35, Y39, Y750, PAT750 Tool, U25RT Die, (2), Y46 Tool, U25RT Die With PUADP-1 Adapter, (2), Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-11 Tool, (2), Conductor Type: Flexible

Specifications

  • Conductor - Copper DLO Size: 1/0 (275/#24) DLO
  • Conductor - Copper DLO Size Range: 1/0 AWG
  • Conductor - Copper Flex G Size: 1/0 AWG
  • Conductor - Copper Flex G Size Range: 1/0 AWG
  • Conductor - Copper Flex H Size: 1/0 AWG
  • Conductor - Copper Flex H Size Range: 1/0 AWG
  • Conductor - Copper Flex I Size: 1/0 AWG
  • Conductor - Copper Flex I Size Range: 1/0 AWG
  • Conductor - Copper Flex K Size: 1/0 AWG
  • Conductor - Copper Flex K Size Range: 1/0 AWG
  • Conductor - Copper Flex M Size: 1/0 AWG
  • Conductor - Copper Str Size: 1/0
  • Conductor - Copper Str Size Range: 1/0 AWG
  • Conductor - CopperWeld Str Size: 1/0 F AWG;1/0 G AWG;1/0 J AWG;1/0 K AWG
  • Conductor - Material: Copper
  • Country of Origin: US
  • Dimension - B Length fraction: 1-1/2 in
  • Dimension - B Length inch: 1.50 in
  • Dimension - Bolt Hole Size inch: 0.27 in
  • Dimension - Bolt Size fraction: 1/4
  • Dimension - Hole Size inch: 0.27 in
  • Dimension - Hole Size mm: 7 mm
  • Dimension - L Length Overall mm: 81 mm
  • Dimension - Length Overall inch: 3.20 in
  • Dimension - Length Side B inch: 3.20 in
  • Dimension - N inch: 0.31 in
  • Dimension - Outside Diameter inch: 0.56 in
  • Dimension - Pad Width inch: 0.83 in
  • Dimension - Strip Length inch: 1-9/16
  • Dimension - Z inch: 0.34 in
  • Each - Height: 0.56 in
  • Each - Length: 3.2 in
  • Each - Width: 0.83 in
  • Feature - Barrel Style: Chamfered;Skived
  • Feature - Barrel Type: Long
  • Physical Attribute - Number of Holes: 2
  • Physical Attribute - Tongue Angle: Straight
  • Plated: Y
  • Plating Type: Tin
  • Product Type: Compression
  • Rating - KVA: 35 kV
  • Standards - RoHS Compliance Status: CM
  • Trade Name: HYLUG™
  • Sub Brand: HYLUG

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

GTiN 00781810228395
Type Long Barrel, Skive
Material Copper
Stud Size 0.25 in
Number of Holes 2 Hole
Applications For Flex Conductors
Cable Size 1/0 AWG, 1/0 AWG Weld, 275/24, 50 SQ-MM For Class 5 Conductor
Family Brand Name Burndy
Sub Brand HYLUG
Product UPC 78181022839
Length 3.2 Inch
Hole Size 7 mm
Conductor Size 1/0 AWG
Connection Type Terminal
Plating Type Tin
Conductor Material Copper
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Pink
Width 0.83 in
Height 0.56 Inch
Country of Origin USA
Overall Length 3.20 in
