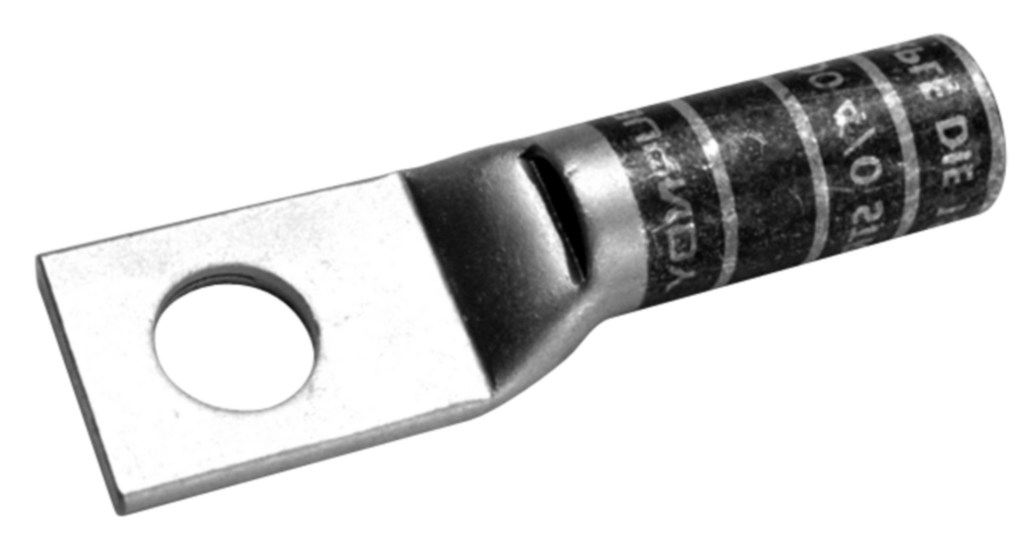

BUR YAZV2CTC14FX CULUG- 2FLEX-LONG
Product image thumbnail 0
Product image thumbnail 1
$9.65/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YAZV2CTC14FX
North Coast Part # 820141

Features

  • UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Finish: Electro-Tin Plated, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Die Index: 10, Wire Strip Length: 1-7/16 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W2CVT, W2CRT, X2CRT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W2CVT, W2CRT, X2CRT Die, (2), Y35, Y39, Y750, PAT750 Tool, U2CRT Die, (2), Y46 Tool, U2CRT Die With PUADP-1 Adapter, (2), Color Code: Brown, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), MY29-3, MY29-11, MRC840 Tool, (2), Y1MRTC Tool, (4), Conductor Type: Flexible

Specifications

  • Buy American Compliant: Yes
  • Conductor - Copper DLO Size: 3 (125/#24) DLO;2 (150/#24) DLO
  • Conductor - Copper DLO Size Range: 2 AWG
  • Conductor - Copper Flex G Size: 2 AWG
  • Conductor - Copper Flex G Size Range: 2 AWG
  • Conductor - Copper Flex H Size: 2 AWG
  • Conductor - Copper Flex H Size Range: 2 AWG
  • Conductor - Copper Flex I Size: 2 AWG
  • Conductor - Copper Flex I Size Range: 2 AWG
  • Conductor - Copper Flex K Size: 2 AWG
  • Conductor - Copper Flex K Size Range: 2 AWG
  • Conductor - Copper Flex M Size: 2 AWG
  • Conductor - Copper Flex M Size Range: 2 AWG
  • Conductor - Copper Str Size: 2 AWG
  • Conductor - Copper Str Size Range: 2 AWG
  • Conductor - CopperWeld Str Size: 2 A AWG;2 F AWG;2 G AWG;2 J AWG;2 K AWG;2 N AWG;2 P AWG
  • Conductor - CopperWeld Str Size Range: 2 A AWG-2 P AWG
  • Conductor - Material: Copper
  • Country of Origin: US
  • Dimension - B Length fraction: 1-3/8 in
  • Dimension - B Length inch: 1.38 in
  • Dimension - Bolt Hole Size inch: 0.27 in
  • Dimension - Hole Size inch: 0.27 in
  • Dimension - Hole Size mm: 7 mm
  • Dimension - L Length Overall mm: 60 mm
  • Dimension - Length Overall inch: 2.37 in
  • Dimension - N inch: 0.31 in
  • Dimension - Outside Diameter inch: 0.46 in
  • Dimension - Pad Width inch: 0.68 in
  • Dimension - Strip Length inch: 1-7/16
  • Dimension - Stud Size inch: 1/4
  • Dimension - Z inch: 0.33 in
  • Each - Height: 0.46 in
  • Each - Length: 2.37 in
  • Each - Width: 0.68 in
  • Feature - Barrel Style: Skived
  • Feature - Barrel Type: Long
  • Industry Standard(s): UL 486A-486B
  • Physical Attribute - Number of Holes: 1
  • Physical Attribute - Tongue Angle: Straight
  • Plated: Y
  • Plating Type: Tin
  • Product Type: Compression
  • Rating - KVA: 35 kV
  • Standards - RoHS Compliance Status: CM
  • Trade Name: HYLUG™
  • Application: For Flex Conductors
  • Special Features: Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Finish: Electro-Tin Plated, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Die Index: 10, Wire Strip Length: 1-7/16 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W2CVT, W2CRT, X2CRT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W2CVT, W2CRT, X2CRT Die, (2), Y35, Y39, Y750, PAT750 Tool, U2CRT Die, (2), Y46 Tool, U2CRT Die With PUADP-1 Adapter, (2), Color Code: Brown, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), MY29-3, MY29-11, MRC840 Tool, (2), Y1MRTC Tool, (4), Conductor Type: Flexible
  • Standard: UL 486A-486B
  • Sub Brand: HYLUG
  • Type: Long Barrel, Skive

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

GTiN 00781810241257
Type Long Barrel, Skive
Material Copper
Stud Size 0.25 in
Number of Holes 1 Hole
Applications For Flex Conductors
Cable Size 2 AWG, 2 AWG Weld, 125/24 - 150/24, 35 SQ-MM For Class 5 Conductor
Family Brand Name Burndy
Sub Brand HYLUG
Product UPC 78181024125
Length 2.37 Inch
Hole Size 7 mm
Conductor Size 2 AWG
Connection Type Terminal
Plating Type Tin
Conductor Material Copper
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Brown
Width 0.68 in
Height 0.46 Inch
Country of Origin USA
Overall Length 2.37 in
