BUR YAZV4C2TC14FX CULUG- 4 FLEX-LON
Product image thumbnail 0
Product image thumbnail 1
$12.24/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YAZV4C2TC14FX
North Coast Part # 342285

Features

  • UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Tongue Angle: Straight, Finish: Electro-Tin Plated, Wire Strip Length: 1-5/16 IN, Die Index: 8, Temperature Rating: 90 DEG C, Color Code: Gray, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W4CVT, W4CRT, X4CRT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W4CVT, W4CRT, X4CRT Die, (2), Y35, Y39, Y750, PAT750 Tool, U4CRT Die, (2), Y46 Tool, U4CRT Die With PUADP-1 Adapter, (2), Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), MY29-11 Tool, (2), Y1MRTC Tool, (4), Conductor Type: Flexible

Specifications

  • Conductor - Copper DLO Size: 5 (91/#24) DLO;4 (105/#24) DLO
  • Conductor - Copper DLO Size Range: 4 AWG
  • Conductor - Copper Flex G Size: 4 AWG
  • Conductor - Copper Flex G Size Range: 4 AWG
  • Conductor - Copper Flex H Size: 4 AWG
  • Conductor - Copper Flex H Size Range: 4 AWG
  • Conductor - Copper Flex I Size: 4 AWG
  • Conductor - Copper Flex I Size Range: 4 AWG
  • Conductor - Copper Flex K Size: 4 AWG
  • Conductor - Copper Flex K Size Range: 4 AWG
  • Conductor - Copper Flex M Size: 4 AWG
  • Conductor - Copper Flex M Size Range: 4 AWG
  • Conductor - Copper Str Size: 4 AWG
  • Conductor - Copper Str Size Range: 4 AWG
  • Conductor - CopperWeld Str Size: 4 A AWG;4 D AWG;4 N AWG;4 P AWG
  • Conductor - CopperWeld Str Size Range: 4 A AWG-4 P AWG
  • Conductor - Material: Copper
  • Country of Origin: US
  • Dimension - B Length fraction: 1-1/4 in
  • Dimension - B Length inch: 1.25 in
  • Dimension - Bolt Hole Size inch: 0.27 in
  • Dimension - Hole Size inch: 0.27 in
  • Dimension - Hole Size mm: 7 mm
  • Dimension - L Length Overall mm: 72 mm
  • Dimension - Length Overall inch: 2.82 in
  • Dimension - Length Side B inch: 2.83 in
  • Dimension - N inch: 0.31 in
  • Dimension - Outside Diameter inch: 0.38 in
  • Dimension - Pad Width inch: 0.55 in
  • Dimension - Strip Length inch: 1-5/16
  • Dimension - Z inch: 0.33 in
  • Each - Height: 0.38 in
  • Each - Length: 2.82 in
  • Each - Width: 0.55 in
  • Feature - Barrel Style: Skived
  • Feature - Barrel Type: Long
  • Physical Attribute - Number of Holes: 2
  • Physical Attribute - Tongue Angle: Straight
  • Plated: Y
  • Plating Type: Tin
  • Product Type: Compression
  • Rating - KVA: 35 kV
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: CM
  • Trade Name: HYLUG™
  • Sub Brand: HYLUG

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181022819

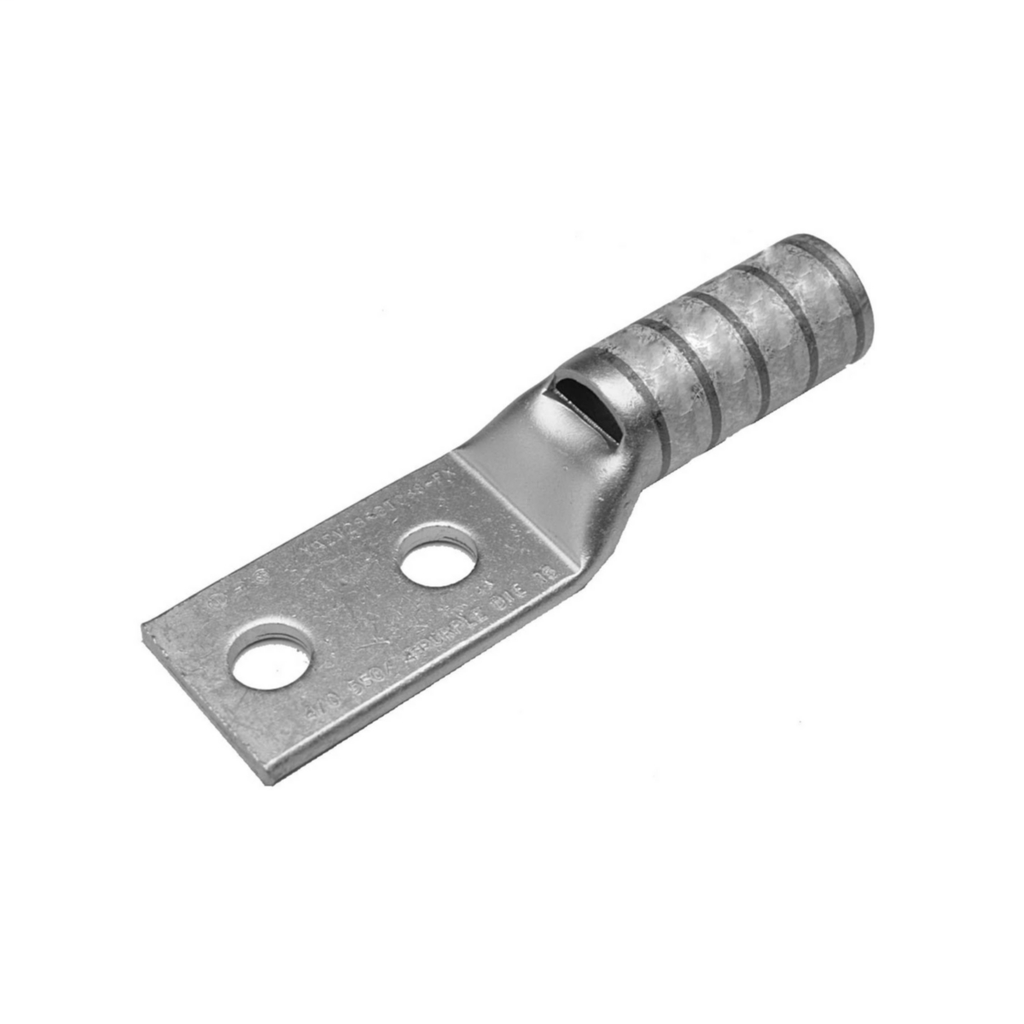

Item Long Description Copper Compression Lug, 2 Hole w/ Inspection Window, 4 Flex, 1/4" Stud, 5/8" Stud Hole Spacing, Long Barrel, Tin Plated.
GTiN 00781810228197
Type Long Barrel, Skive
Material Copper
Stud Size 0.25 in
Number of Holes 2 Hole
Applications For Flex Conductors
Cable Size 4 AWG, 4 AWG Weld, 91/24 - 105/24
Family Brand Name Burndy
Sub Brand HYLUG
Length 2.82 in
Hole Size 7 mm
Conductor Size 4 AWG
Connection Type Terminal
Plating Type Tin
Conductor Material Copper
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Gray
