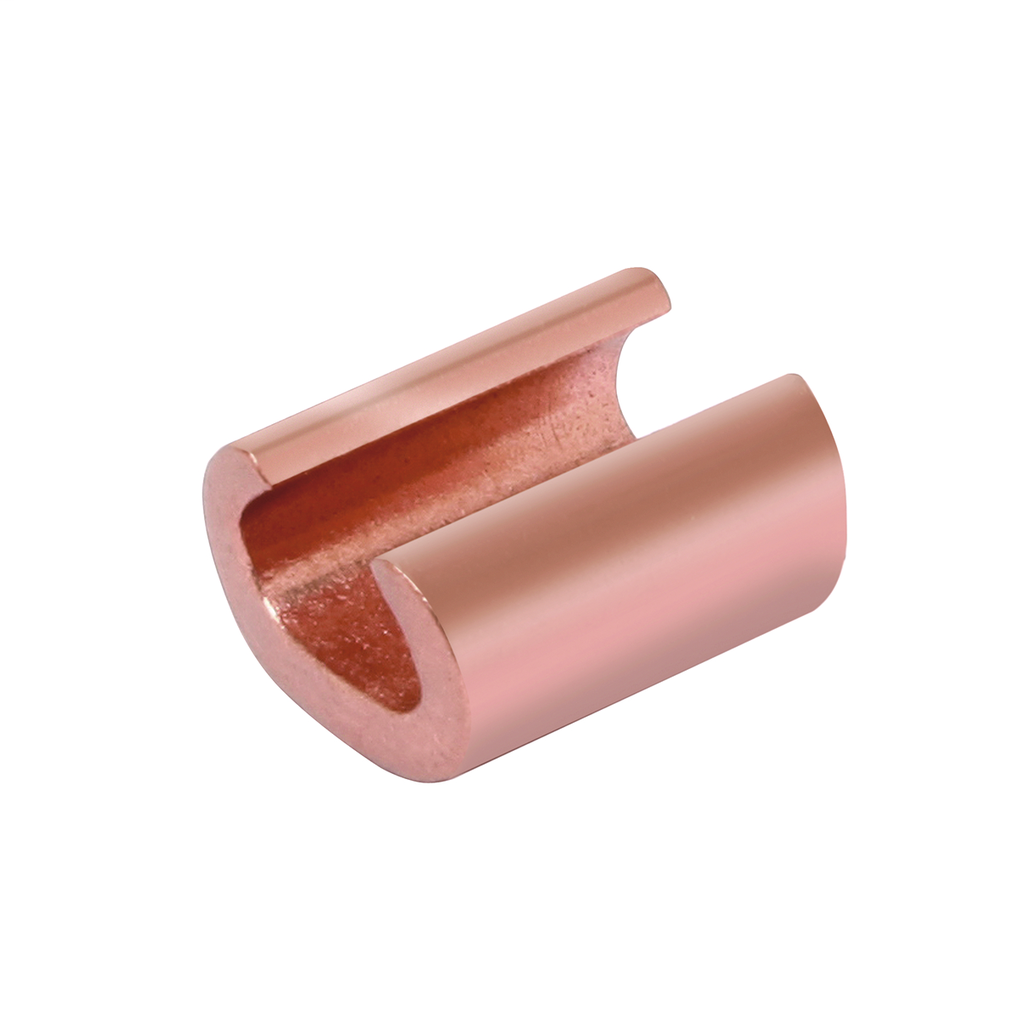

BUR YC26C2 1/0-2/0 TO 8-2 CU FIG C
Product image thumbnail 0
Product image thumbnail 1
$16.89/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YC26C2
North Coast Part # 67761

Specifications

General

  • Application: For Making Tap Or Parallel Copper Connections
  • Die Index: E or O
  • Material: Copper
  • Plated: N
  • Plating Type: Unplated
  • Sub Brand: CRIMPIT
  • Trade Name: CRIMPITâ„¢
  • Type: YC-C Series
  • UPC: 781810114803
  • UPC 12 Digit: 7818101148033

Dimensions

  • Dimension - Height inch: 1.30 in
  • Dimension - L Length Overall mm: 23 mm
  • Dimension - Length Overall inch: 0.92 in

Conductor Related

  • Conductor - Copper Str Run Range: 1/0 -2/0 AWG
  • Conductor - Copper Str Tap Range: 8 Sol. - 2 Str

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 1

Industry Standard(s)

  • UL 486A
  • UL486B

Standards - Industry Standards Met

  • UL 486A
  • UL486B

Overview

UPC 78181011480
GTiN 00781810114803
Finish Copper Plated
Size 11/12 IN Length
Type YC-C Series
Material Copper
Conductor Size Run: 2/0 AWG, 1/0 AWG
Applications For Making Tap Or Parallel Copper Connections
Temperature Rating 90 C
Family Brand Name Burndy
Tap Size 2, 4, 6, 8 AWG
Sub Brand CRIMPIT
Length 0.92 in
Height 1.30 in
Plating Type Unplated
Plated? No
CSA No
