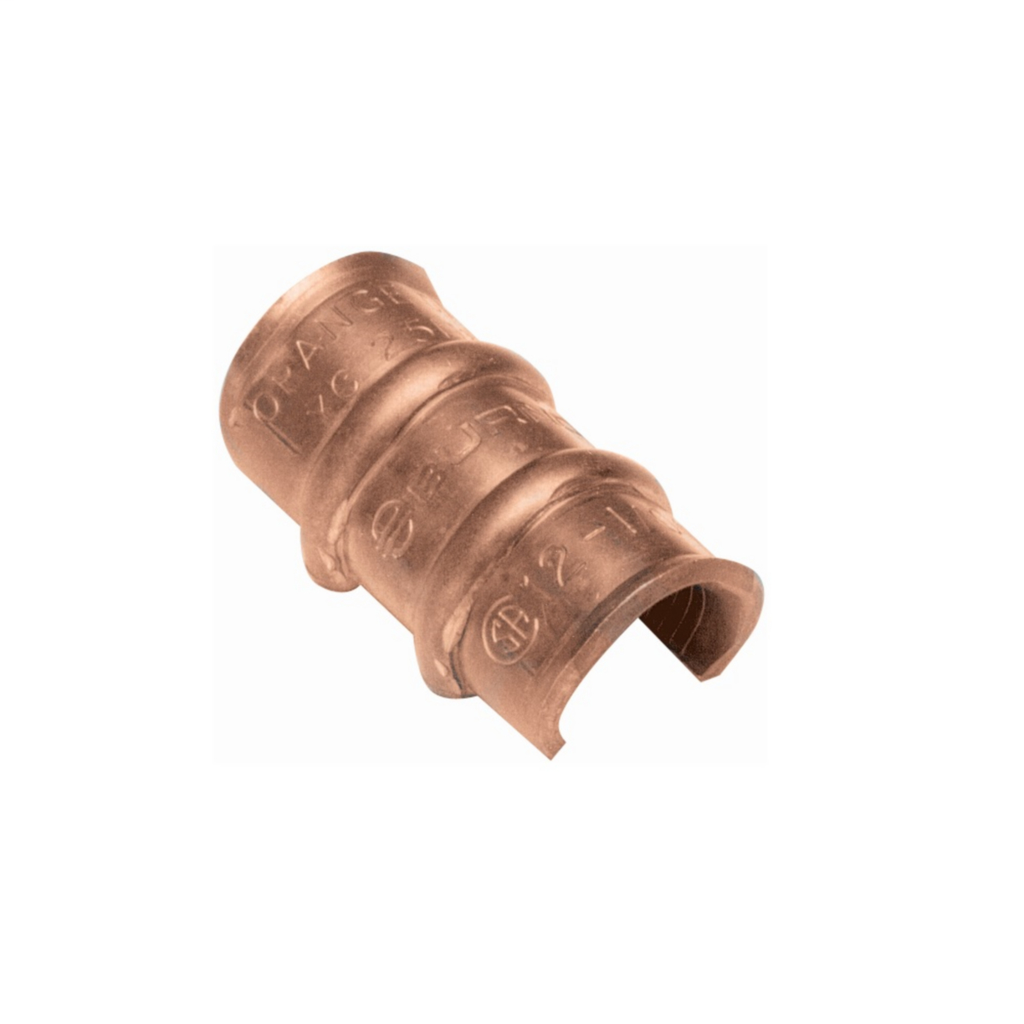

BUR YC26L12 THIN C-TAP 1/0RUN 2TAP
$15.44/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YC26L12
North Coast Part # 14325

Specifications

General

  • Application: For Making Copper Tap And Parallel Connections
  • Color Code: Purple
  • Connector Type: C-Tap
  • Die Index: 15
  • Material: Copper
  • Plated: Y
  • Plating Type: Tin - Bright
  • Sub Brand: CRIMPIT
  • Temperature Rating: 194
  • Type: YC-L Series
  • UPC: 781810040188
  • UPC 12 Digit: 7818100401888

Dimensions

  • Dimension - B Length fraction: 11/16 in
  • Dimension - B Length inch: 0.69 in
  • Dimension - D inch: 1.75 in
  • Dimension - Pad Width inch: 0.43 in
  • Dimension - Strip Length inch: 1-13/16

Electrical Ratings

  • Rating - KVA: 35 kV
  • Rating - Minimum Voltage: 600
  • Voltage - Maximum: 35000

Conductor Related

  • Conductor - Copper Str Run: 1 AWG;1/0 ;2/0 AWG
  • Conductor - Copper Str Run Range: 1 AWG-2/0 AWG
  • Conductor - Copper Str Tap: 12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
  • Conductor - Copper Str Tap Range: 12 AWG-2 AWG

Certifications and Compliance

  • Certification - CSA Approved: Yes
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): UL467
  • Standards - Industry Standards Met: UL467
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 1

Overview

UPC 78181004018
GTiN 00781810040188
Size 0.69 IN Dimension B X 0.53 IN Dimension C X 1.75 IN Dimension D X 09 IN Dimension T
Type YC-L Series
Material Copper
Conductor Size Run: 2/0, 1, 1/0 AWG
Applications For Making Copper Tap And Parallel Connections
Temperature Rating 194
Family Brand Name Burndy
Tap Size 12, 10, 8, 6, 5, 4, 3, 2, 1 AWG
Sub Brand CRIMPIT
Connection Type C-Tap
Plating Type Tin - Bright
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Purple
