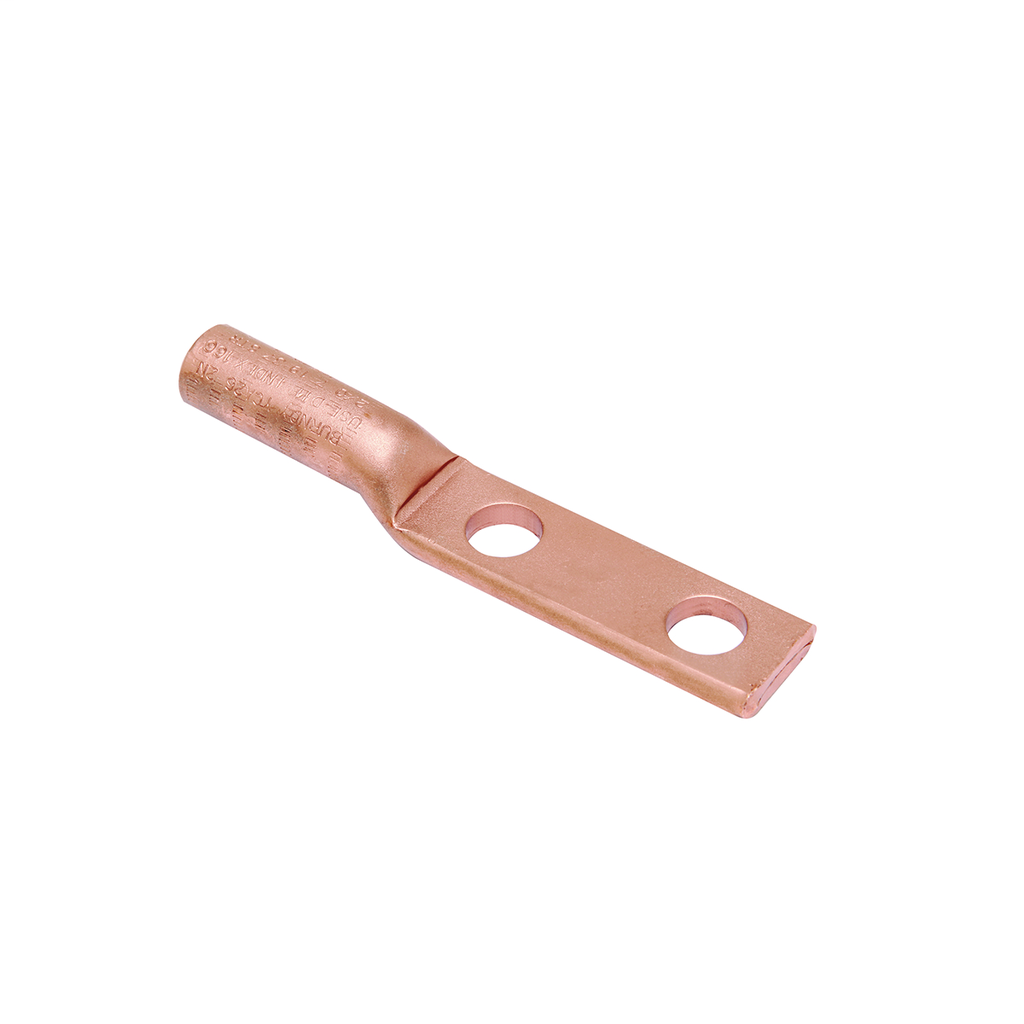

BUR YCA282N 4/0 CU 2 HOLE LUG NEMA
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$112.08/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YCA282N
North Coast Part # 547710

Features

  • NEMA standard mounting holes, Made of pure copper, Installed with same die as equivalent full-tension jumper loop and repair sleeves

Specifications

  • Buy American Compliant: Yes
  • Conductor - Copper Str Size: 4/0 AWG
  • Country of Origin: US
  • Dimension - B Length fraction: 1-5/8 in
  • Dimension - B Length inch: 1.62 in
  • Dimension - Hole Size fraction: 5/9
  • Dimension - Hole Size inch: 0.56 in
  • Dimension - Hole Size mm: 14 mm
  • Dimension - L Length Overall mm: 136 mm
  • Dimension - Length Overall inch: 5.35 in
  • Dimension - N inch: 0.63 in
  • Dimension - Outside Diameter inch: 0.89 in
  • Dimension - Pad Width inch: 1.22 in
  • Dimension - Strip Length inch: 1 11/16
  • Dimension - Stud Size inch: 33/64
  • Each - Height: 0.89 in
  • Each - Length: 5.35 in
  • Each - Width: 1.22 in
  • Oxide Inhibitor Type: Penetrox A
  • Physical Attribute - Number of Crimps Required: 1
  • Physical Attribute - Number of Holes: 2
  • Physical Attribute - Tongue Angle: Straight
  • Physical Attribute - Tongue Type: Standard
  • Plated: N
  • Plating Type: Unplated
  • Prefilled Oxide Inhibitor: Y
  • Product Type: Compression
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: CM
  • Trade Name: HYLUG™
  • Application: Designed for terminating copper conductors to switch pads and other substation or switch yard apparatus
  • Special Features: Features: NEMA standard mounting holes, Made of pure copper, Installed with same die as equivalent full-tension jumper loop and repair sleeves
  • Sub Brand: TERMINALS, HYLUG
  • Type: YCA-2N
  • IGS 3D Model Asset Reference URL 2: https://hubbellcdn.com/igs/YCA282N_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 1: https://hubbellcdn.com/PDF3DFile/YCA282N_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 3: https://hubbellcdn.com/step3dfile/YCA282N_MODEL-STEP.zip

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181001478
Item Long Description Copper compression lug designed for terminating copper conductors to switch pads and other substation switch yard apparatus, Die Index: 168.
GTiN 00781810014783
Type YCA-2N
Material Copper
Number of Holes 2 Hole
Applications Designed for terminating copper conductors to switch pads and other substation or switch yard apparatus
Family Brand Name Burndy
Sub Brand Terminals, HYLUG
Length 5.35 in
Hole Size 14 mm
Conductor Size 4/0 AWG
Connection Type Terminal
Plating Type Unplated
Plated? No
CSA No
