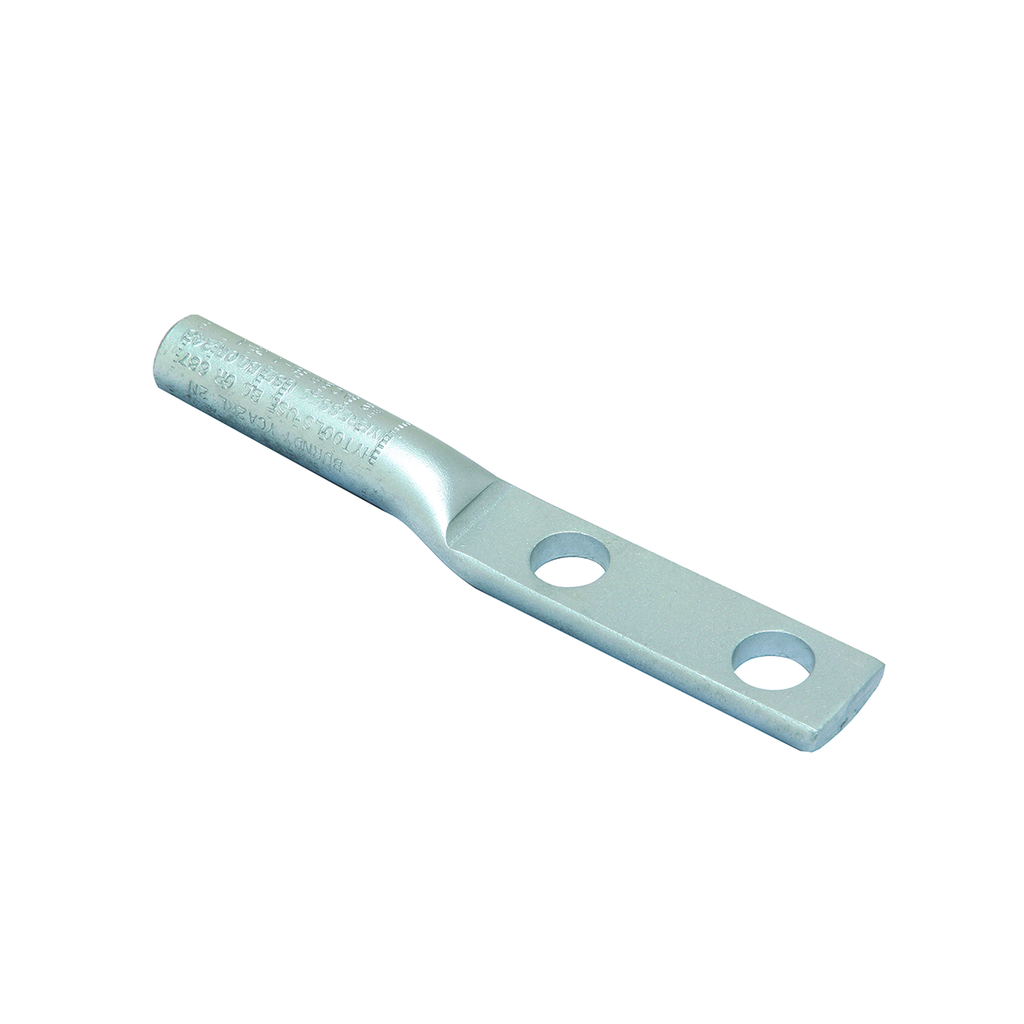

BUR YCA321R2N 336 AL 2 HOLE LUG NEM
Product image thumbnail 0
Product image thumbnail 1
$105.97/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YCA321R2N
North Coast Part # 598775

Features

Features:Aluminum compression HYLUG , NEMA standard mounting holes,Installed with same dies as equivalent full-tension sleeves

Specifications

General

  • Application: Used for terminating jumper loops and equipment taps at switchpads and other substation apparatus, or to YDW-R deadends.
  • Connector Type: Terminal
  • Die Index: 321
  • Item Type: 3B
  • Material: Aluminum
  • Physical Attribute - Pad Configuration: 2 Hole NEMA
  • Plated: N
  • Plating Type: Unplated
  • Prefilled Oxide Inhibitor: Y
  • Sub Brand: COMPRESSION TERMINAL
  • Type: YCA-R-N
  • UPC: 781810810736
  • UPC 12 Digit: 7818108107366

Dimensions

  • Dimension - B Length inch: 2.68 in
  • Dimension - Bolt Hole Size inch: 0.5 in
  • Dimension - E Spacing between Holes fraction: 1-3/4 in
  • Dimension - L Length Overall mm: 178 mm
  • Dimension - Length Overall inch: 7 in
  • Dimension - Outside Diameter inch: 1.12 in
  • Dimension - Pad Width inch: 1.54 in

Conductor Related

  • Conductor - ACSR Str Size: 336.4 (18/1) Merlin kcmil
  • Conductor - ACSR Str Size Range: 336.4 (18/1) Merlin kcmil
  • Conductor - AL Str Size: 336 kcmil
  • Conductor - AL Str Size Range: 336.4 -350 Kcmil

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: No

Overview

UPC 78181081073
GTiN 00781810810736
Type YCA-R-N
Material Aluminum
Number of Holes 2
Applications Used for terminating jumper loops and equipment taps at switchpads and other substation apparatus, or to YDW-R deadends.
Family Brand Name Burndy
Sub Brand Compression Terminal
Length 7 in
Connection Type Terminal
Plating Type Unplated
Plated? No
CSA No
