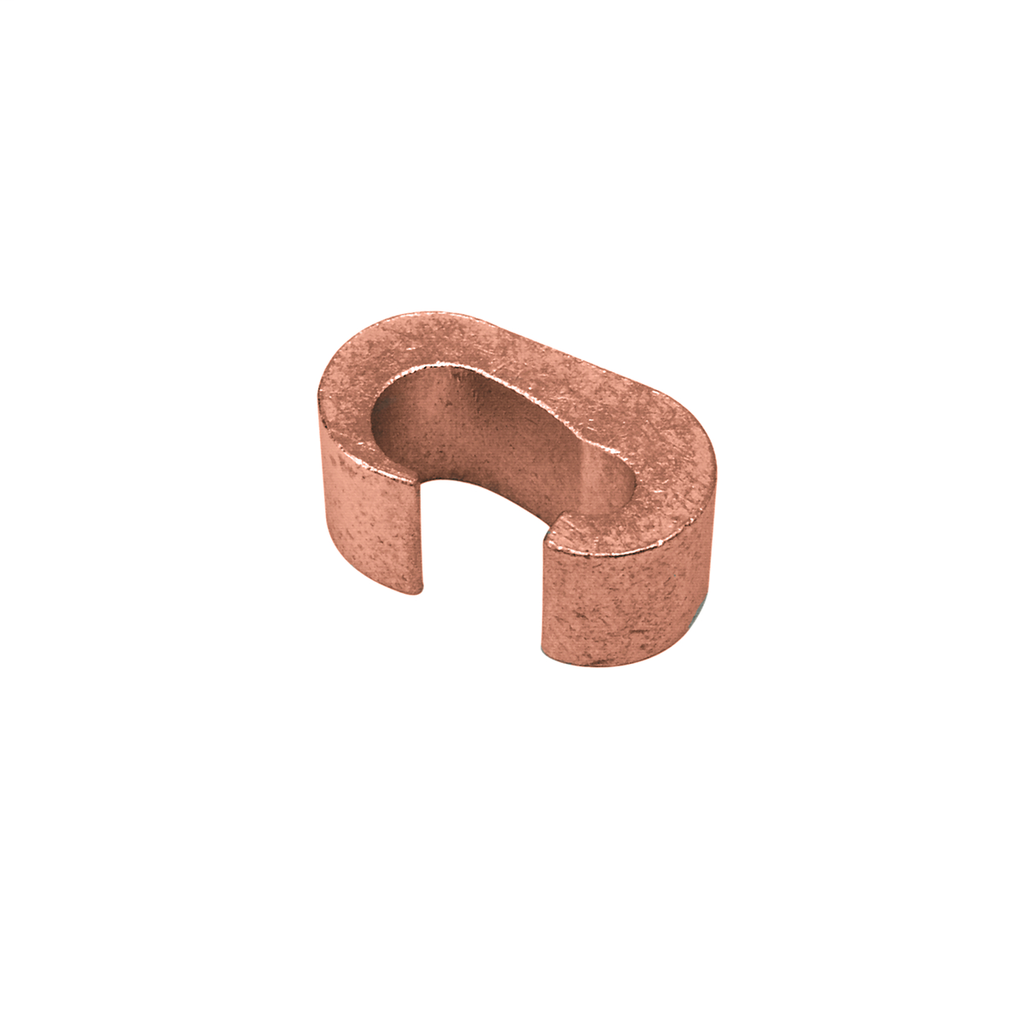

BUR YCHC29TC2 250-2 TO 2-6 CU FIG C
Product image thumbnail 0
Product image thumbnail 1
$13.09/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YCHC29TC2
North Coast Part # 213100

Features

  • Wide Range Of Run/Tap Combinations Including Class B Code I And Locomotive Flexible Conductor Combinations, All (B/B, B/I, I/I) Combinations Are Recommended: Each Connector Accommodates Many Cable Combinations, Allowing Maximum Flexibility For The Design And Installation Of A System, Color-Coded On The Connector That Matches The Die: Provides Matched System For Fast And Easy Installation, Each Connector Has A Recommended Insulating Cover Available, Flame Retardant Type CF-FR Covers Meet Oxygen Index 28 And UL94 V-O Requirements: A Complete Insulated UL Listed Installation Is Provided, Die Index Embossed On Connector After Completion Of Crimp: Permanent Inspectability Of Installed Connector Is Insure Consistently Reliable And Dependable Connections, Use PUADP-1 Adaptor With U Dies In Y46, Color Code: Red, Flame Retardant Cover: CFD-FR, Die Index: 997 Element A, Shape: C, Tools, Die Set Catalog Number, And (number Of Crimps): Y750 Tool, U251 Die, (1), Y46 Tool, U251 Die With PUADP-1 Adapter, (1), Wire Strip Length: 1 IN

Specifications

  • Conductor - Copper Flex I Run Range: 2 AWG-4/0 AWG
  • Conductor - Copper Flex K Run Range: 2 AWG-4/0 AWG
  • Conductor - Copper Flex M Run Range: 2 AWG-4/0 AWG
  • Conductor - Copper Solid Tap: 6;5;4;3;2
  • Country of Origin: US
  • Dimension - Height inch: 1.78 in
  • Dimension - L Length Overall mm: 21 mm
  • Dimension - Length Overall inch: 0.81 in
  • Dimension - Strip Length inch: 1 in
  • Dimension - Width inch: 0.97 in
  • Each - Height: 1.72 in
  • Each - Length: 0.75 in
  • Each - Width: 0.93 in
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • Product Type: Compression
  • Rating - KVA: 35 kV
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: CM
  • Trade Name: CRIMPITâ„¢
  • Sub Brand: CRIMPIT

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181001375
Item Long Description Copper Compression C Tap, 250 kcmil- 2 AWG (Main), 2-6 AWG (Tap 1), 8-14 AWG (Tap 2), Tin Plated.
GTiN 00781810013755
Finish Tin Plated
Size 1.78 IN Height X 0.97 IN Width X 0.81 IN Length
Type YCHC Series
Material Copper
Conductor Size Run: 250-2 KCMIL, (4/0 - 2) AWG
Applications For general Purpose Applications
Temperature Rating 90 C
Family Brand Name Burndy
Tap Size 250-2 KCMIL, (4/0-2) AWG
Sub Brand CRIMPIT
Length 0.81 in
Width 0.97 in
Height 1.78 in
Connection Type C-Tap
Plating Type Tin - Electro Plated
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Red
