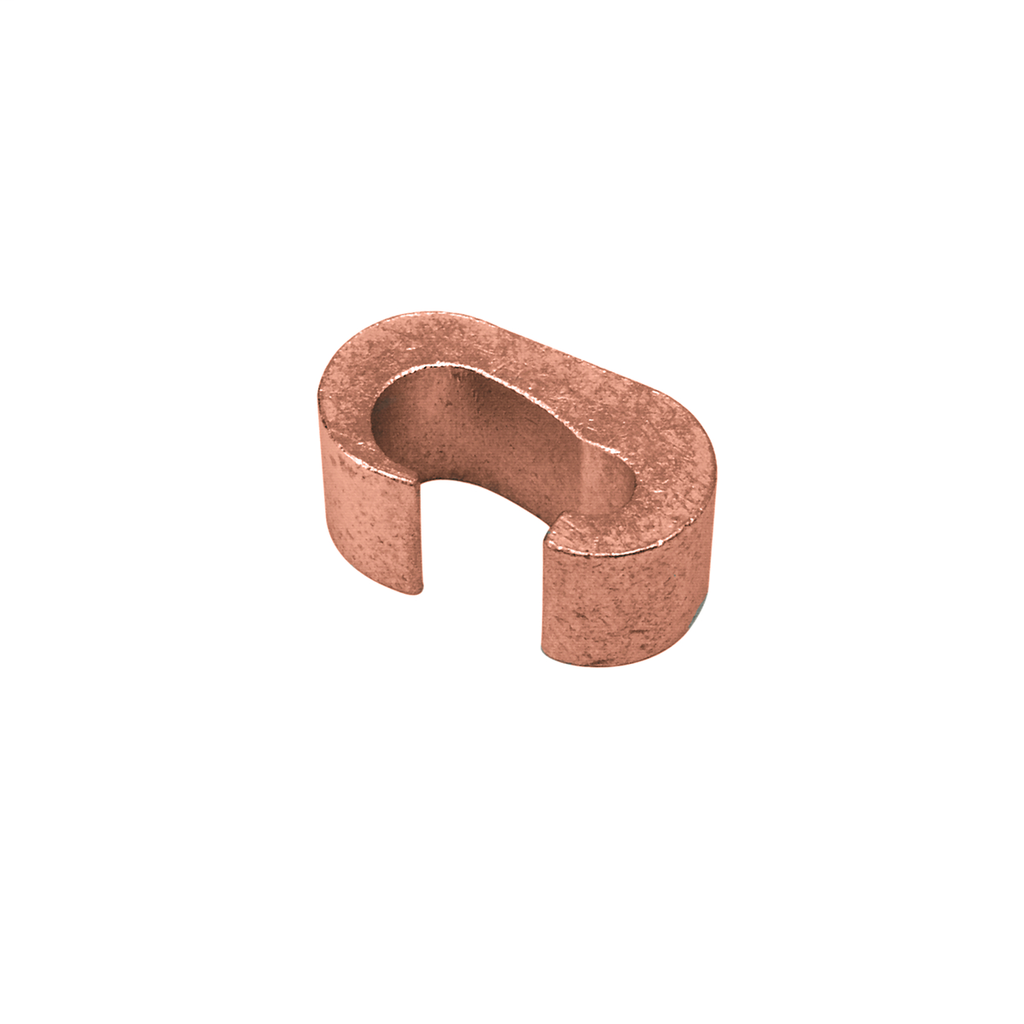

BUR YCHC29TC29 250-2 TO 250-2 CU FI
$20.77/ea
In Stock | 26 available at 3 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YCHC29TC29
North Coast Part # 71795

Specifications

General

  • Application: For general Purpose Applications
  • Color Code: Orange
  • Connector Type: C-Tap
  • Die Index: 997
  • Material: Copper
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • Sub Brand: CRIMPIT
  • Trade Name: CRIMPIT™
  • Type: YCHC Series
  • UPC: 781810013717
  • UPC 12 Digit: 7818100137177

Dimensions

  • Dimension - Height inch: 2.12 in
  • Dimension - L Length Overall mm: 24 mm
  • Dimension - Length Overall inch: 0.94 in
  • Dimension - Strip Length inch: 1 in
  • Dimension - Width inch: 0.98 in

Electrical Ratings

  • Rating - KVA: 35 kV
  • Rating - Minimum Voltage: 600
  • Voltage - Maximum: 35000

Conductor Related

  • Conductor - Copper Flex I Run Range: 2 AWG-4/0 AWG
  • Conductor - Copper Flex I Tap Range: 2 AWG-4/0 AWG
  • Conductor - Copper Flex K Run Range: 2 AWG-4/0 AWG
  • Conductor - Copper Flex K Tap Range: 2 AWG-4/0 AWG
  • Conductor - Copper Flex M Run Range: 2 AWG-4/0 AWG
  • Conductor - Copper Flex M Tap Range: 2 AWG-4/0 AWG
  • Conductor - Copper Str Run Range: 2 AWG-250 kcmil
  • Conductor - Copper Str Tap Range: 2 AWG-250 kcmil

Certifications and Compliance

  • Certification - CSA Approved: Yes
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 1

Categories

Overview

UPC 78181001371
GTiN 00781810013717
Finish Tin Plated
Size 2.12 IN Height X 0.98 IN Width X 0.94 IN Length
Type YCHC Series
Material Copper
Conductor Size Run: 4/0, 2/0, 3/0, 1, 1/0, 2 AWG, 250 KCMIL
Applications For general Purpose Applications
Temperature Rating 90 C
Family Brand Name Burndy
Tap Size 4/0, 2/0, 3/0, 1, 1/0, 2 AWG, 250 KCMIL
Sub Brand CRIMPIT
Length 0.94 in
Width 0.98 in
Height 2.12 in
Connection Type C-Tap
Plating Type Tin - Electro Plated
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Orange
