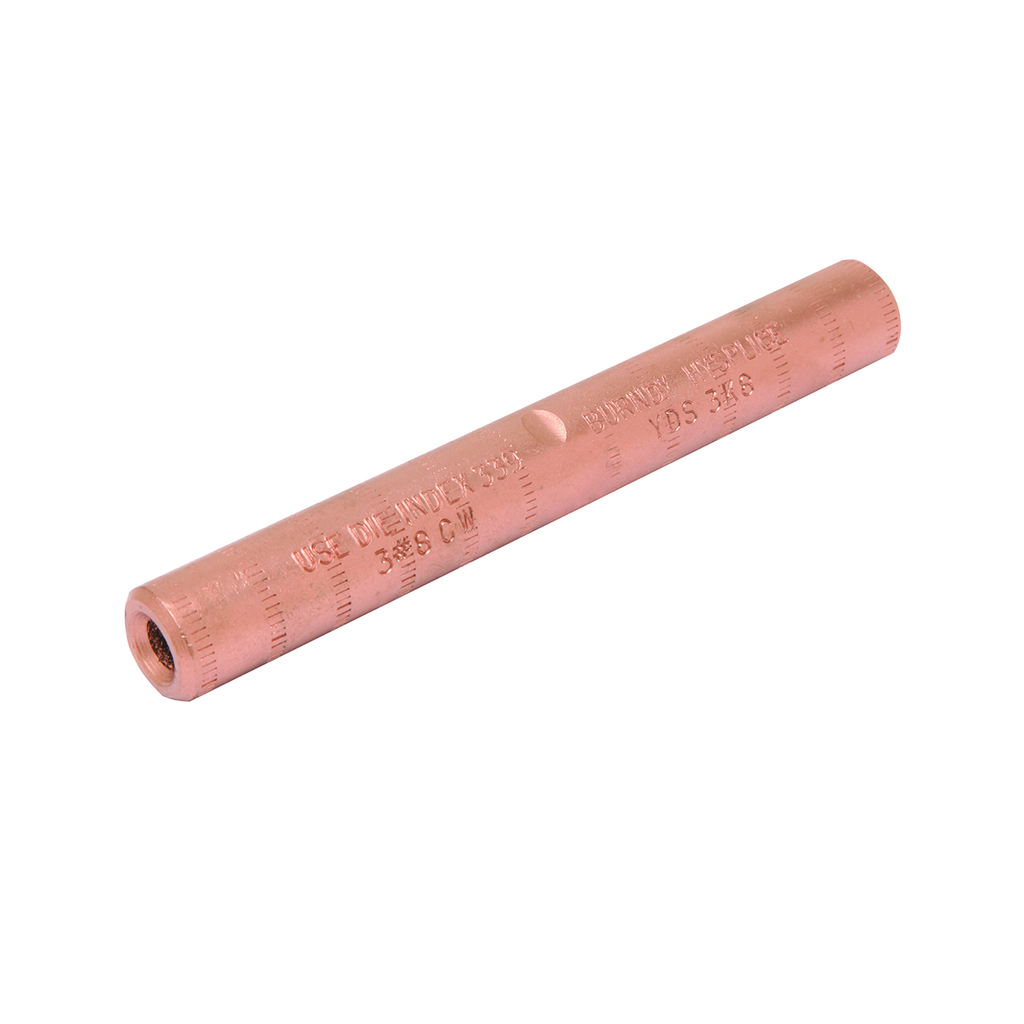

BUR YCS25 1/0 CU JUMPER
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$30.28/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YCS25
North Coast Part # 212718

Features

  • Loop HYSPLICE Connector Designed To Withstand Jumper Loop Tensile And Vibration Stresses, Made Of Pure Copper Tubing, Installed With Standard HYSPLICE Tools And Dies, Die Index: 165 Element A, Tools, Die Set Catalog Number, And (number Of Crimps): MD6, MD7 Tool, W165 Die, (3), Y750, Y35 Tool, U165 Die, (3), Y45 Tool, U165 Die With PT-6515 Adapter, (3), Y46 Tool, U165 Die With PUADP-1 Adapter, (3), Conductor Type: Copper

Specifications

  • Conductor - Copper Str Size: 1/0
  • Conductor - Copper Str Size Range: 1/0
  • Country of Origin: US
  • Dimension - B Length fraction: 1-8/17 in
  • Dimension - B Length inch: 1.47 in
  • Dimension - Inside Diameter inch: 0.41 in
  • Dimension - L Length Overall mm: 78 mm
  • Dimension - Length Overall inch: 3.09 in
  • Dimension - Outside Diameter inch: 0.63 in
  • Each - Height: 0.62 in
  • Each - Length: 3.09 in
  • Each - Width: 0.62 in
  • Plated: N
  • Plating Type: Unplated
  • Prefilled Oxide Inhibitor: N
  • Product Type: Compression
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: CM
  • Trade Name: HYSPLICE™
  • Sub Brand: HYSPLICE

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181001417
Item Long Description CU loop splice connector designed to withstand jumper loop tensile and vibration stresses up to 60 percentage RBS, -3/8 IN L.
GTiN 00781810014172
Family Brand Name Burndy
Length 3.09 in
Color Black
Type YCS
Material Copper
Conductor Size 1/0 AWG
Applications For Copper Conductors
Plating Type Unplated
Plated? No
CSA No
Sub Brand HYSPLICE
