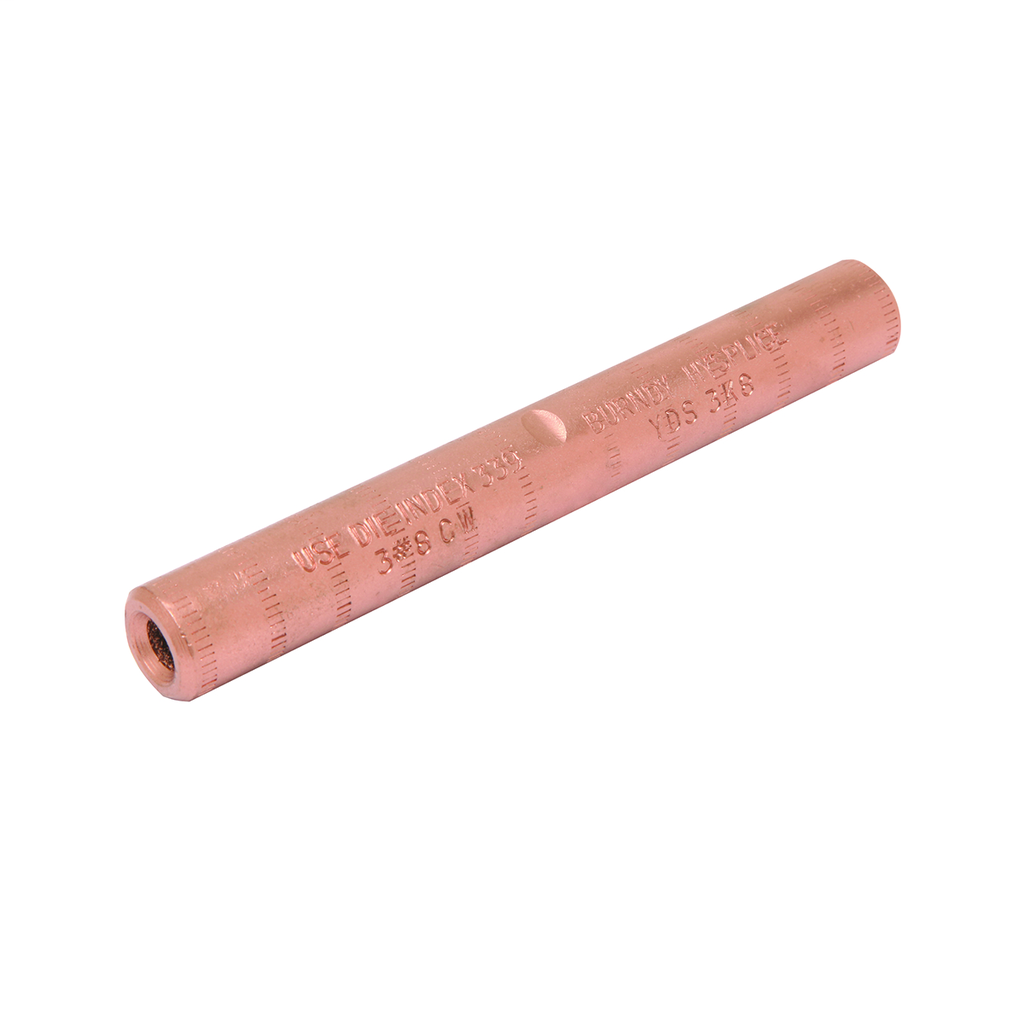

BUR YCS31 350 COPPER HYSPLICE
Product image thumbnail 0
Product image thumbnail 1
$93.14/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YCS31
North Coast Part # 212770

Specifications

General

  • Connector Type: Splice
  • Die Index: 267
  • Material: Copper
  • Plated: N
  • Plating Type: Unplated
  • Prefilled Oxide Inhibitor: N
  • Trade Name: HYSPLICE™
  • UPC: 781810014240
  • UPC 12 Digit: 7818100142400

Dimensions

  • Dimension - A Outside Diameter inch: 1.17 in
  • Dimension - B Length fraction: 2-16/39 in
  • Dimension - B Length inch: 2.41 in
  • Dimension - B Outside Diameter inch: 1.17 in
  • Dimension - L Length Overall mm: 138 mm
  • Dimension - Length BB inch: 2.41 in
  • Dimension - Length Overall inch: 5.44 in

Conductor Related

  • Conductor - Copper Str Size: 350 kcmil
  • Conductor - Copper Str Size Range: 350 kcmil

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: No

Logistics

  • Minimum Pack Quantity: 1

Overview

UPC 78181001424
GTiN 00781810014240
Family Brand Name Hubbell
Length 5.44 in
Color Black
Material Copper
Conductor Size 350 MCM
Plating Type Unplated
Plated? No
CSA No
