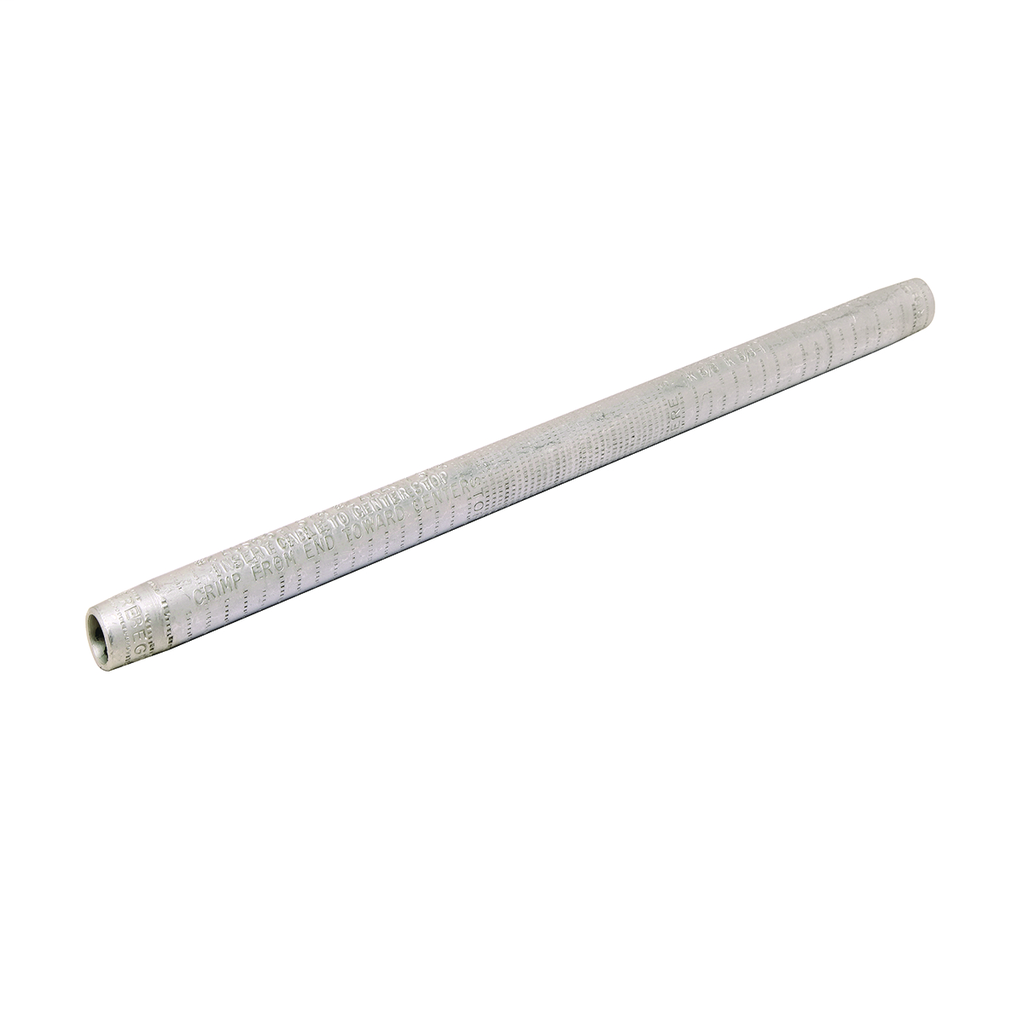

BUR YDS2CA 2 AL FULL TEN SPLICE,3.8
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$12.89/ea
Usually ships within 11 to 17 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YDS2CA
North Coast Part # 549599

Features

  • Full-Tension HYSPLICE Sleeve Made Of Aluminum Tubing With Staked-In Cable Stop, Sizes 1/0 And Larger Tapered For Gradual Transition Of Stress, Installed With HYSPLICE Tools And Dies, Pre-Filled With PENETROX Joint Compound And Capped, Die Index: 693 Element A, 6A EEI, Conductor Type: Aluminum, Tools, Die Set Catalog Number, And (number Of Crimps): MD7, MD6 Tool, W163 Die, (6), Y35, Y750 Tool, U163 Die, (2), Y45 Tool, U Die With Adapter PT-6515, Y46 Tool, U Die With Adapter PUADP-1

Specifications

  • Conductor - ACAR Str Size: 2 (7) AWG
  • Conductor - ACAR Str Size Range: 2 (7) AWG
  • Conductor - ACSR Cmpt Size: 2 AWG
  • Conductor - ACSR Cmpt Size Range: 2 AWG
  • Conductor - AL Str Size: 2 AWG
  • Conductor - AL Str Size Range: 2 AWG
  • Country of Origin: US
  • Dimension - B Length fraction: 1-22/25 in
  • Dimension - B Length inch: 1.88 in
  • Dimension - Inside Diameter inch: 1 in
  • Dimension - L Length Overall mm: 99 mm
  • Dimension - Length Overall inch: 3.88 in
  • Dimension - Outside Diameter inch: 0.5 in
  • Each - Height: 0.5 in
  • Each - Length: 3.88 in
  • Each - Width: 0.5 in
  • Plated: N
  • Plating Type: Unplated
  • Prefilled Oxide Inhibitor: Y
  • Product Type: Compression
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: CM
  • Trade Name: HYSPLICE™
  • Sub Brand: HYSPLICE
  • IGS 3D Model Asset Reference URL 2: https://hubbellcdn.com/igs/YDS2CA_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 1: https://hubbellcdn.com/PDF3DFile/YDS2CA_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 3: https://hubbellcdn.com/step3dfile/YDS2CA_MODEL-STEP.zip

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181001533
Item Long Description Full tension aluminum splice with staked in cable stop. ANSI C199.4 Class 1 (Full Tension),Conductor:2(7).
GTiN 00781810015339
Size 3-7/8 IN Length
Type YDS-A
Material Aluminum
Conductor Size 2/7 AWG Stranded
Applications All Aluminum Compressed and Compact Conductors
Family Brand Name Burndy
Contact Material Aluminum
Overall Length 3-7/8 in
Sub Brand Hysplice
Length 3.88 in
Color Black
Plating Type Unplated
Plated? No
CSA No
