BUR YDS4W 4 SLD CU FULL TEN SPLICE
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$10.19/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YDS4W
North Coast Part # 826277

Features

  • YDS-W Is Designed To Develop Full Rated Breaking Strength Of Hard Drawn And Medium Hard Drawn Solid Copper Conductor, Made Of Pure Copper Tubing, Installed With Standard Tooling, Die Index: 162 Element A, Conductor Type: Solid Copper, Tools, Die Set Catalog Number, And (number Of Crimps): MD7, MD6 Tool, W162 Die, (4), Y35, Y750 Tool, U162 Die, (1), Y45 Tool, U Die With Adapter PT-6515, Y46 Tool, U Die With Adapter PUADP-1

Specifications

  • Buy American Compliant: Yes
  • Conductor - Copper Solid Size: 4 AWG
  • Conductor - Copper Str Size: 6 AWG - 3 AWG
  • Country of Origin: US
  • Dimension - B Length inch: 1.15 in

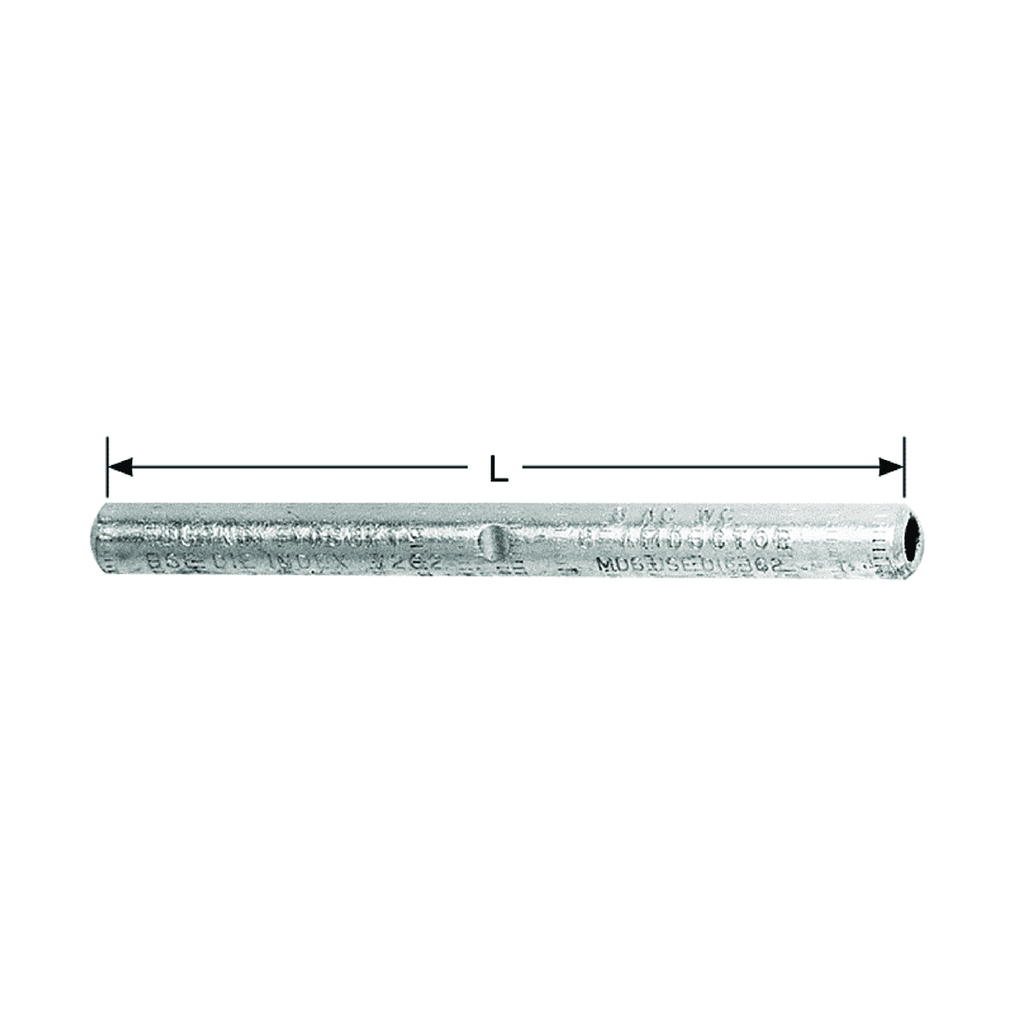

  • Dimension - L Length Overall mm: 65 mm
  • Dimension - Length Overall inch: 2.55 in
  • Dimension - Outside Diameter inch: 0.38 in
  • Each - Height: 0.38 in
  • Each - Length: 2.55 in
  • Each - Width: 0.38 in
  • Industry Standard(s): RUS
  • Physical Attribute - Number of Crimps Required: 4
  • Plated: N
  • Plating Type: Unplated
  • Prefilled Oxide Inhibitor: N
  • Product Type: Compression
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: RUS
  • Standards - RoHS Compliance Status: CM
  • Trade Name: HYSPLICE™
  • Application: For Solid Copper Conductors
  • Special Features: Features: YDS-W Is Designed To Develop Full Rated Breaking Strength Of Hard Drawn And Medium Hard Drawn Solid Copper Conductor, Made Of Pure Copper Tubing, Installed With Standard Tooling, Die Index: 162 Element A, Conductor Type: Solid Copper, Tools, Die Set Catalog Number, And (number Of Crimps): MD7, MD6 Tool, W162 Die, (4), Y35, Y750 Tool, U162 Die, (1), Y45 Tool, U Die With Adapter PT-6515, Y46 Tool, U Die With Adapter PUADP-1
  • Standard: RUS
  • Sub Brand: HYSPLICE
  • Type: YDS
  • IGS 3D Model Asset Reference URL 1: https://hubbellcdn.com/igs/YDS4W_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 2: https://hubbellcdn.com/PDF3DFile/YDS4W_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 3: https://hubbellcdn.com/step3dfile/YDS4W_MODEL-STEP.zip

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181082094
Item Long Description HYSPLICE Single Sleeve Full Tension Splice, Accommodates Wire: #4 Cu Sol (Hard, Medium, or Soft Drawn), Die Index: 162, Made of copper tubing, Installed with standard tools and dies.
GTiN 00781810820940
Finish Tin Plated
Size 2-5/8 IN Overall Length
Type YDS
Material Copper
Conductor Size 4 AWG
Applications Solid Copper Conductors
Connection Type End
Family Brand Name Burndy
Contact Material Copper
Overall Length 2-5/8 in
Sub Brand Hysplice
Length 2.55 in
Color Black
Plating Type Unplated
Plated? No
CSA No
