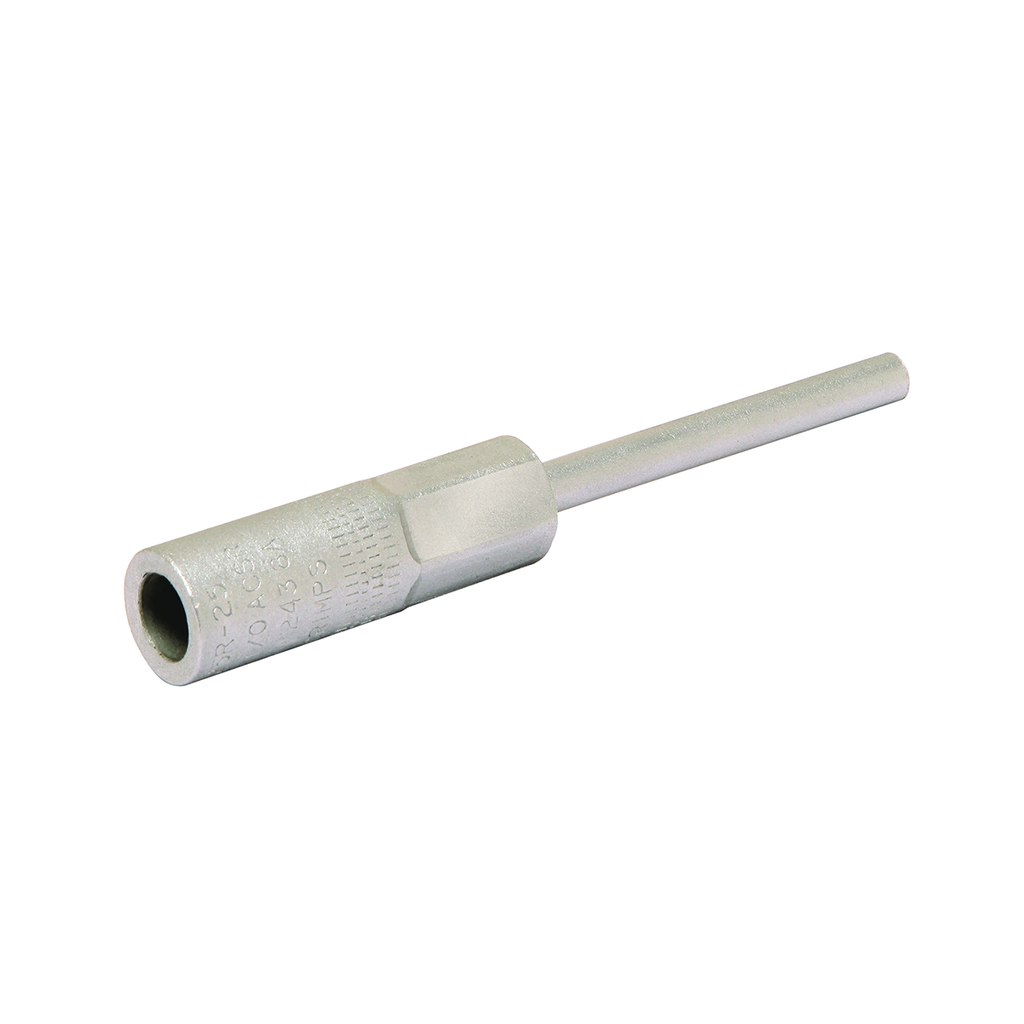

BUR YE28R60 4/0 AL PIN TERM
Product image thumbnail 0
Product image thumbnail 1
$28.47/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YE28R60
North Coast Part # 487368

Specifications

General

  • Application: For Terminating Aluminum Or ACSR Cable At Cut-Out, Transformer And Arrestor
  • Color Code: Pink
  • Die Index: 249;840;11A
  • Material: Aluminum
  • Plated: Y
  • Plating Type: Tin
  • Prefilled Oxide Inhibitor: N
  • Sub Brand: HYPLUG
  • Trade Name: HYPLUG™
  • Type: YE-R
  • UPC: 781810154304

Dimensions

  • Dimension - L Length Overall mm: 241 mm
  • Dimension - Length Overall inch: 9.50 in
  • Dimension - Outside Diameter inch: 0.91 in
  • Dimension - P inch: 6 in

Conductor Related

  • Conductor - ACSR Str Size: 4/0 (6/1) Penquin AWG
  • Conductor - ACSR Str Size Range: 4/0 (6/1) Penquin AWG
  • Conductor - AL Str Size: 4/0 AWG
  • Conductor - AL Str Size Range: 4/0 AWG

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: No

Logistics

  • Minimum Pack Quantity: 1

Overview

UPC 78181015430
GTiN 00781810154304
Finish Tin Plated
Size 10-5/8 IN Length
Type YE-R
Material Aluminum
Applications For Terminating Aluminum Or ACSR Cable At Cut-Out, Transformer And Arrestor
Family Brand Name Burndy
Conductor Type ACSR, Aluminum
Sub Brand HYPLUG
Length 9.50 in
Plating Type Tin
Plated? Yes
CSA No
Color Coding Pink
