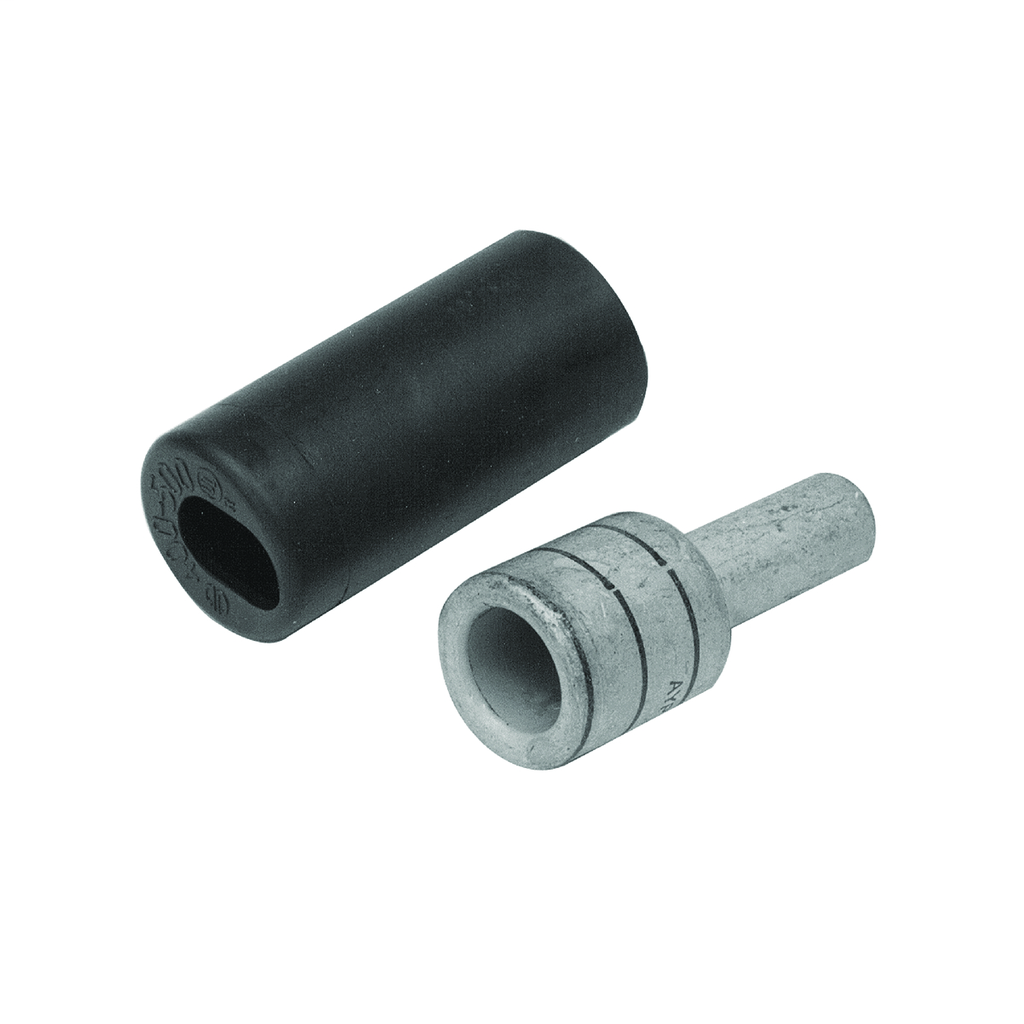

BUR YE30P46X92FX CU HYLUG 250 KCMIL

Specifications

General

• Color Code: Yellow
• Connector Type: Pin Terminal
• Die Index: 16
• Feature - Barrel Style: Chamfered
• Insulation: Y
• Material: Copper
• Pin Type: Straight
• Plated: Yes
• Plating Type: Tin plated
• Type: Copper Pin Adapters
• UPC: 781810037867
• UPC 12 Digit: 7818100378677

Dimensions

• Dimension - A Outside Diameter inch: 0.46 in
• Dimension - B Length fraction: 2-3/8 in
• Dimension - B Length inch: 2.37 in
• Dimension - B Outside Diameter inch: 0.81 in
• Dimension - Inside Diameter inch: 0.65 in
• Dimension - L Length Overall mm: 93 mm
• Dimension - Length Overall inch: 3.67 in
• Dimension - Outside Diameter inch: 0.81 in
• Dimension - P inch: 0.92 in
• Dimension - Strip Length inch: 3.34 in
• Equivalent Cross Pin Size: 0.46 in. - 4/0 AWG
• Equivalent Pin Size: 4/0 AWG

Electrical Ratings

• Rating - KVA: 35 kV
• Rating - Minimum Voltage: 600
• Voltage - Maximum: 35000

Conductor Related

• Conductor - Copper Flex G Size: 250 kcmil
• Conductor - Copper Flex G Size Range: 259
• Conductor - Copper Flex H Size: 250 kcmil
• Conductor - Copper Flex H Size Range: 427
• Conductor - Copper Flex I Size Range: 250
• Conductor - Copper Flex K Size Range: 250
• Conductor - Copper Flex M Size Range: 250
• Conductor - Copper Str Size: 250 kcmil
• Conductor - Copper Str Size Range: 250 kcmil

Certifications and Compliance

• Certification - CSA Approved: No
• Standards - RoHS Compliance Status: CM

Logistics

• Minimum Pack Quantity: 25
