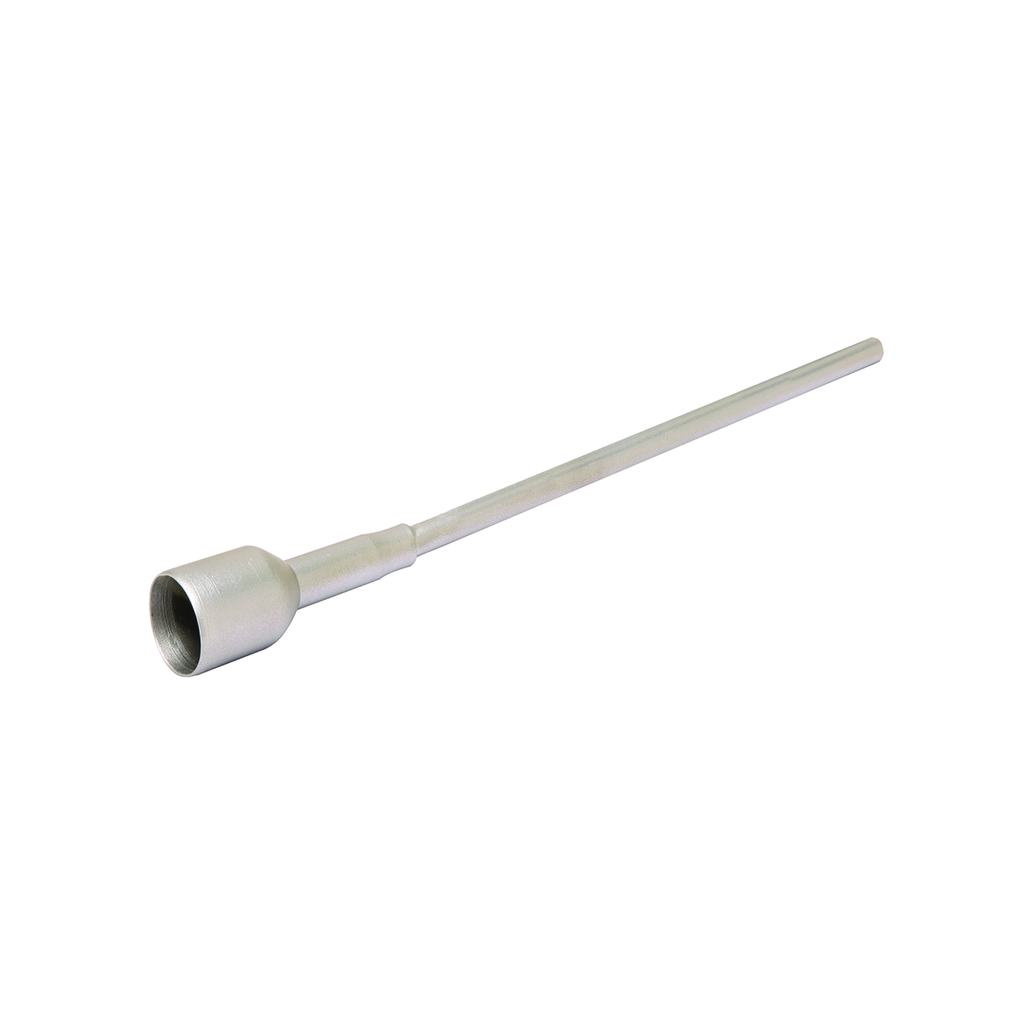

BUR YE31LH96 350 CU PIN TERM W/SHRO
Product image thumbnail 0
Product image thumbnail 1
$180.82/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YE31LH96
North Coast Part # 151053

Specifications

General

  • Application: For Terminating Insulated Copper Conductor At Cutout, Transformer And Arrestor Or For Joining Insulated Copper Riser To Overhead Conductor
  • Connector Type: Pin Terminal
  • Die Index: O
  • Feature - Barrel Style: Shrouded
  • Insulation: Y
  • Material: Copper
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • Sub Brand: HYSEALPLUG
  • Temperature Rating: 194
  • Trade Name: HYSEALPLUG™
  • Type: Shrouded Pin Terminals
  • UPC: 781810023402
  • UPC 12 Digit: 7818100234022

Dimensions

  • Dimension - B Length fraction: 2-15/16 in
  • Dimension - B Length inch: 2.94 in
  • Dimension - Inside Diameter inch: 1.03 in
  • Dimension - L Length Overall mm: 311 mm
  • Dimension - Length BB inch: 1.25 in
  • Dimension - Length Overall inch: 12.25 in
  • Dimension - P inch: 8.06 in

Electrical Ratings

  • Rating - KVA: 35 kV
  • Rating - Minimum Voltage: 600
  • Voltage - Maximum: 35000

Conductor Related

  • Conductor - Copper Str Size: 350 kcmil
  • Conductor - Copper Str Size Range: 350 kcmil

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: No

Logistics

  • Minimum Pack Quantity: 1

Overview

UPC 78181002340
GTiN 00781810023402
Family Brand Name Hubbell
Length 12.25 in
Material Copper
Conductor Size 350 MCM
Connection Type Pin Terminal
Plating Type Tin - Electro Plated
Plated? Yes
CSA No
Max Voltage 35000 V
