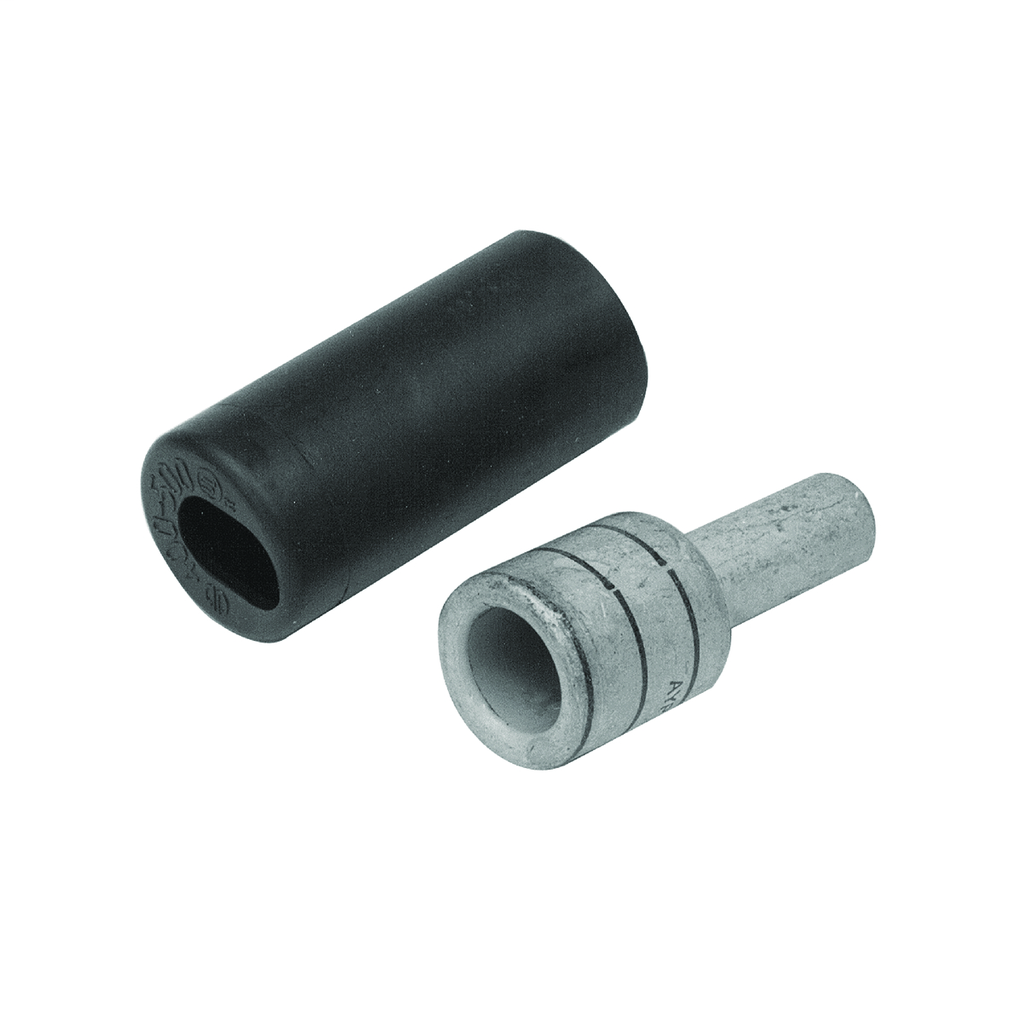

BUR YE32P55X110FX CUHYPLUG313.1 TO
$101.00/ea
Usually ships within 11 to 17 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YE32P55X110FX
North Coast Part # 542912

Specifications

General

  • Color Code: Red
  • Connector Type: Pin Terminal
  • Die Index: 18
  • Feature - Barrel Style: Chamfered
  • Insulation: Y
  • Material: Copper
  • Pin Type: Straight
  • Plated: Yes
  • Plating Type: Tin plated
  • Type: Copper Pin Adapters
  • UPC: 781810037737
  • UPC 12 Digit: 7818100377377

Dimensions

  • Dimension - A Outside Diameter inch: 0.55 in
  • Dimension - B Length fraction: 2-9/16 in
  • Dimension - B Length inch: 2.53 in
  • Dimension - B Outside Diameter inch: 0.95 in
  • Dimension - Inside Diameter inch: 0.76 in
  • Dimension - L Length Overall mm: 104 mm
  • Dimension - Length Overall inch: 4.08 in
  • Dimension - Outside Diameter inch: 0.95 in
  • Dimension - P inch: 1.10 in
  • Dimension - Strip Length inch: 2.63 in
  • Equivalent Cross Pin Size: 0.55 in. - 300 kcmil
  • Equivalent Pin Size: 300 kcmil

Electrical Ratings

  • Rating - KVA: 35 kV
  • Rating - Minimum Voltage: 600
  • Voltage - Maximum: 35000

Conductor Related

  • Conductor - Copper DLO Size: 313 DLO
  • Conductor - Copper DLO Size Range: 313.1 (775/#24) DLO
  • Conductor - Copper Flex G Size: 300 kcmil
  • Conductor - Copper Flex H Size: 300 kcmil
  • Conductor - Copper Flex I Size: 300 kcmil
  • Conductor - Copper Flex K Size: 300 kcmil
  • Conductor - Copper Flex M Size: 300 kcmil
  • Conductor - Copper Str Size: 300 kcmil

Certifications and Compliance

  • Certification - CSA Approved: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: No

Logistics

  • Minimum Pack Quantity: 25

Overview

UPC 78181003773
GTiN 00781810037737
Family Brand Name Hubbell
Length 4.08 in
Material Copper
Conductor Size 300 MCM
Connection Type Pin Terminal
Plating Type Tinned
Plated? Yes
CSA No
Max Voltage 35000 V
Color Coding Red
