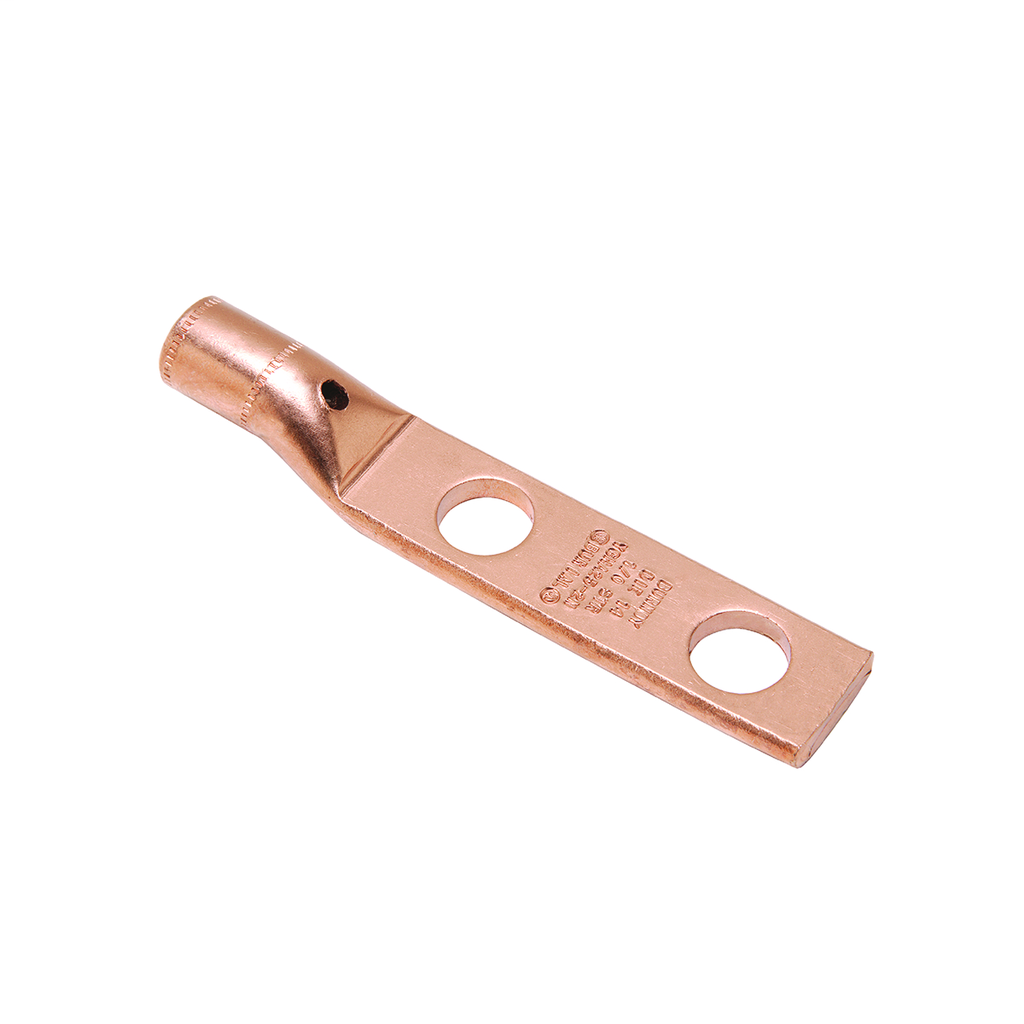

BUR YGHA312N CU 350, HVY DUTY TERM
Product image thumbnail 0
Product image thumbnail 1
$239.91/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YGHA312N
North Coast Part # 491466

Features

  • Heavy Duty HYLUG Irreversible Compression Terminals Designed Not Only To Carry Short Circuit Load, But To Also Withstand High Mechanical Stress, Each Conductor Element Has An Inspection Probe Hole To Ensure Proper Cable Insertion, UL467 Listed, Acceptable For Direct Burial In Earth Or Concrete, UL486A Listed, Prefilled With PENETROX Compound And Strip Sealed, Tools, Die Set Catalog Number, And (number Of Crimps): HYPRESS: Y35, Y39, Y750, PAT750 Tool, U34RT Die, (2), Y45 Tool, U34RT Die With PT-6515 Adapter, (2), Y46 Tool, U34RT Die With PUADP-1 Adapter, (2), Die Index: 20, Conductor Type: Copper

Specifications

  • Buy American Compliant: Yes
  • Conductor - Copper Str Size: 350 kcmil
  • Conductor - Copper Str Size Range: 350 kcmil
  • Country of Origin: US
  • Dimension - B Length fraction: 1-9/50 in
  • Dimension - B Length inch: 1.18 in
  • Dimension - D inch: 3.00 in
  • Dimension - Hole Size inch: 0.56 in
  • Dimension - Hole Size mm: 14 mm
  • Dimension - L Length Overall mm: 127 mm
  • Dimension - Length Overall inch: 5.00 in
  • Dimension - N inch: 0.63 in
  • Dimension - Outside Diameter inch: 1.17 in
  • Dimension - Pad Width inch: 1.62 in
  • Dimension - Stud Size fraction: 1/2
  • Dimension - Stud Size inch: 1/2
  • Dimension - Z inch: 0.62 in
  • Each - Height: 1.17 in
  • Each - Length: 5.00 in
  • Each - Width: 1.62 in
  • Industry Standard(s): UL467;UL 486A-486B;IEEE 837
  • Physical Attribute - Number of Crimps Required: 2
  • Physical Attribute - Tongue Angle: Straight
  • Plated: N
  • Plating Type: Unplated
  • Product Type: Compression
  • Standards - Industry Standards Met: UL467; UL 486A-486B; IEEE 837
  • Standards - RoHS Compliance Status: CM
  • Trade Name: HYLUG™
  • Application: For Direct Burial In Earth Or Concrete, Grounding Applications
  • Special Features: Features: Heavy Duty HYLUG Irreversible Compression Terminals Designed Not Only To Carry Short Circuit Load, But To Also Withstand High Mechanical Stress, Each Conductor Element Has An Inspection Probe Hole To Ensure Proper Cable Insertion, UL467 Listed, Acceptable For Direct Burial In Earth Or Concrete, UL486A Listed, Prefilled With PENETROX Compound And Strip Sealed, Tools, Die Set Catalog Number, And (number Of Crimps): HYPRESS: Y35, Y39, Y750, PAT750 Tool, U34RT Die, (2), Y45 Tool, U34RT Die With PT-6515 Adapter, (2), Y46 Tool, U34RT Die With PUADP-1 Adapter, (2), Die Index: 20, Conductor Type: Copper
  • Standard: UL467; UL 486A-486B; IEEE 837
  • Sub Brand: HYLUG
  • Type: Terminals
  • IGS 3D Model Asset Reference URL 3: https://hubbellcdn.com/igs/YGHA312N_MODEL-IGES.zip
  • STEP 3D Model Asset Reference URL 2: https://hubbellcdn.com/step3dfile/YGHA312N_MODEL-STEP.zip

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Listed Direct Burial: Yes
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

GTiN 00781810125960
Type Terminals
Material Copper
Stud Size 0.5 in
Applications For Direct Burial In Earth Or Concrete, Grounding Applications
Cable Size 350 KCMIL
Family Brand Name Burndy
Sub Brand HYLUG
Product UPC 78181012596
Length 5 Inch
Hole Size 14 mm
Conductor Size 350 MCM
Connection Type Terminal
Plating Type Unplated
Plated? No
CSA Yes
Width 1.62 in
Height 1.17 Inch
Country of Origin USA
Overall Length 5.00 in
