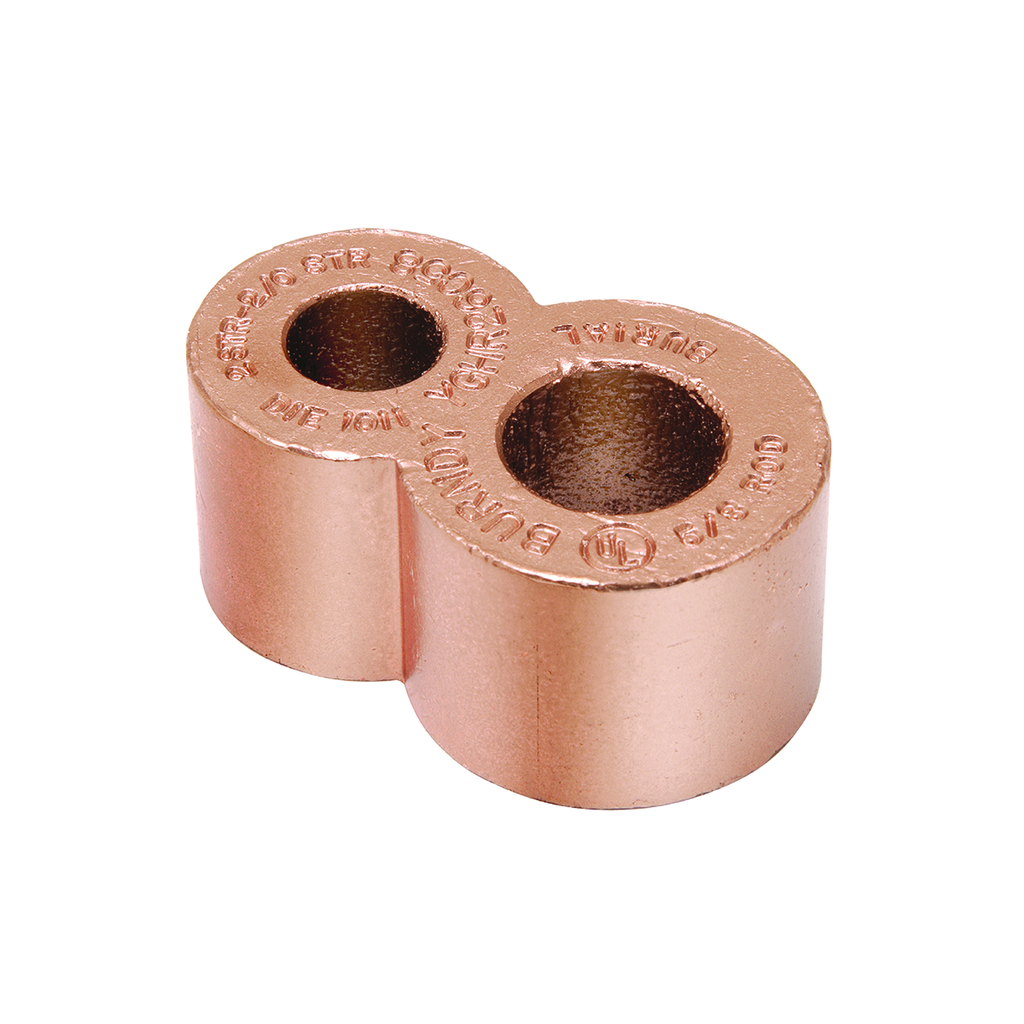

BUR YGHR29C100 4/0-250 TO 1 GRD ROD
Product image thumbnail 0
Product image thumbnail 1
$98.80/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YGHR29C100
North Coast Part # 68816

Specifications

General

  • Application: For Direct Burial In Earth Or Concrete
  • Connector Type: Tap
  • Construction Material - Main: Copper
  • Die Index: 998;1012
  • Material: Copper
  • Oxide Inhibitor Type: Penetrox E
  • Physical Attribute - Number of Crimps Required: 1
  • Plated: N
  • Plating Type: Unplated
  • Prefilled Oxide Inhibitor: Y
  • Sub Brand: HYGROUND, HYTAIL
  • Trade Name: HYTAILâ„¢
  • Type: YGHR-C
  • UPC: 781810220764
  • UPC 12 Digit: 7818102207644

Dimensions

  • Dimension - B Length fraction: 22/25 in
  • Dimension - B Length inch: 0.88 in
  • Dimension - Ground Rod Size: 1
  • Dimension - Height fraction: 2-9/20 in
  • Dimension - Height inch: 2.45 in
  • Dimension - L Length Overall mm: 22 mm
  • Dimension - Length Overall inch: 0.88 in

Conductor Related

  • Conductor - Copper Str Size: 4/0 AWG;250 kcmil
  • Conductor - Copper Str Size Range: 4/0 AWG-250 kcmil
  • Conductor - Rod Size: 1 in
  • Conductor - Rod Size Range: 1 in

Certifications and Compliance

  • Certification - CSA Approved: Yes
  • Certification - ETL: No
  • Certification - UL Listed Direct Burial: Yes
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 1

Conductor Type

  • CU C Str-Size A
  • Rod-Size B

Industry Standard(s)

  • UL467
  • IEEE 837

Standards - Industry Standards Met

  • UL467
  • IEEE 837

Overview

UPC 78181022076
GTiN 00781810220764
Family Brand Name Burndy
Length 0.88 in
Type YGHR-C
Material Copper
Conductor Size 250 MCM
Applications For Direct Burial In Earth Or Concrete
Height 2.45 in
Connection Type Tap
Plating Type Unplated
Plated? No
CSA Yes
Sub Brand HYGROUND, HYTAIL
