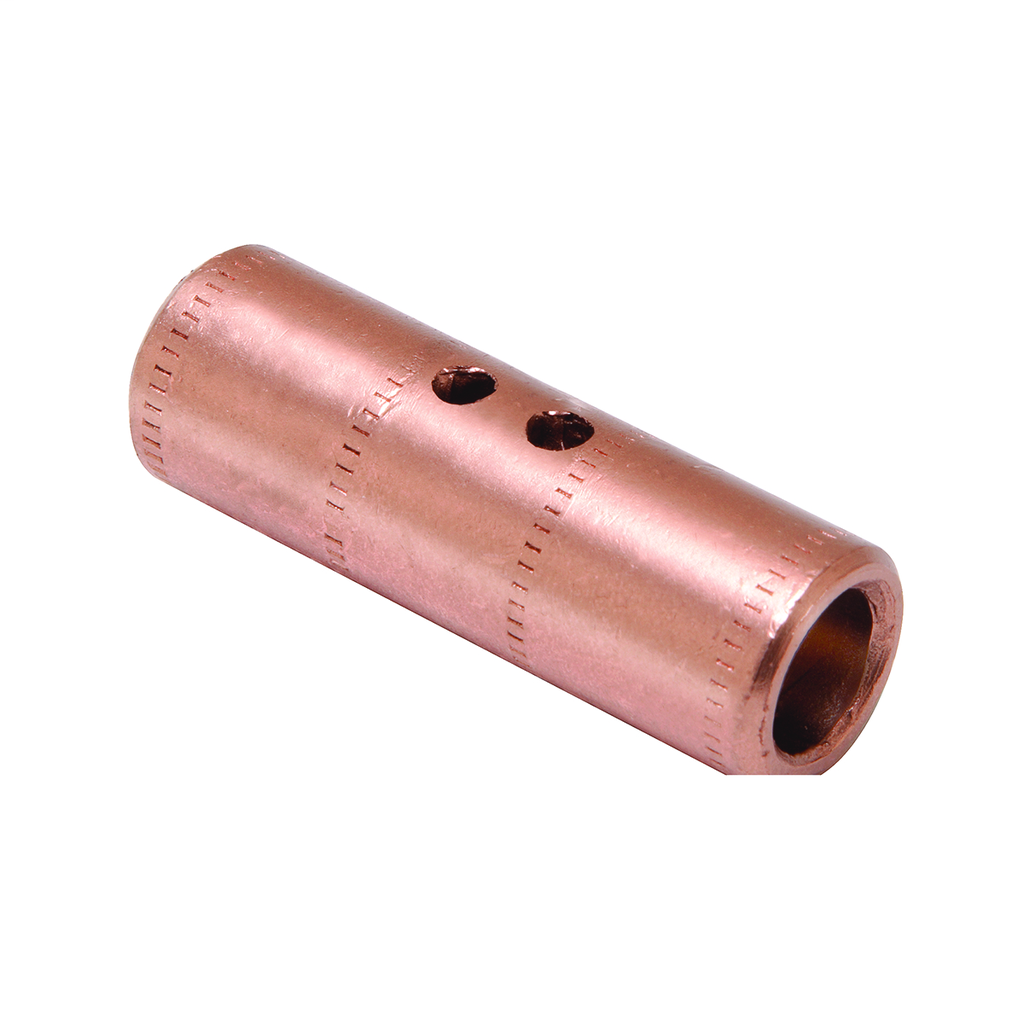

BUR YGHS34 CU 500, HVY DUTY SPLICE
Product image thumbnail 0
Product image thumbnail 1
$226.28/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YGHS34
North Coast Part # 264736

Specifications

General

  • Application: For Direct Burial In Earth Or Concrete
  • Connector Type: Splice
  • Die Index: 22
  • Material: Copper
  • Physical Attribute - Number of Crimps Required: 3
  • Plated: N
  • Plating Type: Unplated
  • Sub Brand: HYLINK
  • Trade Name: HYLINK™
  • Type: Splices
  • UPC: 781810220498
  • UPC 12 Digit: 7818102204988

Dimensions

  • Dimension - B Length fraction: 1-1/2 in
  • Dimension - B Length inch: 1.48 in
  • Dimension - L Length Overall mm: 81 mm
  • Dimension - Length Overall inch: 3.19 in
  • Dimension - Outside Diameter inch: 1.24 in

Conductor Related

  • Conductor - Copper Str Size: 500 kcmil
  • Conductor - Copper Str Size Range: 500 kcmil

Certifications and Compliance

  • Certification - CSA Approved: Yes
  • Certification - ETL: No
  • Certification - UL Listed Direct Burial: Yes
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 1

Industry Standard(s)

  • UL467
  • UL468A-468B
  • IEEE 837

Standards - Industry Standards Met

  • UL467
  • UL468A-468B
  • IEEE 837

Overview

UPC 78181022049
GTiN 00781810220498
Size 3.19 IN Length X 1.48 IN Dimension B
Type Splices
Applications For Direct Burial In Earth Or Concrete
Family Brand Name Burndy
Sub Brand HYLINK
Length 3.19 in
Color Black
Material Copper
Conductor Size 500 MCM
Plating Type Unplated
Plated? No
CSA Yes
