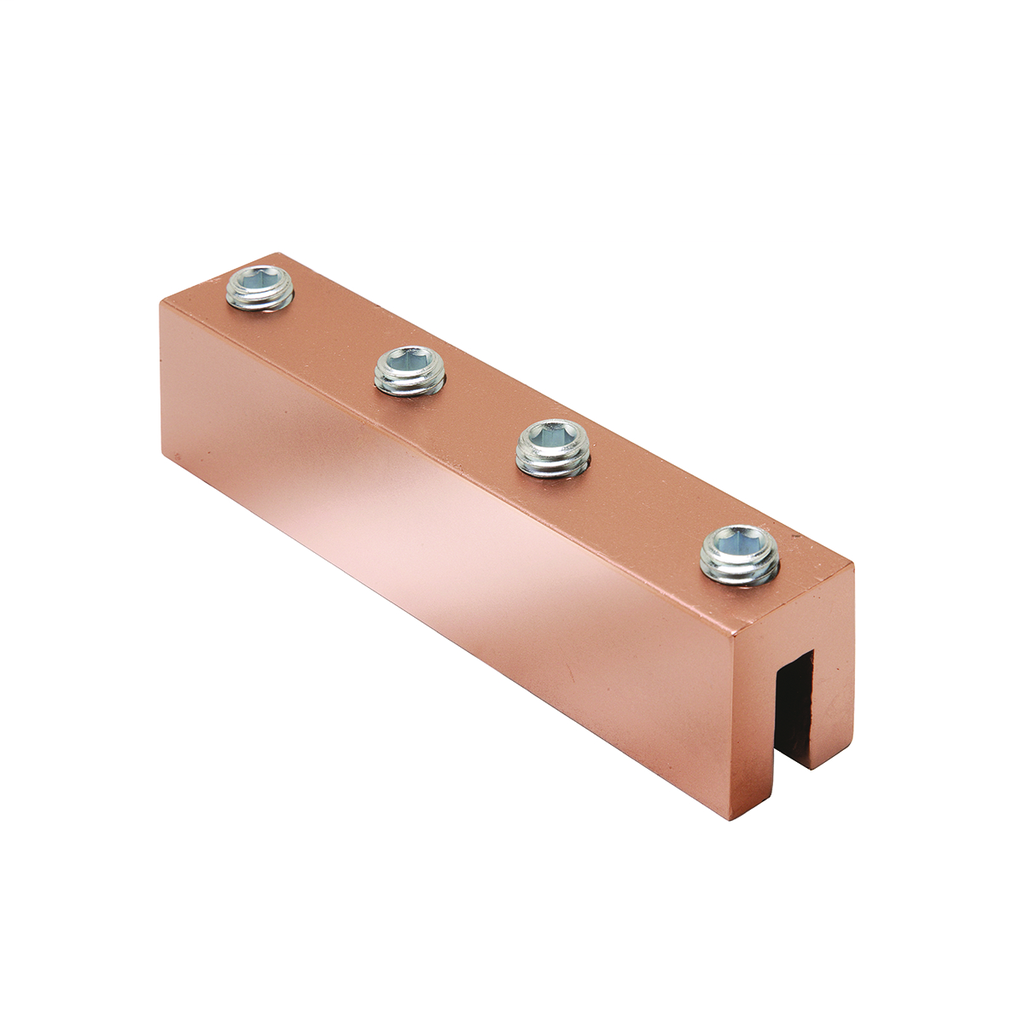

BUR YGIBW284002N .400 WIDE FLNG, 2-
Product image thumbnail 0
Product image thumbnail 1
$149.42/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YGIBW284002N
North Coast Part # 10639

Specifications

General

  • Application: For Direct Burial Cables
  • Connector Type: Tap
  • I Beam Style: Wide Flange Beam (Flange Parallel)
  • Material: Copper
  • Plated: N
  • Plating Type: Unplated
  • Sub Brand: HYGROUND, GROUNDLINK
  • Trade Name: GROUNDLINK™
  • Type: Taps
  • UPC: 781810034996
  • UPC 12 Digit: 7818100349966

Dimensions

  • Dimension - B Length fraction: 3 in
  • Dimension - B Length inch: 3.00 in
  • Dimension - I Beam Thickness Range inch: 0.313;0.325;0.375;0.350
  • Dimension - I Beam Thickness inch: 0.338" - 0.400"
  • Dimension - L Length Overall mm: 76 mm
  • Dimension - Length Overall inch: 3.00 in

Conductor Related

  • Conductor - Copper Str Size: 2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
  • Conductor - Copper Str Size Range: 2 AWG-4/0 AWG
  • Conductor Type: CU C Str-Size

Certifications and Compliance

  • Certification - CSA Approved: Yes
  • Certification - ETL: No
  • Certification - UL Listed Direct Burial: Yes
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 1

Industry Standard(s)

  • UL467
  • IEEE 837

Standards - Industry Standards Met

  • UL467
  • IEEE 837

Overview

UPC 78181003499
GTiN 00781810034996
Type Taps
Material Copper
Applications For Direct Burial Cables
Bolt Size 1/2-13
Family Brand Name Burndy
Sub Brand HYGROUND, GROUNDLINK
Length 3.00 in
Conductor Size 2 AWG
Connection Type Tap
Plating Type Unplated
Conductor Type CU C Str-Size
Plated? No
CSA Yes
