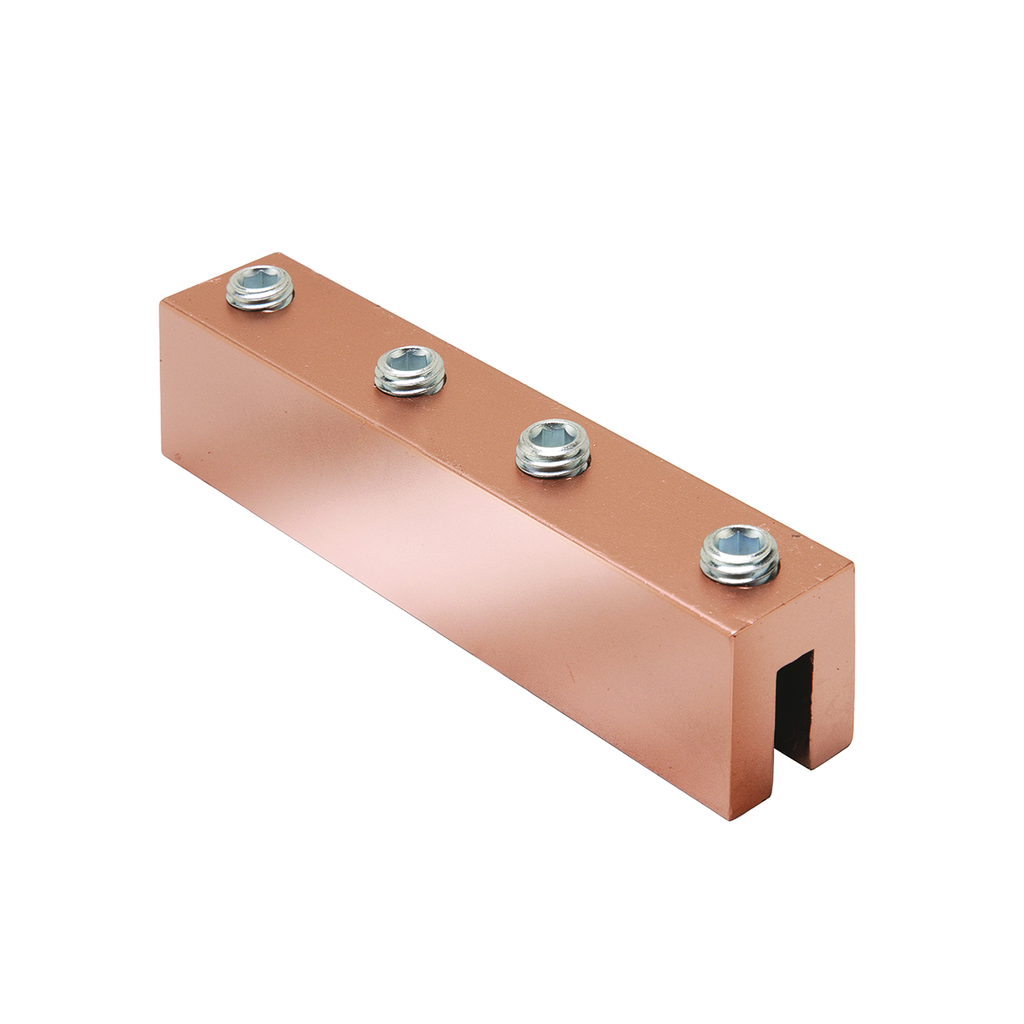

BUR YGIBW346132N .613 WIDE FLNG, 2-
Product image thumbnail 0
Product image thumbnail 1
$399.13/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YGIBW346132N
North Coast Part # 159812

Specifications

General

  • Connector Type: Tap
  • I Beam Style: Wide Flange Beam (Flange Parallel)
  • Material: Copper
  • Physical Attribute - Number of Tapped Holes: 2
  • Plated: N
  • Plating Type: Unplated
  • Trade Name: GROUNDLINK™
  • Type: Taps
  • UPC: 781810039410
  • UPC 12 Digit: 7818100394100

Dimensions

  • Dimension - B Length fraction: 6 in
  • Dimension - B Length inch: 6.00 in
  • Dimension - I Beam Thickness Range inch: 0.501;0.525;0.550;0.562
  • Dimension - I Beam Thickness inch: 0.550" - 0.613""
  • Dimension - L Length Overall mm: 152 mm
  • Dimension - Length Overall inch: 6.00 in

Conductor Related

  • Conductor - Copper Str Size: 250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
  • Conductor - Copper Str Size Range: 250 kcmil-500 kcmil
  • Conductor Type: CU C Str-Size

Certifications and Compliance

  • Certification - CSA Approved: Yes
  • Certification - ETL: No
  • Certification - UL Listed Direct Burial: Yes
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 1

Industry Standard(s)

  • UL467
  • IEEE 837

Standards - Industry Standards Met

  • UL467
  • IEEE 837

Overview

UPC 78181003941
GTiN 00781810039410
Family Brand Name Hubbell
Length 6.00 in
Material Copper
Conductor Size 300 MCM
Connection Type Tap
Plating Type Unplated
Conductor Type CU C Str-Size
Plated? No
CSA Yes
