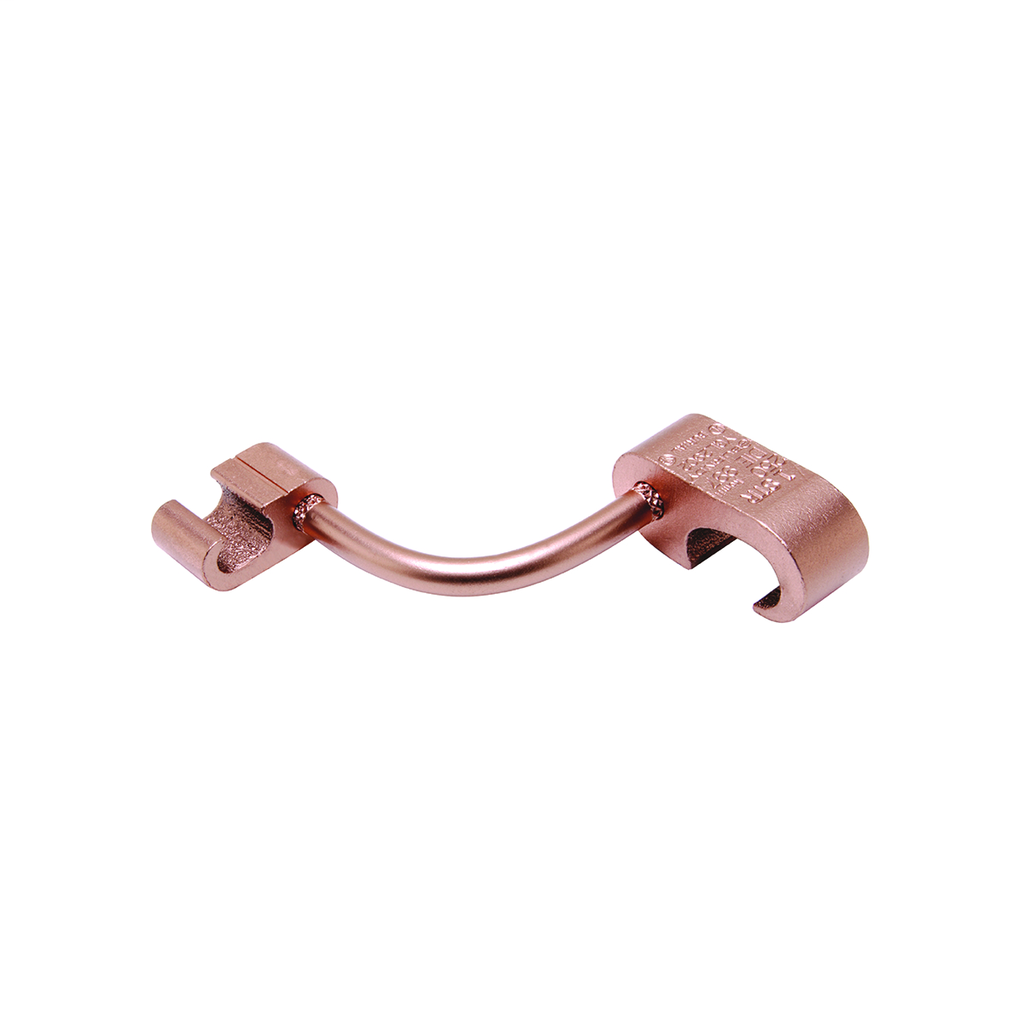

BUR YGL34C34 250-500 TO 250-500 GRD
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$120.05/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YGL34C34
North Coast Part # 214249

Features

  • An Irreversable Compression Ground Grid Cross Connector Which Allows Adjustment Of The Compression Elements Prior To Installation, Only Six Connectors And Four Dies Are Required To Install All Combinations From #6 AWG Solid Through 500 KCMIL, UL467 Listed, Acceptable For Direct Burial In Earth And Concrete, Prefilled With PENETROX Compound And Strip Sealed, Tools, Die Set Catalog Number, And (number Of Crimps): Element A: Y750/Y35/Y39 HYPRESS Tool, U1011 Die, (3), PAT750-18V Tool, U1011 Die, (3), Y45 Tool, S1011 Die, (3), Y46 Tool, P1011 Die, (3), Element B: Y750/Y35/Y39 Tool, U1011 Die, (3), PAT750-18V Tool, U1011 Die, (3), Y45 Tool, S1011 Die, (3), Y46 Tool, P1011 Die, (3), Rebar Size: #5 - #6, Ground Rod Size: 5/8 - 3/4 IN, Conductor Size (run - Range): 250 - 500 KCMIL, Conductor Type: Run: Commercial Stranded Copper, Rebar, Ground Rod, Conductor Size (tap Range): 250 - 500 KCMIL, Die Index: 1011 Element A, 1011 Element B

Specifications

  • Buy American Compliant: Yes
  • Conductor - Copper Str Size A: 250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
  • Conductor - Copper Str Size A Range: 250 kcmil-500 kcmil
  • Conductor - Copper Str Size B: 250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
  • Conductor - Copper Str Size B Range: 250 kcmil-500 kcmil
  • Conductor - Rebar Size A: 5 ;6
  • Conductor - Rebar Size A Range: 5 -6
  • Conductor - Rod Size A: 5/8 in;3/4 in
  • Conductor - Rod Size A Range: 5/8 in-3/4 in
  • Country of Origin: US
  • Dimension - B Length fraction: 1-1/9 in
  • Dimension - B Length inch: 1.10 in
  • Dimension - D inch: 0.75 in
  • Dimension - L Length Overall mm: 64 mm
  • Dimension - Length Overall inch: 2.50 in
  • Dimension - Pad Width inch: 2.28 in
  • Each - Height: 1.54 in
  • Each - Length: 5.22 in
  • Each - Width: 5.22 in
  • Industry Standard(s): UL467;IEEE 837
  • Oxide Inhibitor Type: Penetrox E
  • Plated: N
  • Plating Type: Unplated
  • Prefilled Oxide Inhibitor: Y
  • Product Type: Compression
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: UL467; IEEE 837
  • Standards - RoHS Compliance Status: CM
  • Trade Name: HYGRIDâ„¢
  • Application: For Direct Burial In Earth And Concrete
  • Special Features: Features: An Irreversable Compression Ground Grid Cross Connector Which Allows Adjustment Of The Compression Elements Prior To Installation, Only Six Connectors And Four Dies Are Required To Install All Combinations From #6 AWG Solid Through 500 KCMIL, UL467 Listed, Acceptable For Direct Burial In Earth And Concrete, Prefilled With PENETROX Compound And Strip Sealed, Tools, Die Set Catalog Number, And (number Of Crimps): Element A: Y750/Y35/Y39 HYPRESS Tool, U1011 Die, (3), PAT750-18V Tool, U1011 Die, (3), Y45 Tool, S1011 Die, (3), Y46 Tool, P1011 Die, (3), Element B: Y750/Y35/Y39 Tool, U1011 Die, (3), PAT750-18V Tool, U1011 Die, (3), Y45 Tool, S1011 Die, (3), Y46 Tool, P1011 Die, (3), Rebar Size: #5 - #6, Ground Rod Size: 5/8 - 3/4 IN, Conductor Size (run - Range): 250 - 500 KCMIL, Conductor Type: Run: Commercial Stranded Copper, Rebar, Ground Rod, Conductor Size (tap Range): 250 - 500 KCMIL, Die Index: 1011 Element A, 1011 Element B
  • Standard: UL467; IEEE 837
  • Sub Brand: HYGRID
  • Type: Taps
  • IGS 3D Model Asset Reference URL 3: https://hubbellcdn.com/igs/YGL34C34_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 2: https://hubbellcdn.com/PDF3DFile/YGL34C34_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 1: https://hubbellcdn.com/step3dfile/YGL34C34_MODEL-STEP.zip

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Listed Direct Burial: Yes
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181022005
Item Long Description Copper Compression Cross Grid Connector, 250 kcmil - 500 kcmil or 5/8" - 3/4" Ground Rod or # 5 - 6 Rebar, 250 kcmil - 500 kcmil.
GTiN 00781810220054
Size 1.1 IN Dimension B X 1.1 IN Dimension B-B X 2.28 IN Dimension C X 2.28 IN Dimension C-C X 0.75 IN Dimension D X 2.5 IN Length X 0.75 IN Dimension R
Type Taps
Conductor Size Run: 500, 400, 250, 300, 350 KCMIL
Applications For Direct Burial In Earth And Concrete
Family Brand Name Burndy
Tap Size 250, 300, 350, 400, 500 KCMIL
Sub Brand HYGRID
Length 2.50 in
Material Copper
Connection Type Tap
Plating Type Unplated
Plated? No
CSA Yes
