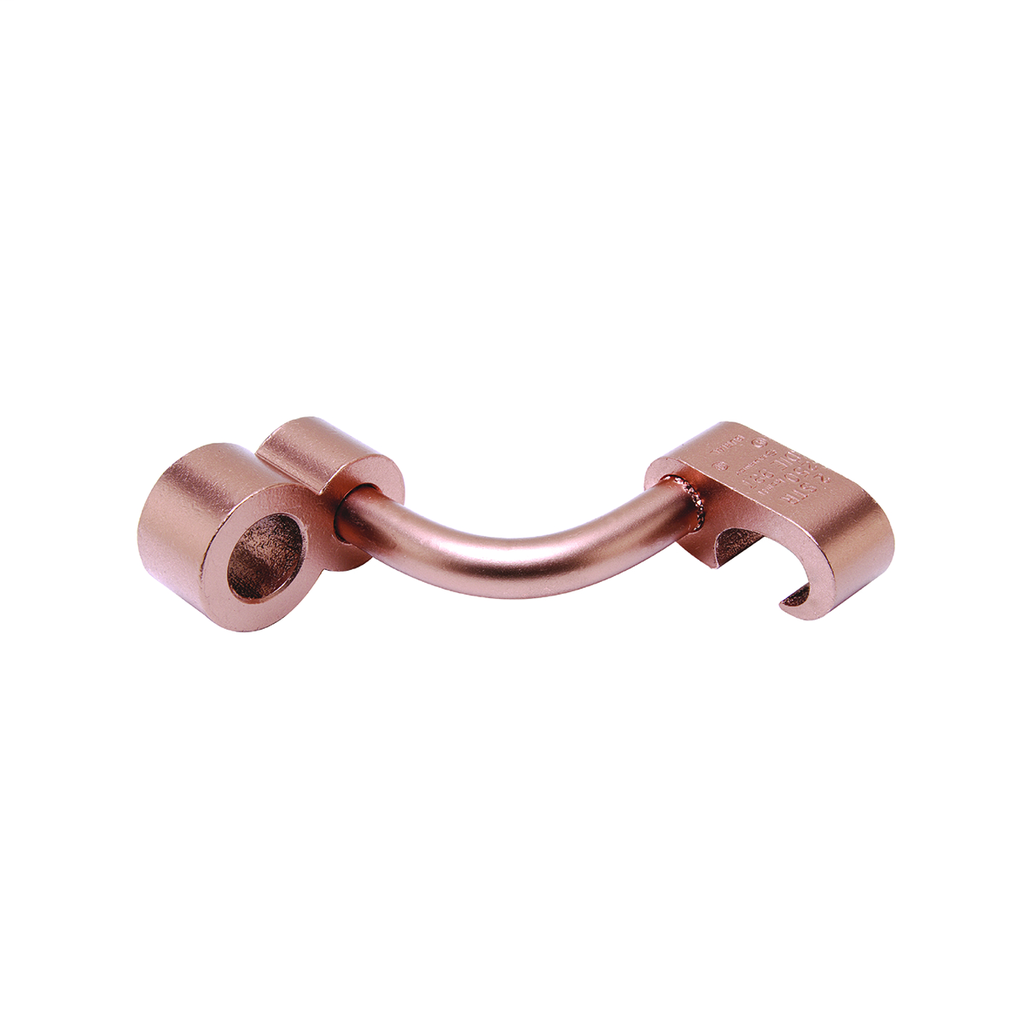

BUR YGLR29C58 2-250 GRD GRID TO 5/8
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$120.51/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YGLR29C58
North Coast Part # 159217

Features

  • Ground Grid Connector For A Wide Range Of Copper Cable To Ground Rod, Provides High Torque Strength On Ground Rod, UL467 Listed, Acceptable For Direct Burial In Earth And Concrete, Prefilled With PENETROX Compound And Strip Sealed, Ground Rod Size: 5/8 IN, Conductor Size (run - Mm): 35 -120 SQ-MM, Conductor Size (run - Range): Copperweld: 91.65 - 248.8 KCMIL, Code: 2 AWG - 250 KCMIL, Conductor Type: Run: Copperweld, Commercial Stranded Copper, Metric Stranded Cable, Die Index: 997 Element A, 1011 Element B, Tools, Die Set Catalog Number, And (number Of Crimps): Element A: Y35/Y39 HYPRESS Tool, U997 (1), Y750/PAT750 HYPRESS Tool, Element A: U997 (1), Y45 HYPRESS Tool, Element A: U997 (1), Y46 HYPRESS Tool, Element A: U997 (1), Element B: Y35/Y39 HYPRESS Tool, PU998 (1), Y750/PAT750 HYPRESS Tool, U1011 (2) Or PU998 (1), Y45 HYPRESS Tool, S1012 (2) Or PU998 (1), Y46 HYPRESS Tool, P1011(2) Or PU998 (1)

Specifications

  • Buy American Compliant: Yes
  • Conductor - Copper Str Size A: 2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
  • Conductor - Copper Str Size A Range: 2 AWG-250 kcmil
  • Conductor - Rebar Tap: 5;6
  • Conductor - Rod Size B: 5/8 in
  • Conductor - Rod Size B Range: 5/8 in
  • Country of Origin: US
  • Die Index - Element A: 997
  • Die Index - Element B: 1011
  • Dimension - B Length fraction: 3/4 in
  • Dimension - B Length inch: 0.75 in
  • Dimension - D inch: 0.31 in
  • Dimension - Ground Rod Size: 5/8
  • Dimension - L Length Overall mm: 64 mm
  • Dimension - Length BB inch: 0.88 in
  • Dimension - Length Overall inch: 2.53 in
  • Each - Height: 4.18 in
  • Each - Length: 3.98 in
  • Each - Width: 1.23 in
  • Industry Standard(s): Direct Burial
  • Oxide Inhibitor Type: Penetrox E
  • Physical Attribute - Number of Crimps Required: 1
  • Plated: N
  • Plating Type: Unplated
  • Precrimp Die: UPRECRIMP58
  • Prefilled Oxide Inhibitor: Y
  • Product Type: Compression
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: UL467; IEEE 837
  • Standards - RoHS Compliance Status: CM
  • Trade Name: GRIDLOK™
  • Application: For Direct Burial In Earth And Concrete
  • Special Features: Features: Ground Grid Connector For A Wide Range Of Copper Cable To Ground Rod, Provides High Torque Strength On Ground Rod, UL467 Listed, Acceptable For Direct Burial In Earth And Concrete, Prefilled With PENETROX Compound And Strip Sealed, Ground Rod Size: 5/8 IN, Conductor Size (run - Mm): 35 -120 SQ-MM, Conductor Size (run - Range): Copperweld: 91.65 - 248.8 KCMIL, Code: 2 AWG - 250 KCMIL, Conductor Type: Run: Copperweld, Commercial Stranded Copper, Metric Stranded Cable, Die Index: 997 Element A, 1011 Element B, Tools, Die Set Catalog Number, And (number Of Crimps): Element A: Y35/Y39 HYPRESS Tool, U997 (1), Y750/PAT750 HYPRESS Tool, Element A: U997 (1), Y45 HYPRESS Tool, Element A: U997 (1), Y46 HYPRESS Tool, Element A: U997 (1), Element B: Y35/Y39 HYPRESS Tool, PU998 (1), Y750/PAT750 HYPRESS Tool, U1011 (2) Or PU998 (1), Y45 HYPRESS Tool, S1012 (2) Or PU998 (1), Y46 HYPRESS Tool, P1011(2) Or PU998 (1)
  • Standard: Direct Burial
  • Sub Brand: GRIDLOK
  • Type: Taps
  • IGS 3D Model Asset Reference URL 2: https://hubbellcdn.com/igs/YGLR29C58_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 1: https://hubbellcdn.com/PDF3DFile/YGLR29C58_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 3: https://hubbellcdn.com/step3dfile/YGLR29C58_MODEL-STEP.zip

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Listed Direct Burial: Yes
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181022081
Item Long Description Copper Compression Connector, Ground Rod to Grid, 2 AWG (Str.) to 250 kcmil,5/8" Ground Rod.
GTiN 00781810220818
Size 0.75 IN Dimension B X 0.88 Dimension B-B X 2.53 IN Length X 0.313 IN Depth
Type Taps
Material Copper
Conductor Size Run: 4/0, 2/0, 3/0, 1, 1/0, 2 AWG, 35, 120 MM, 91.65, 248.8, 250 KCMIL
Applications For Direct Burial In Earth And Concrete
Family Brand Name Burndy
Sub Brand GRIDLOK
Length 2.53 in
Connection Type Tap
Plating Type Unplated
Plated? No
CSA Yes
