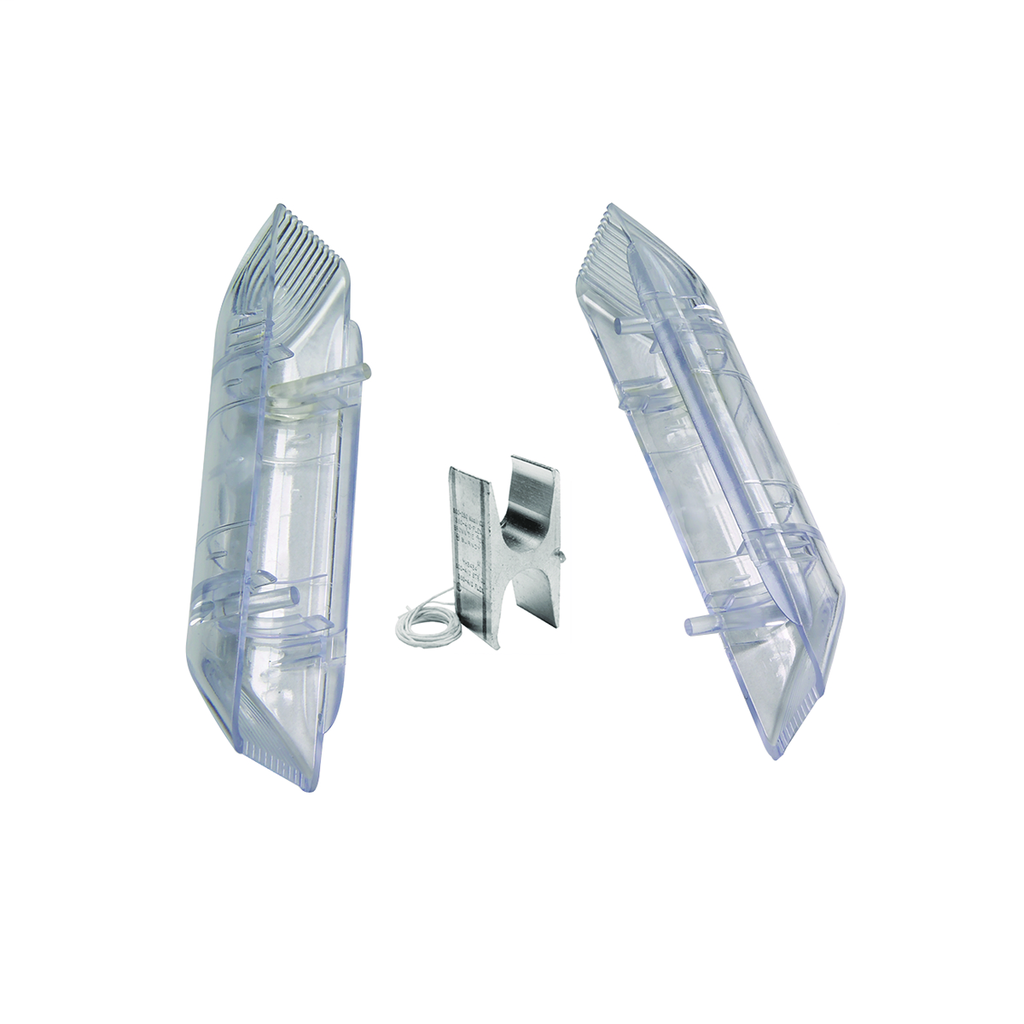

BUR YH292CWCC CU H-TAP 250-#2 W/CLE
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$70.90/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YH292CWCC
North Coast Part # 487459

Features

  • Accommodates A Wide Range Of Run/Tap Copper Cable Combinations Including Both Flexible And Code Combinations, All (B/B, B/I, I/B, I/I) Combinations Acceptable: Each Connector Has Many Copper Cable Combination Applications Allowing Maximum Flexibility For The Design And Installation Of A System, Tap Grooves Function Independently Of Each Other, Use Of One Tap Is Required, Balance May Be Used Or Left Empty: Provides Maximum Design And Installation Flexibility, Color Code On The Connector Matches Installation Die: Provides Matched System For Fast And Easy Installation, Die Index Embossed On Connector After Completion Of Crimp: Permanent Inspectability Of Installed Connectors To Insure Consistently Reliable And Dependable Connections, Recommended Flame Retardant Type CFFR Insulating Covers Meet Oxygen Index 28 And UL94 V-O Requirements: A Complete Insulated UL Listed Installation Is Provided, Third Hand Constrains Conductors While Installer Completes Crimp, Included With Each Connector, Simplifies Installation, Reducing Installed Cost, Use PUADP-1 Adaptor With U Dies In Y46, Tools, Die Set Catalog Number, And (number Of Crimps): Y750 Tool, U654 Die, (1), Y46 Tool, U654 Die With PUADP-1 Adapter, (1), P654 Die, (1), Die Index: 654 Element A, Flame Retardant Cover: CFD-FR, Wire Strip Length: 1-1/16 IN, Cover Packaged With Connector: Yes, Color Code: Purple, Conductor Size (run - Range): 2 AWG - 250 KCMIL, Conductor Type: Run: Commercial Stranded Copper, Flexible Copper, Tap: Commercial Stranded Copper, Flexible Copper, Conductor Size (tap Range): 14 - 2 AWG, Shape: H

Specifications

  • Buy American Compliant: Yes
  • Conductor - Copper Flex G Run: 2;1;1/0;2/0;3/0;4/0
  • Conductor - Copper Flex G Tap: 8;7;6;5;4;3;2
  • Conductor - Copper Flex H Tap: 8;7;6;5;4;3;2
  • Conductor - Copper Flex I Run: 2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0
  • Conductor - Copper Flex I Tap: 8;7;6;5;4;3;2
  • Conductor - Copper Flex K Run: 2;1;1/0;2/0;3/0;4/0
  • Conductor - Copper Flex K Tap: 8;7;6;5;4;3;2
  • Conductor - Copper Flex M Run: 2;1;1/0;2/0;3/0;4/0
  • Conductor - Copper Flex M Tap: 8;7;6;5;4;3;2
  • Conductor - Copper Solid Tap: 6;5;4;3;2
  • Conductor - Copper Str Run: 2;1;1/0;2/0;3/0;4/0;250
  • Country of Origin: US
  • Dimension - L Length Overall mm: 23 mm
  • Dimension - Length Overall inch: 0.90 in
  • Dimension - Strip Length inch: 1-1/16
  • Dimension - Width inch: 1.52 in
  • Each - Height: 1.52 in
  • Each - Length: 0.90 in
  • Each - Width: 0.90 in
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • Product Type: Compression
  • Rating - KVA: 35 kV
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: CM
  • Trade Name: CRIMPITâ„¢
  • Application: For Used To Accommodates A Wide Range Of Run/Tap Copper Cable Combinations Including Both Flexible And Code Combinations
  • Special Features: Features: Accommodates A Wide Range Of Run/Tap Copper Cable Combinations Including Both Flexible And Code Combinations, All (B/B, B/I, I/B, I/I) Combinations Acceptable: Each Connector Has Many Copper Cable Combination Applications Allowing Maximum Flexibility For The Design And Installation Of A System, Tap Grooves Function Independently Of Each Other, Use Of One Tap Is Required, Balance May Be Used Or Left Empty: Provides Maximum Design And Installation Flexibility, Color Code On The Connector Matches Installation Die: Provides Matched System For Fast And Easy Installation, Die Index Embossed On Connector After Completion Of Crimp: Permanent Inspectability Of Installed Connectors To Insure Consistently Reliable And Dependable Connections, Recommended Flame Retardant Type CFFR Insulating Covers Meet Oxygen Index 28 And UL94 V-O Requirements: A Complete Insulated UL Listed Installation Is Provided, Third Hand Constrains Conductors While Installer Completes Crimp, Included With Each Connector, Simplifies Installation, Reducing Installed Cost, Use PUADP-1 Adaptor With U Dies In Y46, Tools, Die Set Catalog Number, And (number Of Crimps): Y750 Tool, U654 Die, (1), Y46 Tool, U654 Die With PUADP-1 Adapter, (1), P654 Die, (1), Die Index: 654 Element A, Flame Retardant Cover: CFD-FR, Wire Strip Length: 1-1/16 IN, Cover Packaged With Connector: Yes, Color Code: Purple, Conductor Size (run - Range): 2 AWG - 250 KCMIL, Conductor Type: Run: Commercial Stranded Copper, Flexible Copper, Tap: Commercial Stranded Copper, Flexible Copper, Conductor Size (tap Range): 14 - 2 AWG, Shape: H
  • Sub Brand: CRIMPIT
  • Temperature Rating: 194
  • Type: Compression Taps
  • IGS 3D Model Asset Reference URL 3: https://hubbellcdn.com/igs/YH292CWCC_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 2: https://hubbellcdn.com/PDF3DFile/YH292CWCC_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 1: https://hubbellcdn.com/step3dfile/YH292CWCC_MODEL-STEP.zip

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181043643
Item Long Description H-Tap CU Crimpit, Electro-Tin Plated, 250-2(Run), Tap 1: 2-6(Str/Sol), Tap 2: 8-14.
GTiN 00781810436431
Finish Tin Plated
Size 1.52 IN Height X 0.9 IN Width X 0.9 IN Length
Type Compression Taps
Material Copper
Conductor Size Run: 4/0, 2/0, 3/0, 1, 1/0, 2 AWG, 250 KCMIL
Applications For Used To Accommodates A Wide Range Of Run/Tap Copper Cable Combinations Including Both Flexible And Code Combinations
Temperature Rating 194
Family Brand Name Burndy
Tap Size 2, 4, 6, 8, 12, 10, 14 AWG
Sub Brand CRIMPIT
Length 0.90 in
Width 1.52 in
Connection Type H-Tap
Plating Type Tin - Electro Plated
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Purple
