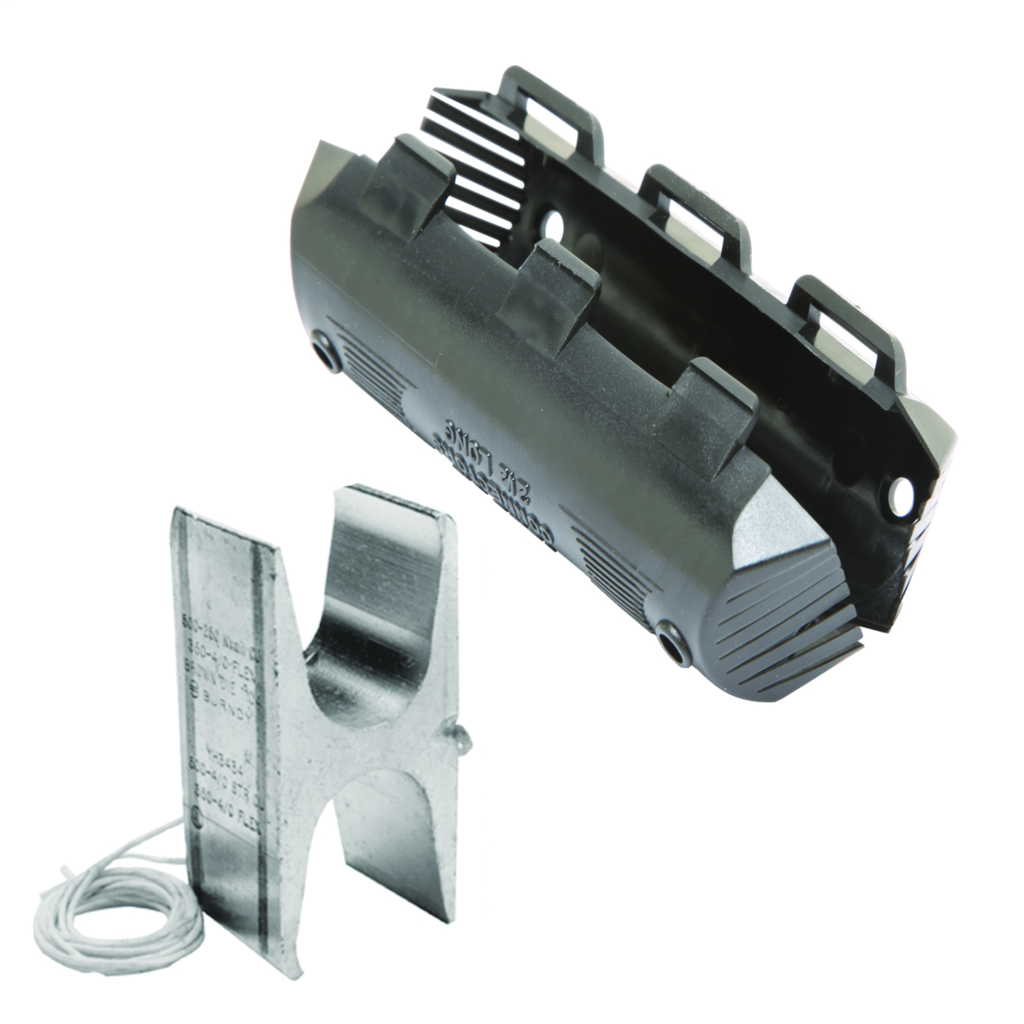

BUR YH3434WC CU H-TAP 500-500 W/COV
$80.25/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YH3434WC
North Coast Part # 11272

Specifications

General

  • Application: For Used To Accommodates A Wide Range Of Run/Tap Copper Cable Combinations Including Both Flexible And Code Combinations
  • Color Code: Brown
  • Connector Type: H-Tap
  • Die Index: 1104
  • Material: Copper
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • Sub Brand: CRIMPIT
  • Temperature Rating: 194
  • Type: Compression Taps
  • UPC: 781810000366
  • UPC 12 Digit: 7818100003666

Dimensions

  • Dimension - L Length Overall mm: 25 mm
  • Dimension - Length Overall inch: 1.00 in
  • Dimension - Strip Length inch: 1-1/8
  • Dimension - Width inch: 2.43 in

Electrical Ratings

  • Rating - KVA: 35 kV
  • Rating - Minimum Voltage: 600
  • Voltage - Maximum: 35000

Conductor Related

  • Conductor - Copper Flex G Run: 4/0;250;300;350
  • Conductor - Copper Flex G Tap: 4/0;250;300;350
  • Conductor - Copper Flex H Tap: 4/0;250;300;350
  • Conductor - Copper Flex I Run: 4/0;250;300;350
  • Conductor - Copper Flex I Tap: 4/0;250;300;350
  • Conductor - Copper Flex K Run: 4/0;250;300;350
  • Conductor - Copper Flex K Tap: 4/0;250;300;350
  • Conductor - Copper Flex M Run: 4/0;250;300;350
  • Conductor - Copper Flex M Tap: 4/0;250;300;350
  • Conductor - Copper Str Run: 250;300;350;400;450;500
  • Conductor - Copper Str Tap: 4/0;250;300;350;400;450;500

Certifications and Compliance

  • Certification - CSA Approved: Yes
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 1

Categories

Overview

UPC 78181000036
GTiN 00781810000366
Finish Tin Plated
Size 2.43 IN Height X 1.15 IN Width X 1 IN Length
Type Compression Taps
Material Copper
Conductor Size Run: 4/0 AWG, 250 , 350, 400, 500 KCMIL
Applications For Used To Accommodates A Wide Range Of Run/Tap Copper Cable Combinations Including Both Flexible And Code Combinations
Temperature Rating 194
Family Brand Name Burndy
Tap Size 4/0 AWG, 250, 350, 400, 500 KCMIL
Sub Brand CRIMPIT
Length 1.00 in
Width 2.43 in
Connection Type H-Tap
Plating Type Tin - Electro Plated
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Brown
