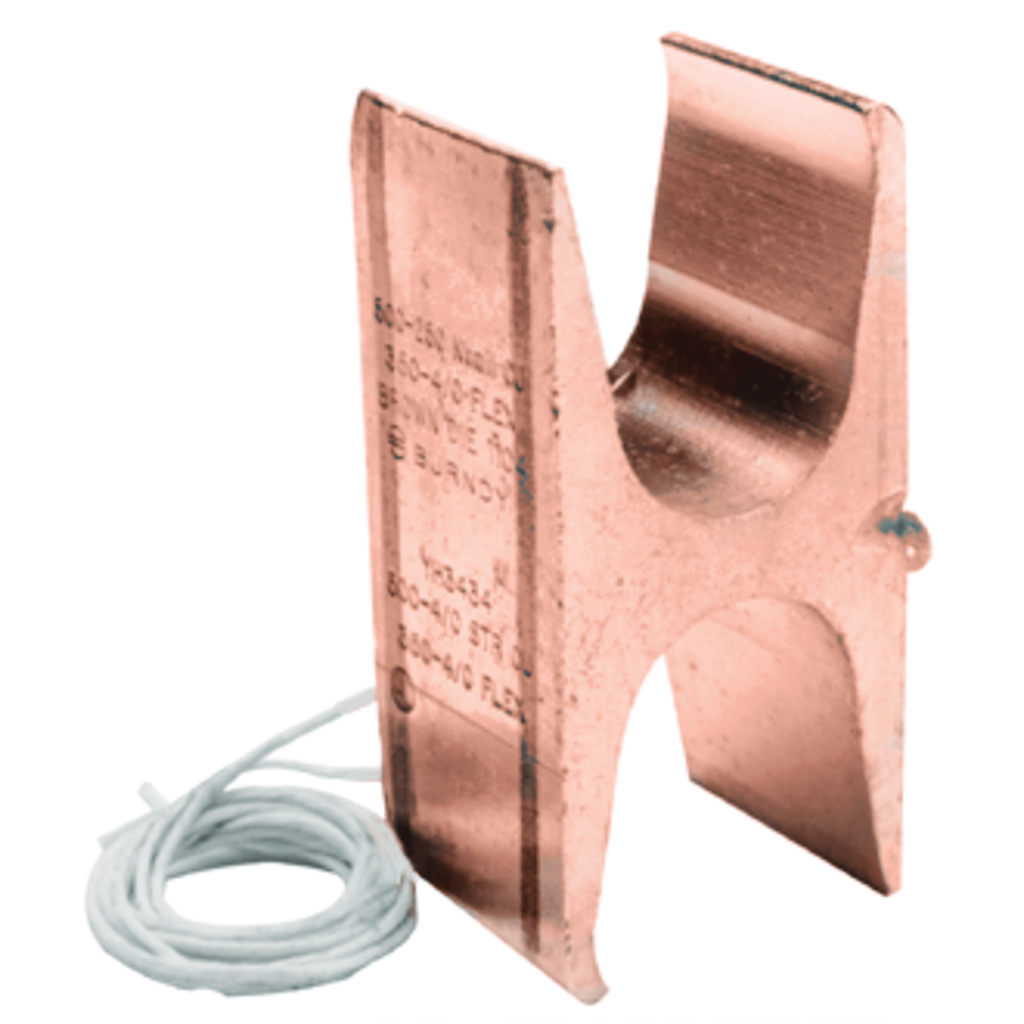

BUR YH3939 CU H-TAP 750-750 W/O COV
Product image thumbnail 0
Product image thumbnail 1
$71.72/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YH3939
North Coast Part # 12670

Features

Features: Accommodates A Wide Range Of Run/Tap Copper Cable Combinations Including Both Flexible And Code Combinations, All (B/B, B/I, I/B, I/I) Combinations Acceptable: Each Connector Has Many Copper Cable Combination Applications Allowing Maximum Flexibility For The Design And Installation Of A System, Tap Grooves Function Independently Of Each Other, Use Of One Tap Is Required, Balance May Be Used Or Left Empty: Provides Maximum Design And Installation Flexibility, Color Code On The Connector Matches Installation Die: Provides Matched System For Fast And Easy Installation, Die Index Embossed On Connector After Completion Of Crimp: Permanent Inspectability Of Installed Connectors To Insure Consistently Reliable And Dependable Connections, Recommended Flame Retardant Type CFFR Insulating Covers Meet Oxygen Index 28 And UL94 V-O Requirements: A Complete Insulated UL Listed Installation Is Provided, Third Hand Constrains Conductors While Installer Completes Crimp, Included With Each Connector, Simplifies Installation, Reducing Installed Cost, Color Code: Yellow, Flame Retardant Cover: CFR-FR, Tools, Die Set Catalog Number, And (number Of Crimps): Y46 Tool, PYFR Die, (1), Wire Strip Length: 1-3/8 IN, Die Index: KR Element A, Cover Packaged With Connector: No, Conductor Type: Run: Commercial Stranded Copper, Flexible Copper, Tap: Commercial Stranded Copper, Flexible Copper, Conductor Size (run - Range): 500 - 750 KCMIL, Conductor Size (tap Range): 350 - 750 KCMIL, Shape: H

Specifications

General

  • Application: For Used To Accommodates A Wide Range Of Run/Tap Copper Cable Combinations Including Both Flexible And Code Combinations
  • Color Code: Yellow
  • Connector Type: H-Tap
  • Die Index: KR
  • Material: Copper
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • Sub Brand: CRIMPIT
  • Temperature Rating: 194
  • Type: Compression Taps
  • UPC: 781810013847
  • UPC 12 Digit: 7818100138477

Dimensions

  • Dimension - Height inch: 2.97 in
  • Dimension - L Length Overall mm: 32 mm
  • Dimension - Length Overall inch: 1.25 in
  • Dimension - Strip Length inch: 1-3/8
  • Dimension - Width fraction: 1.50 in
  • Dimension - Width inch: 2.97 in

Electrical Ratings

  • Rating - KVA: 35 kV
  • Rating - Minimum Voltage: 600
  • Voltage - Maximum: 35000

Conductor Related

  • Conductor - Copper Flex G Run: 450;500
  • Conductor - Copper Flex G Run Range: 450-500
  • Conductor - Copper Flex G Tap: 350;400;450;500
  • Conductor - Copper Flex G Tap Range: 350-500
  • Conductor - Copper Flex H Run: 500 kcmil
  • Conductor - Copper Flex H Run Range: 500 kcmil
  • Conductor - Copper Flex H Tap: 350;400;450;500
  • Conductor - Copper Flex H Tap Range: 350-500
  • Conductor - Copper Flex I Run: 450 kcmil;500
  • Conductor - Copper Flex I Tap: 350;400;450;500
  • Conductor - Copper Flex K Run: 450;500
  • Conductor - Copper Flex K Tap: 350;400;450;500
  • Conductor - Copper Flex M Run: 450;500
  • Conductor - Copper Flex M Tap: 350;400;450;500
  • Conductor - Copper Str Run: 500;550;600;700;750
  • Conductor - Copper Str Run Range: 500-750
  • Conductor - Copper Str Tap: 350;400;450;500;550;600;700
  • Conductor - Copper Str Tap Range: 350-700

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): UL467
  • Standards - Industry Standards Met: UL467
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Overview

UPC 78181001384
GTiN 00781810013847
Finish Tin Plated
Size 2.97 IN Height X 1.5 IN Width X 1.25 IN Length
Type Compression Taps
Material Copper
Conductor Size Run: 500, 550, 600, 750 KCMIL
Applications For Used To Accommodates A Wide Range Of Run/Tap Copper Cable Combinations Including Both Flexible And Code Combinations
Temperature Rating 194
Family Brand Name Burndy
Tap Size 350, 400, 500, 550, 600, 750 KCMIL
Sub Brand CRIMPIT
Length 1.25 in
Width 2.97 in
Height 2.97 in
Connection Type H-Tap
Plating Type Tin - Electro Plated
Plated? Yes
CSA No
Max Voltage 35000 V
Color Coding Yellow
