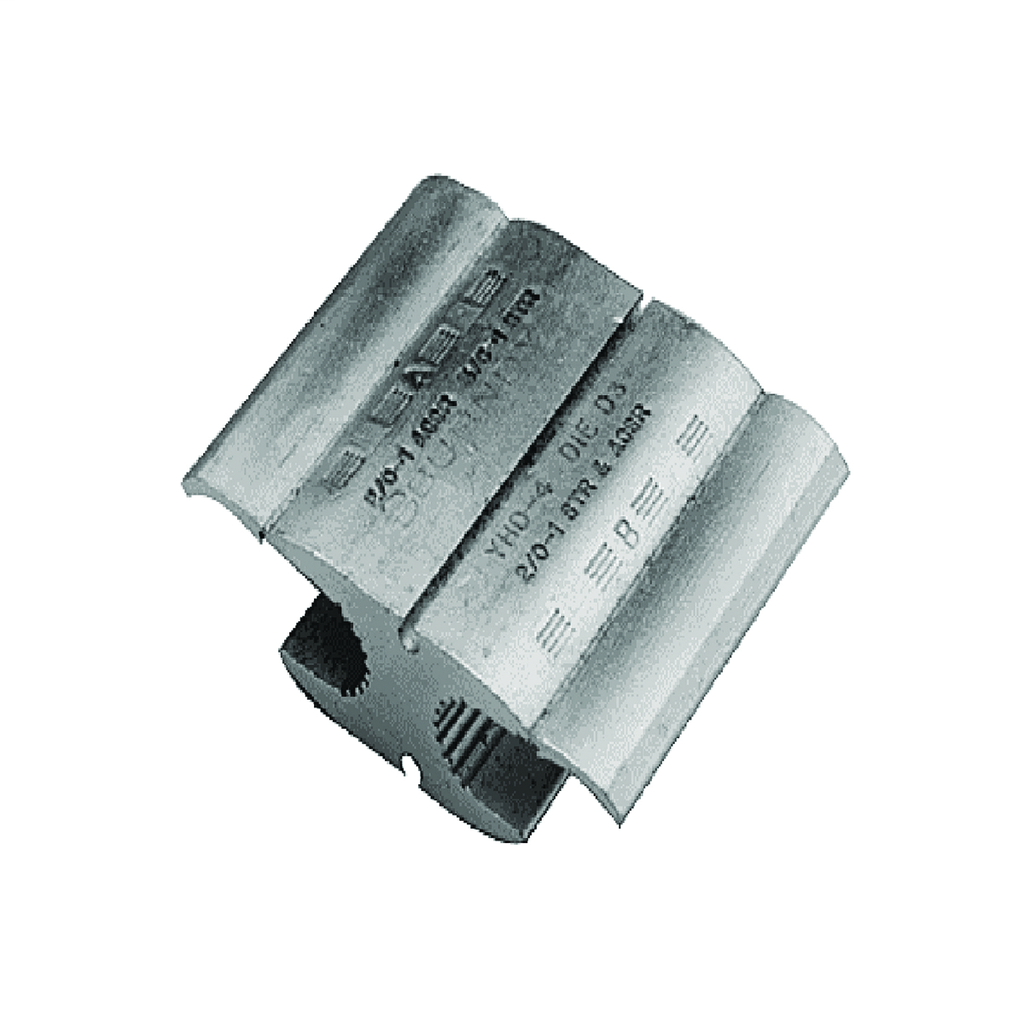

BUR YHD5 3/0-4/0R 6-2T AL H TAP
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$3.93/ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YHD5
North Coast Part # 215364

Features

  • LOKTAP Compression Connectors Are High Quality, Range-Taking Devices Which Accommodate Combinations Of Aluminum To Copper, And Aluminum To Aluminum Conductors, Burndy Seven Connector Program Accommodates A Conductor Range From 6 AWG Solid To 4/0 ACSR, In Addition, LOKTAP Products Feature A C Groove On Both Sides Of The Connector For Use In Street Lighting Applications From 14 AWG Solid To 10 AWG Solid, LOKTAP Connectors Are Designed To Be Installed With Burndy Mechanical Or Hydraulic Tools And Matching O And D3 Die Set, Cable Diameter Range (tap): 0.162 - 0.26 IN, Cable Diameter Range (run): 0.475 - 0.563 IN, Die Index: D3 Element A, Conductor Size (run - Range): 3/0 AWG - 300 KCMIL, Conductor Type: Run: ACSR, ACSR Compact, Aluminum Compact, Copper Compact, Aluminum Solid, Copper Solid, Aluminum Stranded, Copper Stranded, Tap: ACSR Compact, ACSR, Aluminum Compact, Copper Compact, Aluminum Solid, Copper Solid, Aluminum Stranded, Copper Stranded, Shape: H, Conductor Size (tap Range): 6 - 1/0 AWG

Specifications

  • Conductor - ACSR Cmpt Run: 4/0 AWG;266
  • Conductor - ACSR Cmpt Run Range: 4/0 AWG-266
  • Conductor - ACSR Cmpt Tap: 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG
  • Conductor - ACSR Cmpt Tap Range: 6 AWG-1 AWG
  • Conductor - ACSR Str Run: 3/0 (6/1) Pigeon AWG;4/0 (6/1) Penquin AWG
  • Conductor - ACSR Str Run Range: 3/0 (6/1) Pigeon AWG-4/0 (6/1) Penquin AWG
  • Conductor - ACSR Str Tap: 6 (6/1) Turkey AWG;5 (6/1) Thrush AWG;4 (6/1) Swan AWG;4 (7/1) Swanate AWG;3 (6/1) Swallow AWG;2 (6/1) Sparrow AWG;2 (7/1) Sparate AWG
  • Conductor - ACSR Str Tap Range: 6 (6/1) Turkey AWG-2 (7/1) Sparate AWG
  • Conductor - AL Str Run: 4/0 AWG
  • Conductor - AL Str Run Range: 4/0 AWG
  • Conductor - AL Str Tap: 6 AWG;4 AWG;3 AWG;2 AWG
  • Conductor - AL Str Tap Range: 6 AWG-2 AWG
  • Conductor - Copper Solid Run: 250 kmcil;300 kcmil
  • Conductor - Copper Solid Run Range: 250 kmcil-300 kcmil
  • Conductor - Copper Solid Tap: #6;5 AWG;4 AWG;3 AWG;2 AWG;1/0
  • Conductor - Copper Solid Tap Range: #6-1/0
  • Conductor - Copper Str Run: 4/0 AWG
  • Conductor - Copper Str Run Range: 4/0 AWG
  • Conductor - Copper Str Tap: 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
  • Conductor - Copper Str Tap Range: 6 AWG-2 AWG
  • Country of Origin: MX
  • Dimension - Height fraction: 1-47/100 in
  • Dimension - Height inch: 1.47 in
  • Dimension - L Length Overall mm: 48 mm
  • Dimension - Length Overall inch: 1.88 in
  • Dimension - Width fraction: 87/100 in
  • Dimension - Width inch: 0.87 in
  • Dimension - Width mm: 22 mm
  • Each - Height: 1.47 in
  • Each - Length: 1.88 in
  • Each - Width: 0.87 in
  • Plated: N
  • Plating Type: Unplated
  • Prefilled Oxide Inhibitor: Y
  • Product Type: Compression
  • Standards - RoHS Compliance Status: CM
  • Trade Name: LOKTAP™
  • Sub Brand: LOKTAP
  • PDF 3D Model Asset Reference URL 3: https://hubbellcdn.com/PDF3DFile/YHD5_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 1: https://hubbellcdn.com/step3dfile/YHD5_MODEL-STEP.zip

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

GTiN 00781810139080
Length 1.88 Inch
Width 1.47 in
Size 0.87 IN Height X 1.47 IN Width X 1.88 IN Length
Type YHD
Material Aluminum
Conductor Size Run: 4/0, 3/0 AWG, 250, 256 , 266 (18/1), 300 KCMIL
Applications For Accommodate Combinations Of Aluminum To Copper, And Aluminum To Aluminum Conductors
Height 0.87 Inch
Family Brand Name Burndy
Conductor Type ACSR, ACSR Compact, Aluminum Compact, Copper Compact, Aluminum Solid, Copper Solid, Aluminum Stranded, Copper Stranded
Tap Size 1/0, 2, 6, 4, 3.3, 3, 1 AWG
Used With Mechanical or Hydraulic Tools and Matching O and D3 Die Set, Combinations of Aluminum to Copper, and Aluminum to Aluminum Conductors
Sub Brand Loktap
Product UPC 78181013908
Plating Type Unplated
Plated? No
CSA No
Country of Origin Mexico
Overall Length 1.88 in
