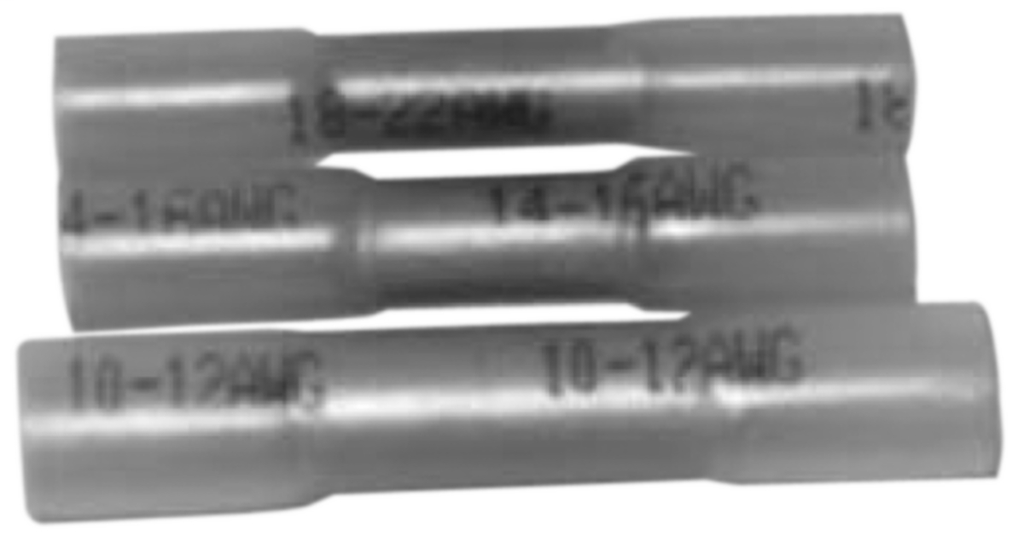

BUR YHSS14 16 AWG - 14 AWG,1.50 IN

Specifications

General

• Application: For Use On Copper Conductor
• Connector Type: Splice
• Insulation: Y
• Insulation Type: Heat Shrink
• Material: Copper
• Plated: Y
• Plating Type: Tin
• Sub Brand: HYDENT
• Trade Name: HYDENT™
• Type: YHS, Heat Shrink
• UPC: 781810476901

Dimensions

• Dimension - B Length fraction: 1/4 in
• Dimension - B Length inch: 0.25 in
• Dimension - L Length Overall mm: 38 mm
• Dimension - Length Overall inch: 1.50 in
• Dimension - Strip Length inch: 5/16

Conductor Related

• Conductor - Copper Solid Size: 16 AWG;15 AWG;14 AWG
• Conductor - Copper Solid Size Range: 16 AWG-14 AWG
• Conductor - Copper Str Size: 16 AWG;14 AWG
• Conductor - Copper Str Size Range: 16 AWG-14 AWG

Certifications and Compliance

• Certification - CSA Approved: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Certification - cULus: No
• Standards - RoHS Compliance Status: CM
• UL Listed: No

Logistics

• Carton Quantity: 100 EA
• Minimum Pack Quantity: 100
• Packaging Type: Bag

Conductor Type

• CU C Solid-Size
• CU C Str-Size
