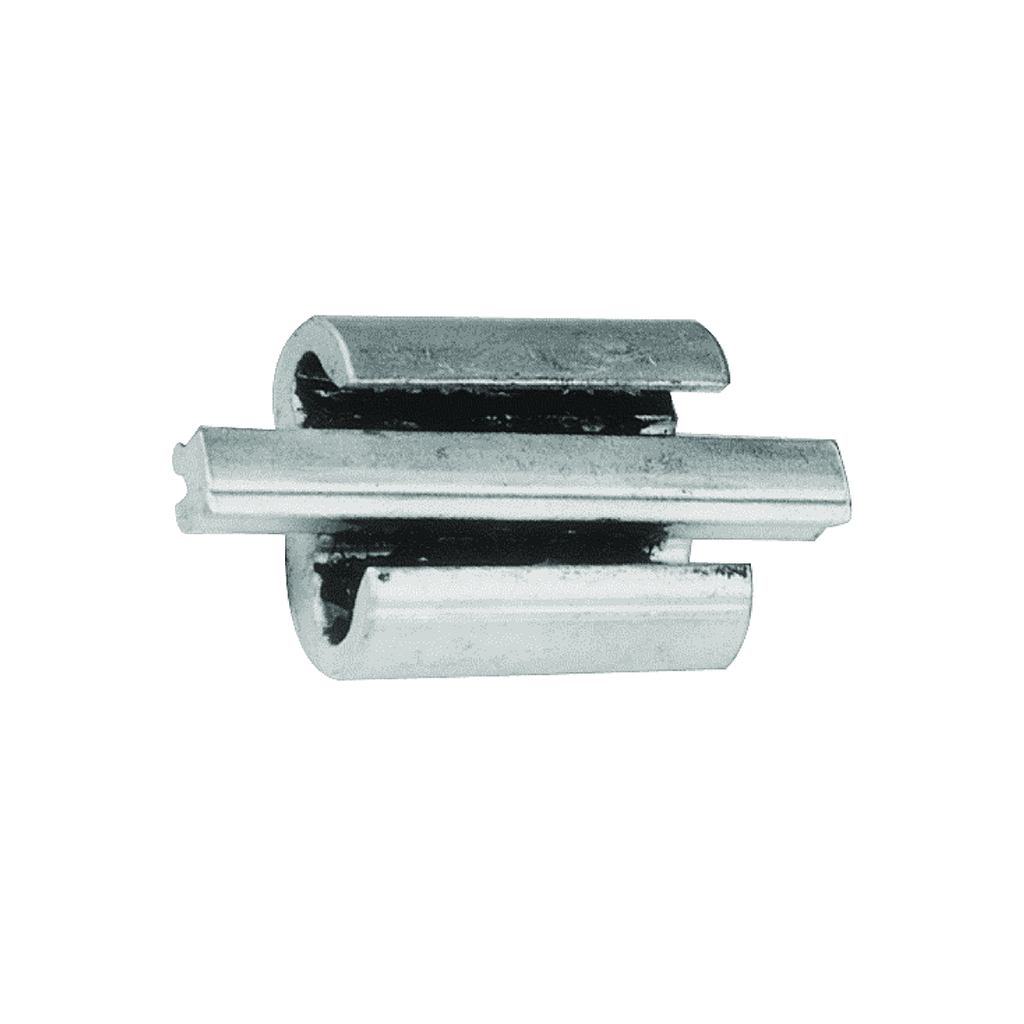

BUR YP25U25 2-1/0R 6-2T AL/CU/ACSR,

Specifications

General

• Application: For Copper, Aluminum Or ACSR Conductors
• Die Index: D3
• Material: Aluminum
• Plated: N
• Plating Type: Unplated
• Prefilled Oxide Inhibitor: Y
• Sub Brand: CABELOK CRIMPIT
• Trade Name: CABELOK™ CRIMPIT™
• Type: YP-U
• UPC: 781810130322
• UPC 12 Digit: 7818101303222

Dimensions

• Dimension - Height inch: 1.70 in
• Dimension - Length Overall inch: 1.69 in
• Dimension - Width inch: 0.97 in

Conductor Related

• Conductor - ACSR Str Size A: 1 (6/1) Robin AWG;1/0 (6/1) Raven AWG
• Conductor - ACSR Str Size A Range: 1 (6/1) Robin AWG-1/0 (6/1) Raven AWG
• Conductor - ACSR Str Size B: 1 (6/1) Robin AWG;1/0 (6/1) Raven AWG
• Conductor - ACSR Str Size B Range: 1 (6/1) Robin AWG-1/0 (6/1) Raven AWG
• Conductor - AL Str Size A: 1 AWG;1/0 AWG
• Conductor - AL Str Size A Range: 1 AWG-1/0 AWG
• Conductor - AL Str Size B: 1 AWG;1/0 AWG
• Conductor - AL Str Size B Range: 1 AWG-1/0 AWG
• Conductor - Copper Solid Size A: 2/0 AWG;3/0 AWG
• Conductor - Copper Solid Size A Range: 2/0 AWG-3/0 AWG
• Conductor - Copper Solid Size B: 2/0 AWG;3/0 AWG
• Conductor - Copper Solid Size B Range: 2/0 AWG-3/0 AWG
• Conductor - Copper Str Size A: 1 AWG;1/0 ;2/0 AWG
• Conductor - Copper Str Size A Range: 1 AWG-2/0 AWG
• Conductor - Copper Str Size B: 1 AWG;1/0 ;2/0 AWG
• Conductor - Copper Str Size B Range: 1 AWG-2/0 AWG

Certifications and Compliance

• Certification - CSA Approved: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Certification - cULus: No
• Standards - RoHS Compliance Status: CM
• UL Listed: No

Logistics

• Minimum Pack Quantity: 1
