BUR YPC33R28R 266-397R 2/0-4/0T AL/

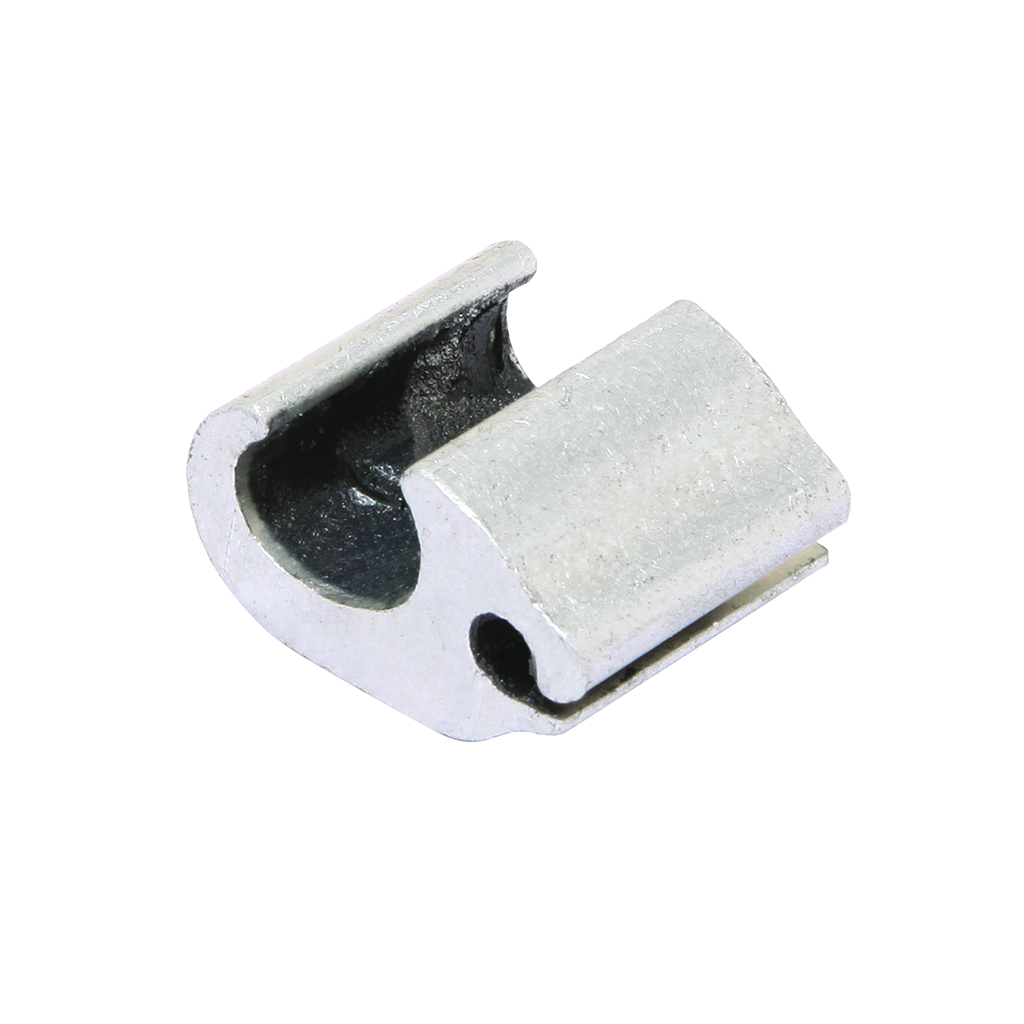

Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$37.44/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YPC33R28R
North Coast Part # 18881

Features

  • Extra Wide Range Universal Connector, Two Dies And 5 Connectors Take Run Sizes 1/0- 600 KCMIL, And Tap Sizes 6-400 KCMIL, Wide Range Made Possible By Long Ram Travel Of BURNDY HYPRESS Tools, Figure 6- Shape Separates Run And Tap Wires, And Minimizes Galvanic Corrosion Of Conductors, Connector Can Be Gripped In Tool And Slipped Over Line For Easy Installation, Pre-Filled With PENETROX Joint Compound And Stripsealed, Conductor Type: ACSR, 5005, Aluminum And Copper, Shape: 6, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y750 Tool, U-N Die, (3), Y45 Tool, S-N Die, (3), Y46 Tool, P-N Die, (3), Die Index: N Element A

Specifications

  • Conductor - ACSR Str Run Range: 266.8 kcmil-397.5 kcmil
  • Conductor - ACSR Str Tap Range: 2/0 AWG-4/0 AWG
  • Conductor - AL Str Run: 250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil
  • Conductor - AL Str Run Range: 250 kcmil-477 kcmil
  • Conductor - AL Str Tap: 2/0 AWG;3/0 AWG;4/0 AWG
  • Conductor - AL Str Tap Range: 2/0 AWG-4/0 AWG
  • Conductor - Copper Str Run: 250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil
  • Conductor - Copper Str Run Range: 250 kcmil-477 kcmil
  • Conductor - Copper Str Tap: 2/0 AWG;3/0 AWG;4/0 AWG
  • Conductor - Copper Str Tap Range: 2/0 AWG-4/0 AWG
  • Country of Origin: MX
  • Dimension - Height inch: 2.28 in
  • Dimension - L Length Overall mm: 98 mm
  • Dimension - Length Overall inch: 3.88 in
  • Dimension - Width inch: 1.16 in
  • Each - Height: 2.28 in
  • Each - Length: 3.88 in
  • Each - Width: 1.16 in
  • Plated: N
  • Plating Type: Unplated
  • Product Type: Compression
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: CM
  • Trade Name: CRIMPITâ„¢
  • IGS 3D Model Asset Reference URL 3: https://hubbellcdn.com/igs/YPC33R28R_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 2: https://hubbellcdn.com/PDF3DFile/YPC33R28R_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 1: https://hubbellcdn.com/step3dfile/YPC33R28R_MODEL-STEP.zip

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181013800
GTiN 00781810138007
Family Brand Name Burndy
Item Long Description Figure 6 shape connector separates run and tap wires and minimizes galvanic corrosion of conductors,Run,Al and Cu:250 (37) - 477 (37).
Length 3.88 in
Width 1.16 in
Type YPC-U
Material Aluminum
Applications For Combinations Of Copper, Aluminum, ACSR, 6201, 5005 And Compressed And Compact Conductors
Height 2.28 in
Plating Type Unplated
Plated? No
CSA No
Sub Brand CRIMPIT
