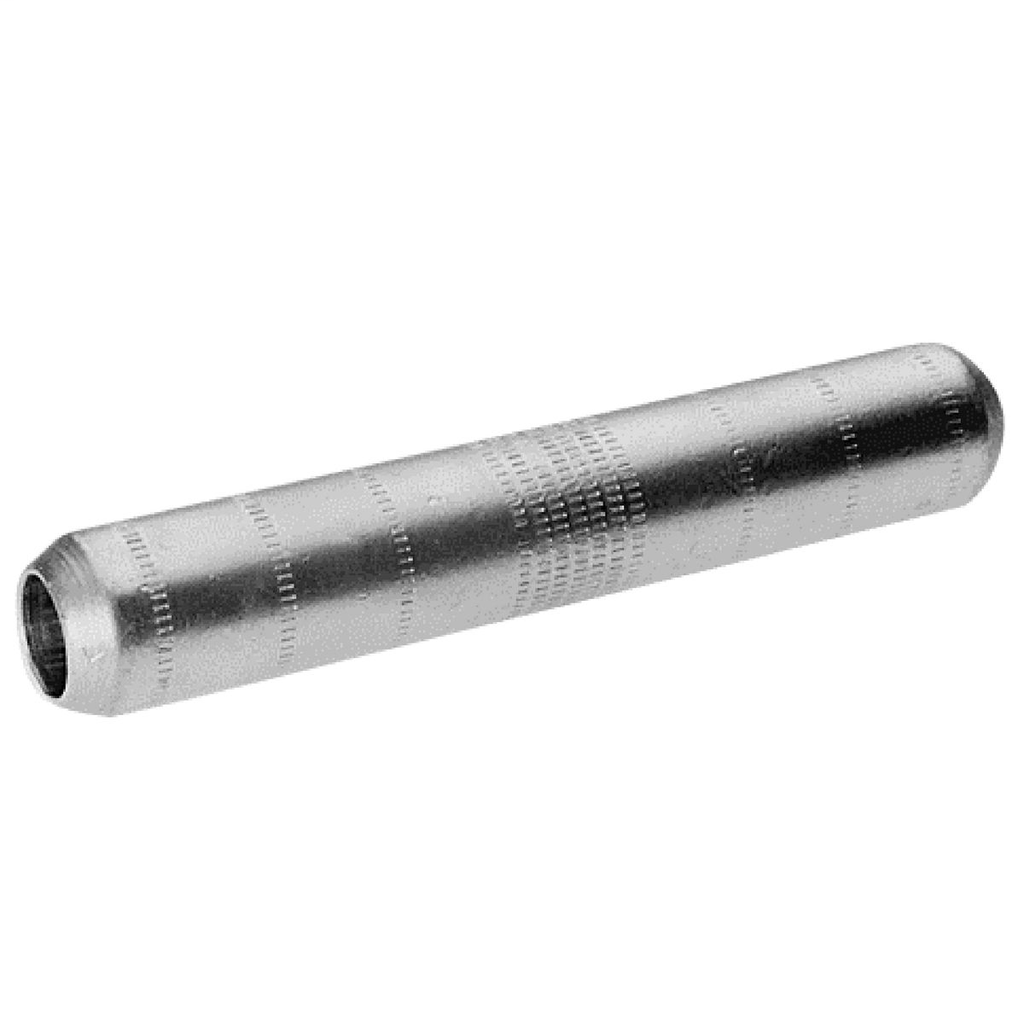

BUR YS28T COPPER SPLICE
Product image thumbnail 0
Product image thumbnail 1
$41.48/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YS28T
North Coast Part # 493042

Features

  • Seamless Types YS-T High Conductivity Copper Electro-Tin Plated Compression HYLINK High-Voltage Splices With Standard Barrel And Tapered Ends Are Ideally Suited For Higher Voltage Applications From 5KV Through 35 KV, Tapered Connector Ends Per EEI Standard TD160, Suitable For Use On Voltages 5KV Through 35KV To Aid In Preventing Corona Emission And Simplify Taping Thus Lowering Installed Cost, Type YS-T Four Center Wire Stops: Provides A Center Wire Stop For Proper Conductor Insertion, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: Y35, Y39, Y750 Tool, U28D-1 Die Nest, Y34PR Indentor, Y35P3 Adaptor, Installation Tool: Y34B, Y34PR Indentor, B28D Die Nest, Tapered End: Yes, Oil Stop: No, Die Index: 15 Element A, Conductor Type: Commercial Stranded Copper, Tools, Die Set Catalog Number, And (number Of Crimps): PAT750 Tool, U28RT Die, (2), Y35, Y39, Y46, Y750 Tool, U28RT Die With PUADP-1 Adapter, Wire Strip Length: 1-3/16 IN

Specifications

  • Buy American Compliant: Yes
  • Conductor - Copper Str Size Range: 4/0 AWG
  • Country of Origin: US
  • Each - Height: 0.69 in
  • Each - Length: 2.67 in
  • Each - Width: 0.69 in
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: CM
  • Trade Name: HYLINK™
  • Application: For Higher Voltage Applications From 5 KV Through 35 KV
  • Special Features: Features: Seamless Types YS-T High Conductivity Copper Electro-Tin Plated Compression HYLINK High-Voltage Splices With Standard Barrel And Tapered Ends Are Ideally Suited For Higher Voltage Applications From 5KV Through 35 KV, Tapered Connector Ends Per EEI Standard TD160, Suitable For Use On Voltages 5KV Through 35KV To Aid In Preventing Corona Emission And Simplify Taping Thus Lowering Installed Cost, Type YS-T Four Center Wire Stops: Provides A Center Wire Stop For Proper Conductor Insertion, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: Y35, Y39, Y750 Tool, U28D-1 Die Nest, Y34PR Indentor, Y35P3 Adaptor, Installation Tool: Y34B, Y34PR Indentor, B28D Die Nest, Tapered End: Yes, Oil Stop: No, Die Index: 15 Element A, Conductor Type: Commercial Stranded Copper, Tools, Die Set Catalog Number, And (number Of Crimps): PAT750 Tool, U28RT Die, (2), Y35, Y39, Y46, Y750 Tool, U28RT Die With PUADP-1 Adapter, Wire Strip Length: 1-3/16 IN
  • Sub Brand: HYLINK
  • Type: YS-T, High Voltage, Standard Barrel

Certifications

  • CSA Approved: Yes
  • ETL: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181000122
Item Long Description 4/0 AWG CU, Tapered End, Internal Chamfer, Tin Plated, UL/CSA, 90C, Up to 35kV, PURPLE Color Code, 15 Die Index.
GTiN 00781810001226
Size 2.67 IN Length X 1.13 IN Dimension B
Type YS-T, High Voltage, Standard Barrel
Material Copper
Applications For Higher Voltage Applications From 5 KV Through 35 KV
Temperature Rating 90 C
Family Brand Name Burndy
Sub Brand HYLINK
CSA Yes
