BUR YS29L 250MCM CU SPLC TN
Product image thumbnail 0
Product image thumbnail 1
$47.14/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YS29L
North Coast Part # 828418

Specifications

  • Conductor - Copper Str Compact Size: 250
  • Conductor - Copper Str Size: 250 kcmil
  • Conductor - Copper Str Size Range: 250 kcmil
  • Country of Origin: US
  • Dimension - B Length fraction: 1-1/16 in
  • Dimension - B Length inch: 1.06 in
  • Dimension - L Length Overall mm: 62 mm
  • Dimension - Length Overall inch: 2.46 in
  • Dimension - Strip Length inch: 1-1/8
  • Each - Height: 0.000 in
  • Each - Length: 0.000 in
  • Each - Width: 0.000 in
  • Feature - Barrel Style: Chamfered
  • Feature - Barrel Type: Standard
  • Industry Standard(s): UL 486A-486B
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • Product Type: Compression
  • Rating - KVA: 35 kV
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: UL 486A-486B
  • Standards - RoHS Compliance Status: CM
  • Trade Name: HYLINK™
  • IGS 3D Model Asset Reference URL 2: https://hubbellcdn.com/igs/YS29L_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 3: https://hubbellcdn.com/PDF3DFile/YS29L_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 1: https://hubbellcdn.com/step3dfile/YS29L_MODEL-STEP.zip

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Recognized: No

Overview

UPC 78181007028
GTiN 00781810070284
Family Brand Name Hubbell

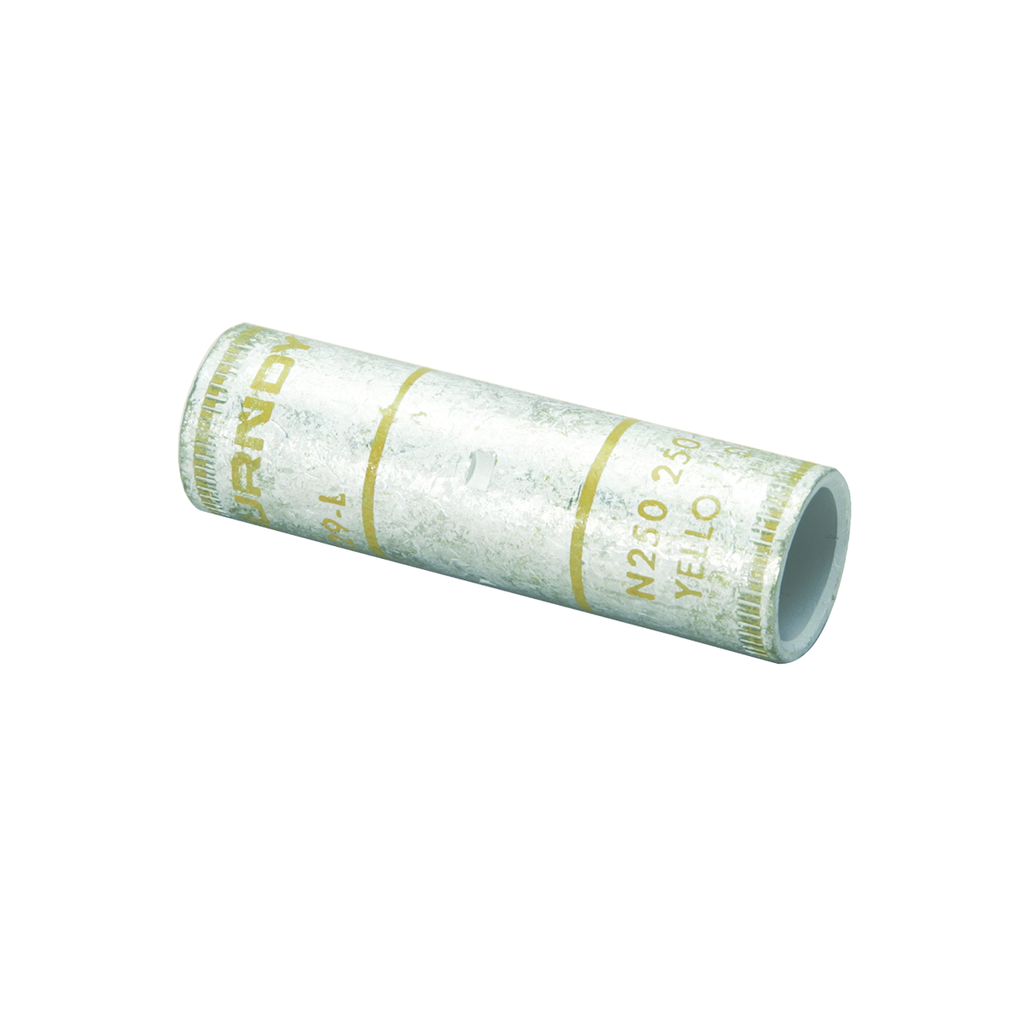

Item Long Description Hylink Cu compression standard barrel code splice tubing, Beveled entry, 250 kcmil .Cu, 600V-35KV, Tin plated.
Length 2.46 in
Color Black
Material Copper
Conductor Size 250 MCM
Plating Type Tin - Electro Plated
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Yellow
