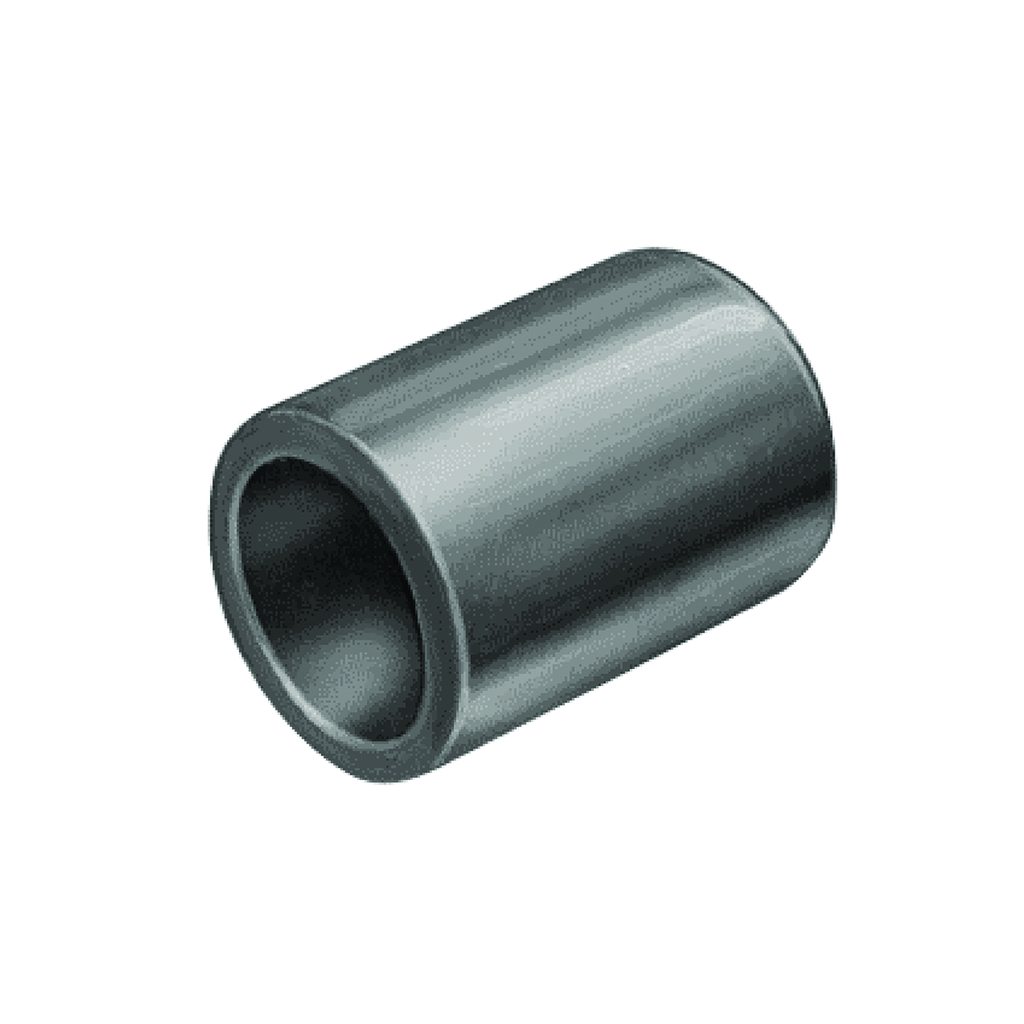

BUR YSCM167 166.5 KCM PARALLEL HYLN
$5.69/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YSCM167
North Coast Part # 73019

Specifications

General

  • Application: Type YSCM HYLINK seamless parallel splice connectors permit stranded wires to be laid parallel inside the connector and spliced together with BURNDY compression tools
  • Color Code: Orange
  • Connector Type: Splice
  • Feature - Barrel Style: Chamfered
  • Feature - Barrel Type: Standard
  • Material: Copper
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • Sub Brand: HYLINK
  • Trade Name: HYLINK™
  • Type: YSCM
  • UPC: 781810358566
  • UPC 12 Digit: 7818103585666

Dimensions

  • Dimension - L Length Overall mm: 21 mm
  • Dimension - Length Overall inch: 0.81 in
  • Dimension - Outside Diameter inch: 0.70 in
  • Dimension - Strip Length inch: 1-1/16

Electrical Ratings

  • Rating - KVA: 35 kV
  • Rating - Minimum Voltage: 600
  • Voltage - Maximum: 600 V

Conductor Related

  • Conductor - Copper Str Size: 2/0 AWG
  • Conductor Type: CU C Str-Size

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: Yes
  • Industry Standard(s): UL468A-468B
  • Standards - Industry Standards Met: UL468A-468B
  • Standards - RoHS Compliance Status: CM
  • UL Listed: No

Logistics

  • Minimum Pack Quantity: 1

Overview

UPC 78181035856
GTiN 00781810358566
Size 0.81 +/- 03 IN Length X 0.70 +/- 01 IN Outer-Diameter
Type YSCM
Applications Type YSCM HYLINK seamless parallel splice connectors permit stranded wires to be laid parallel inside the connector and spliced together with BURNDY compression tools
Family Brand Name Burndy
Sub Brand HYLINK
Length 0.81 in
Color Black
Material Copper
Conductor Size 2/0 AWG
Plating Type Tin - Electro Plated
Conductor Type CU C Str-Size
Plated? Yes
CSA No
Max Voltage 600 V
Color Coding Orange
