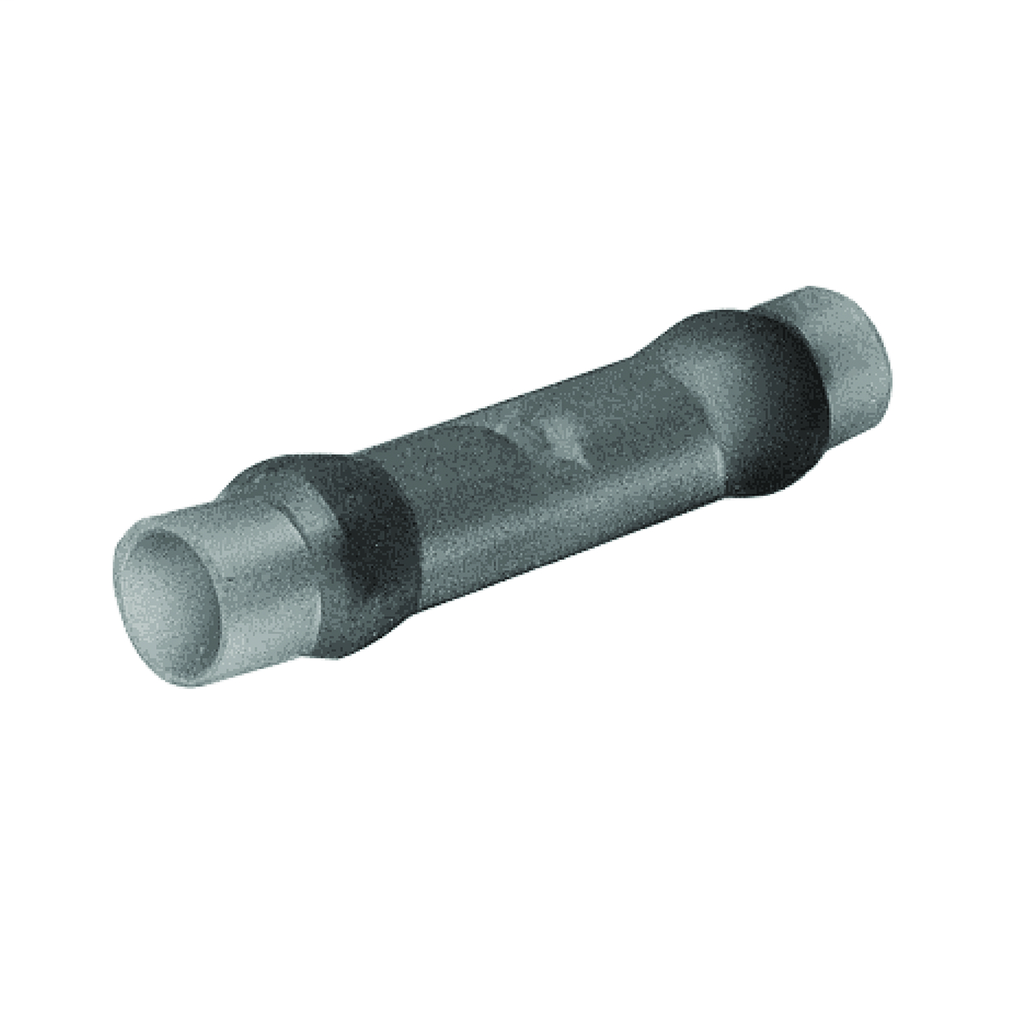

BUR YSE10BOX SPLICE- 12-10 AWG-NYL
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1.56/ea
Usually ships within 11 to 17 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YSE10BOX
North Coast Part # 219510

Features

  • The Types YSE And YSE-H INSULINKS Are High Quality Nylon Insulated Butt Splices Designed For Splicing Aircraft And Commercial Flexible Cables, Manufactured From Tin Plated, Seamless Electrolytic Copper Tubing With Integral Barrel/Insulation Grip: Provides Maximum Conductivity And Tensile Strength, Plus Excellent Cable Support And Strain Relief, Split Heavy Wall Insulation Grip: Provides Stronger Insulation Grip And Strain Relief, Smooth Funnel Entry: Provides Easy Wire Insertion, Transparent Nylon Insulation: Permits Easy Wire Inspection, Package: Box, Insulation Support: No, Installation Tool: Y10D Tool, Ratchet: MR8-33S-1 Tool, Color Code: Yellow, Wire Strip Length: 23/64 IN, Conductor Type: Commercial/Aircraft Stranded Copper

Specifications

  • Buy American Compliant: Yes
  • Conductor - Copper Str Aircraft Size: AN 12;AN 10
  • Conductor - Copper Str Aircraft Size Range: AN 12-AN 10
  • Conductor - Copper Str Size: 12;10
  • Conductor - Copper Str Size Range: 12-10
  • Country of Origin: US
  • Dimension - B Length fraction: 3/10 in
  • Dimension - B Length inch: 0.30 in
  • Dimension - Diameter Max Size inch: 0.22 in
  • Dimension - L Length Overall mm: 29 mm
  • Dimension - Length Overall inch: 1.15 in
  • Dimension - Outside Diameter inch: 0.21 in
  • Dimension - Strip Length inch: 23/64 in
  • Each - Height: 0.21 in
  • Each - Length: 1.15 in
  • Each - Width: 0.21 in
  • Industry Standard(s): UL486
  • Insulation Type: Nylon
  • Plated: Y
  • Plating Type: Tin
  • Product Type: Compression
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: UL486
  • Standards - RoHS Compliance Status: CM
  • Trade Name: INSULINKā„¢
  • Application: For Splicing Aircraft And Commercial Flexible Cables
  • Insulation: Y
  • Special Features: Features: The Types YSE And YSE-H INSULINKS Are High Quality Nylon Insulated Butt Splices Designed For Splicing Aircraft And Commercial Flexible Cables, Manufactured From Tin Plated, Seamless Electrolytic Copper Tubing With Integral Barrel/Insulation Grip: Provides Maximum Conductivity And Tensile Strength, Plus Excellent Cable Support And Strain Relief, Split Heavy Wall Insulation Grip: Provides Stronger Insulation Grip And Strain Relief, Smooth Funnel Entry: Provides Easy Wire Insertion, Transparent Nylon Insulation: Permits Easy Wire Inspection, Package: Box, Insulation Support: No, Installation Tool: Y10D Tool, Ratchet: MR8-33S-1 Tool, Color Code: Yellow, Wire Strip Length: 23/64 IN, Conductor Type: Commercial/Aircraft Stranded Copper
  • Standard: UL486
  • Sub Brand: INSULINK
  • Temperature Rating: 105
  • Type: YSE

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181056630
Item Long Description Cu Butt Splice, Smooth Funnel Entry, W/InspWindow, AN12-10, 600 V, 1.15" L, Nylon Insul, Integral bbl, Tin Plated, Yellow.
GTiN 00781810566305
Finish Tin Plated
Size 1.15 IN Maximum Insulation Length X 0.209 IN Diameter
Type YSE
Material Copper
Applications For Splicing Aircraft And Commercial Flexible Cables
Temperature Rating 105
Family Brand Name Burndy
Sub Brand INSULINK
Length 1.15 in
Color Black
Insulation Type Nylon
Plating Type Tin
Conductor Type CU C Str-Size
Plated? Yes
CSA Yes
Max Voltage 600 V
Color Coding Yellow
