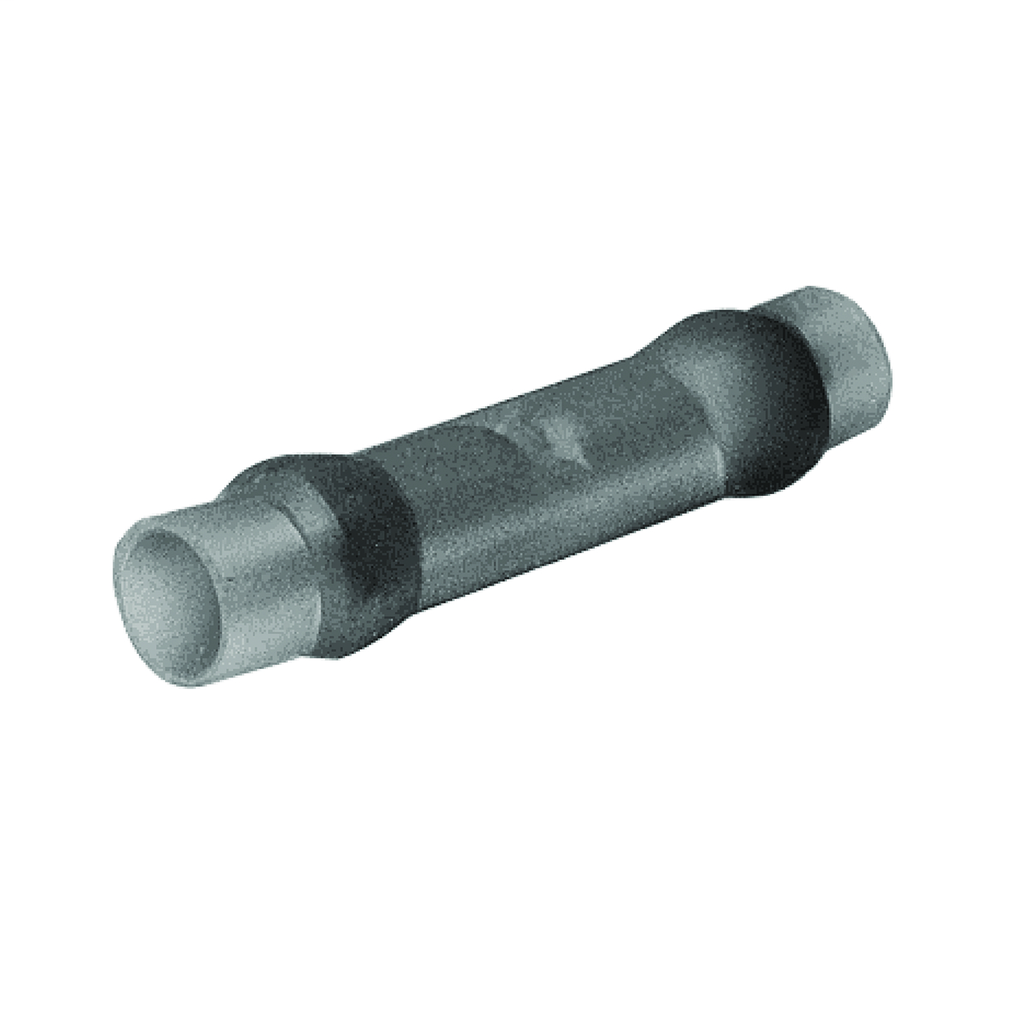

BUR YSE18HHS 22-18 H/S Butt Connect

Specifications

General

• Application: For Splicing Aircraft And Commercial Flexible Cables
• Connector Type: Heat Shrink Butt Splice
• Insulation: Y
• Insulation Type: Heat Shrink
• Material: Copper
• Plated: Y
• Plating Type: Tin
• Sub Brand: HYDENT
• Trade Name: HYDENT™
• Type: YSE-H, Heat Shrink
• UPC: 781810525494

Dimensions

• Dimension - Inside Diameter inch: 0.17 in
• Dimension - L Length Overall mm: 38 mm
• Dimension - Length Overall inch: 1.50 in
• Dimension - Strip Length inch: 9/32 in

Conductor Related

• Conductor Range: #18 AWG to #22 AWG

Certifications and Compliance

• Certification - CSA Approved: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Certification - cULus: No
• Standards - RoHS Compliance Status: CM
• UL Listed: No

Logistics

• Carton Quantity: 100 EA
• Minimum Pack Quantity: 100

Conductor Type

• CU C Solid-Size
• CU C Str-Size
