BUR YSHG3931 6 REBAR-14AW6 DBL H-TA
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$140.87/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YSHG3931
North Coast Part # 12028

Features

  • UL467 Listed: Suitable For Direct Burial In Earth Or Concrete, Material Is High Conductivity Copper Extrusion: Minimizes Resistance, Eliminates Corrosion Due To Dissimilar Metals, Grooves Are Prefilled With PENETROX E2 Oxide Inhibitor And Individually Sealed: Inhibits Moisture And Contaminants Ensuring Electrical Integrity, Rebar Size: #6, Ground Rod Size: 1 IN, Die Index: KR Element A, Wire Entry: Double, Tools, Die Set Catalog Number, And (number Of Crimps): Y46 Tool, PYFR Die, (2), Conductor Type: Run: Rebar, Ground Rod, Copper Conductor, Tap1: Copper Wire, Tap2: Copper Wire, Tap3: Copper Wire, Conductor Size (run - Range): 350 - 500 KCMIL, Shape: H, Conductor Size (tap Range): Tap1: 1/0 - 4/0 AWG, Tap2: 6 - 1 AWG, Tap3: 14 - 2 AWG

Specifications

  • Buy American Compliant: Yes
  • Conductor - Copper Str Run: 250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
  • Conductor - Copper Str Run Range: 250-500 kcmil
  • Conductor - Copper Str Tap: 4/0 - 1/0 AWG (Tap 1)/ 1 - 6 AWG ( Tap 2)/ 2 -14 AWG (Tap 3)
  • Conductor - Copper Str Tap Range: 4/0 - 1/0 AWG (Tap 1)/ 1 - 6 AWG ( Tap 2)/ 2 -14 AWG (Tap 3)
  • Conductor - Rebar Run: 6
  • Conductor - Rebar Run Range: 6
  • Conductor - Rod Run: 3/4 in
  • Conductor - Rod Run Range: 3/4 in
  • Country of Origin: US
  • Dimension - Length Overall inch: 2.34 in
  • Dimension - Width inch: 2.97 in
  • Dimension - Width mm: 75 mm
  • Each - Height: 2.97 in
  • Each - Length: 2.34 in
  • Each - Width: 1.50 in
  • Industry Standard(s): UL 467, Direct Burial
  • Plated: N
  • Plating Type: Unplated
  • Product Type: Compression
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: UL467
  • Standards - RoHS Compliance Status: CM
  • Trade Name: HYGROUND┬«
  • Application: For Direct Burial In Earth Or Concrete
  • Special Features: Features: UL467 Listed: Suitable For Direct Burial In Earth Or Concrete, Material Is High Conductivity Copper Extrusion: Minimizes Resistance, Eliminates Corrosion Due To Dissimilar Metals, Grooves Are Prefilled With PENETROX E2 Oxide Inhibitor And Individually Sealed: Inhibits Moisture And Contaminants Ensuring Electrical Integrity, Rebar Size: #6, Ground Rod Size: 1 IN, Die Index: KR Element A, Wire Entry: Double, Tools, Die Set Catalog Number, And (number Of Crimps): Y46 Tool, PYFR Die, (2), Conductor Type: Run: Rebar, Ground Rod, Copper Conductor, Tap1: Copper Wire, Tap2: Copper Wire, Tap3: Copper Wire, Conductor Size (run - Range): 350 - 500 KCMIL, Shape: H, Conductor Size (tap Range): Tap1: 1/0 - 4/0 AWG, Tap2: 6 - 1 AWG, Tap3: 14 - 2 AWG
  • Standard: UL 467, Direct Burial
  • Sub Brand: CRIMPIT
  • Type: Taps

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Listed Direct Burial: Yes
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181012968

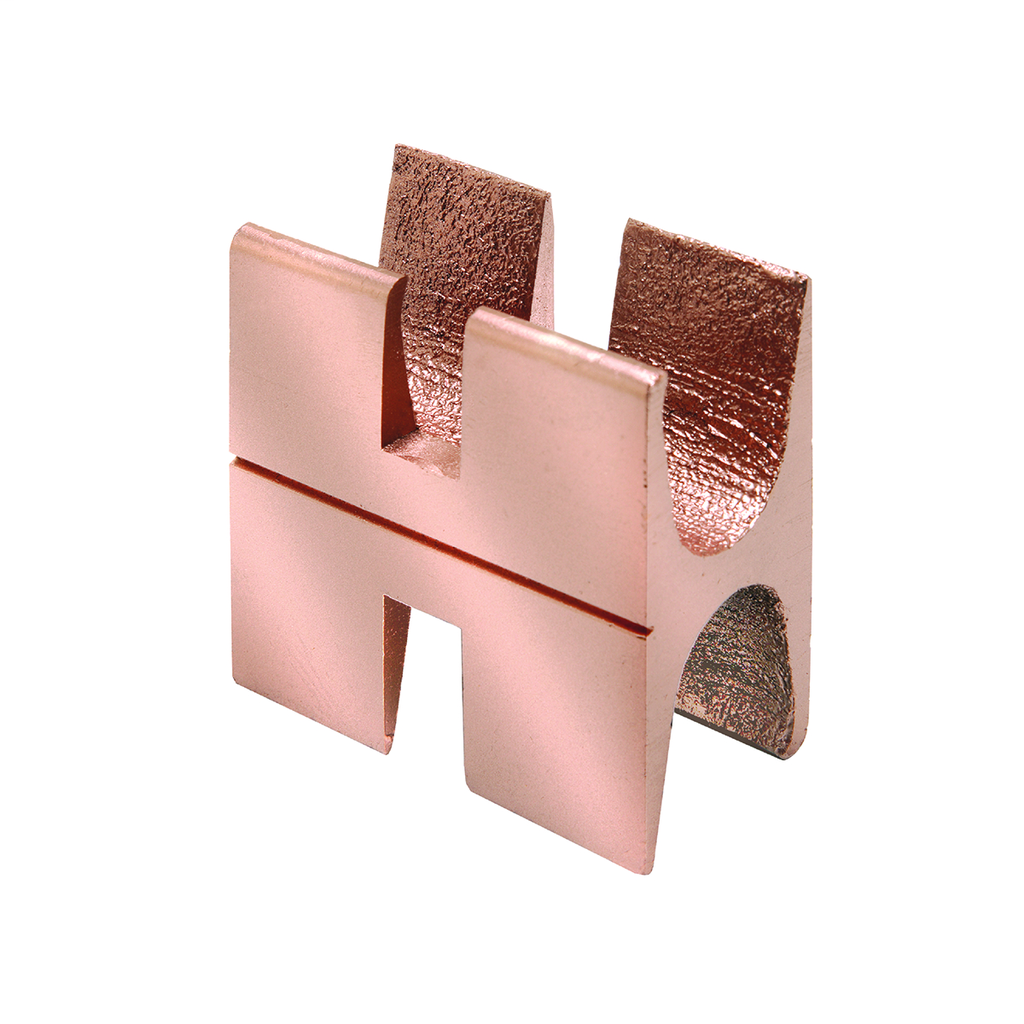

Item Long Description Copper Compression Double H- Tap Connector, 4/0 - 1/0 AWG (Tap 1)/ 1 - 6 AWG ( Tap 2)/ 2 -14 AWG (Tap 3), # 6 Rebar/ 1" Cu Clad Rod/ 3/4" Ground Rod.
GTiN 00781810129685
Size 2.34 IN Width X 2.97 IN Length X 1.5 IN Depth
Type Taps
Material Copper
Conductor Size Run: 350, 400, 500 KCMIL
Applications For Direct Burial In Earth Or Concrete
Family Brand Name Burndy
Tap Size 4/0, 2/0, 3/0, 1/0 AWG
Sub Brand CRIMPIT
Length 2.34 in
Width 2.97 in
Connection Type H-Tap
Plating Type Unplated
Plated? No
CSA No
