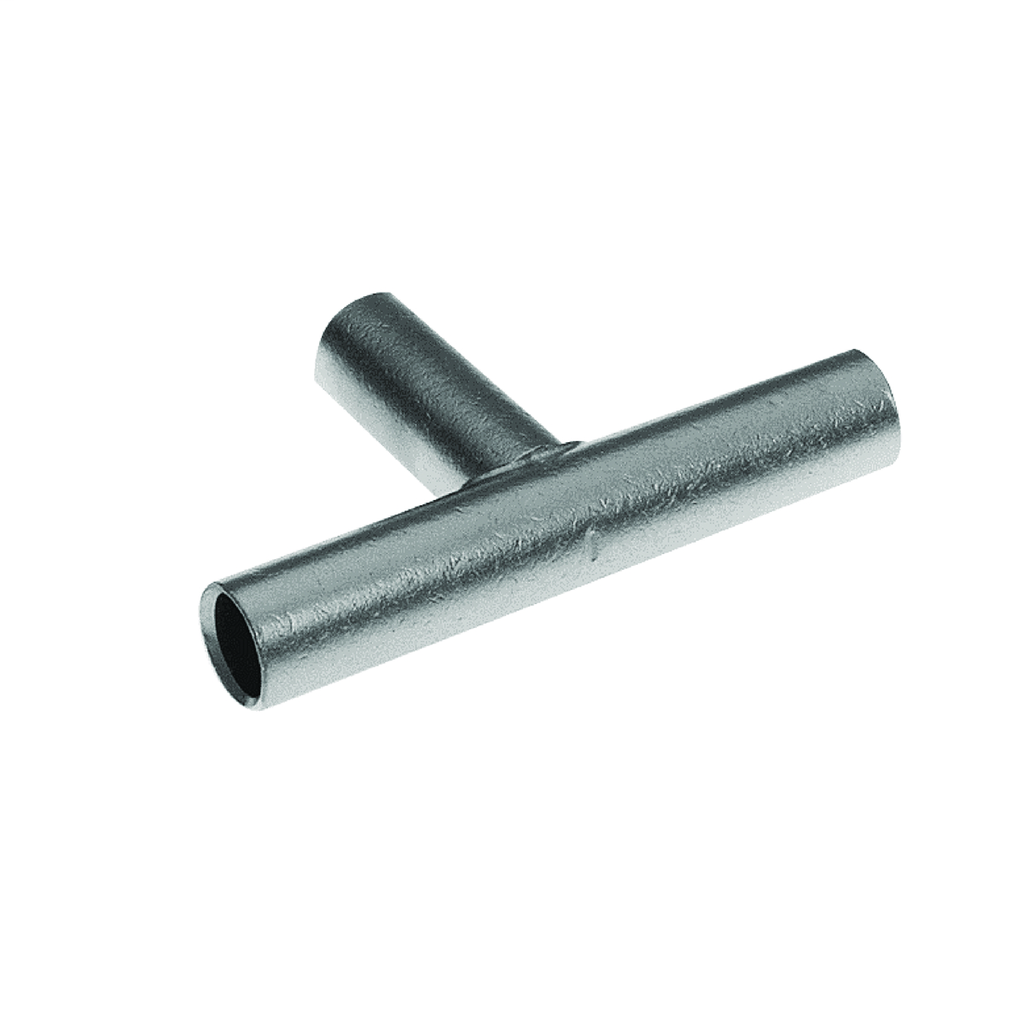

BUR YST2525 1/0R 1/0T CU TEE
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$99.56/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YST2525
North Coast Part # 72748

Features

  • Manufactured From Seamless High Conductivity Electrolytic Copper Tubing With Heavy Duty Wall Thickness, Long Barrel Design On All Three Legs, Long Barrel Permits The Use Of The Y-R Reducers, Electro-Tin Plated, Barrel Diameter Closely Matches Commercial (Code) Cable And Navy Cable Diameters, Stud Hole Size: 1/2-13, Color Code: Pink For Run, Pink For Tap, Tools, Die Set Catalog Number, And (number Of Crimps): Run: Y35, Y39, Y750 Tool, U24RT Die, (2), Y46 Tool, U24RT Die With PUADP-1 Adapter, (2), Tap: Y35, Y39, Y750 Tool, U25RT Die, (2), Y46 Tool, U25RT Die With PUADP-1 Adapter, (2), Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Mechanical HYTOOL: MY29-3, MY29-11 Tool, (2), MD6, MD7 Tool, (4), Hydraulic HYPRESS: Y644HS Tool, (1), Wire Strip Length: 1-7/16 IN Run And Tap, Die Index: 12 Or 348

Specifications

  • Color Code - Side A: Pink
  • Color Code - Side B: Pink
  • Conductor - Copper Str Run: 1/0
  • Conductor - Copper Str Run Range: 1/0 AWG
  • Conductor - Copper Str Tap: 1/0
  • Conductor - Copper Str Tap Range: 1/0 AWG
  • Country of Origin: US
  • Die Index Run Side: 12
  • Die Index Tap Side: 12
  • Dimension - A Outside Diameter inch: 0.51 in
  • Dimension - B Length fraction: 1-3/8 in
  • Dimension - B Length inch: 1.38 in
  • Dimension - B Outside Diameter inch: 0.51 in
  • Dimension - Height inch: 1.91 in
  • Dimension - L Length Overall mm: 97 mm
  • Dimension - Length BB inch: 1.56 in
  • Dimension - Length Overall inch: 3.81 in
  • Dimension - Width inch: 1.56 in
  • Each - Height: 2.165 in
  • Each - Length: 3.81 in
  • Each - Width: 0.51 in
  • Feature - Barrel Type: Long
  • Industry Standard(s): UL 486A-486B
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • Product Type: Compression
  • Rating - KVA: 35 kV
  • Standards - Industry Standards Met: UL 486A-486B
  • Standards - RoHS Compliance Status: CM
  • Trade Name: HYTEEâ„¢
  • Sub Brand: HYTEE

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

GTiN 00781810001134
Finish Tin Plated
Size 1.91 IN Height X 3.81 IN Length X 1.62 IN Dimension B X 1.56 IN Dimension BB
Type YST, Uninsulated T
Material Copper
Applications For Run Conductor With A Perpendicular Tap Conductor
Temperature Rating 194
Family Brand Name Burndy
Sub Brand HYTEE
Product UPC 78181000113
Length 3.81 Inch
Width 0.51 in
Height 2.165 Inch
Connection Type T-Connector
Plating Type Tin - Electro Plated
Plated? Yes
CSA No
Max Voltage 35000 V
Color Coding Pink
Country of Origin USA
Overall Length 3.81 in
