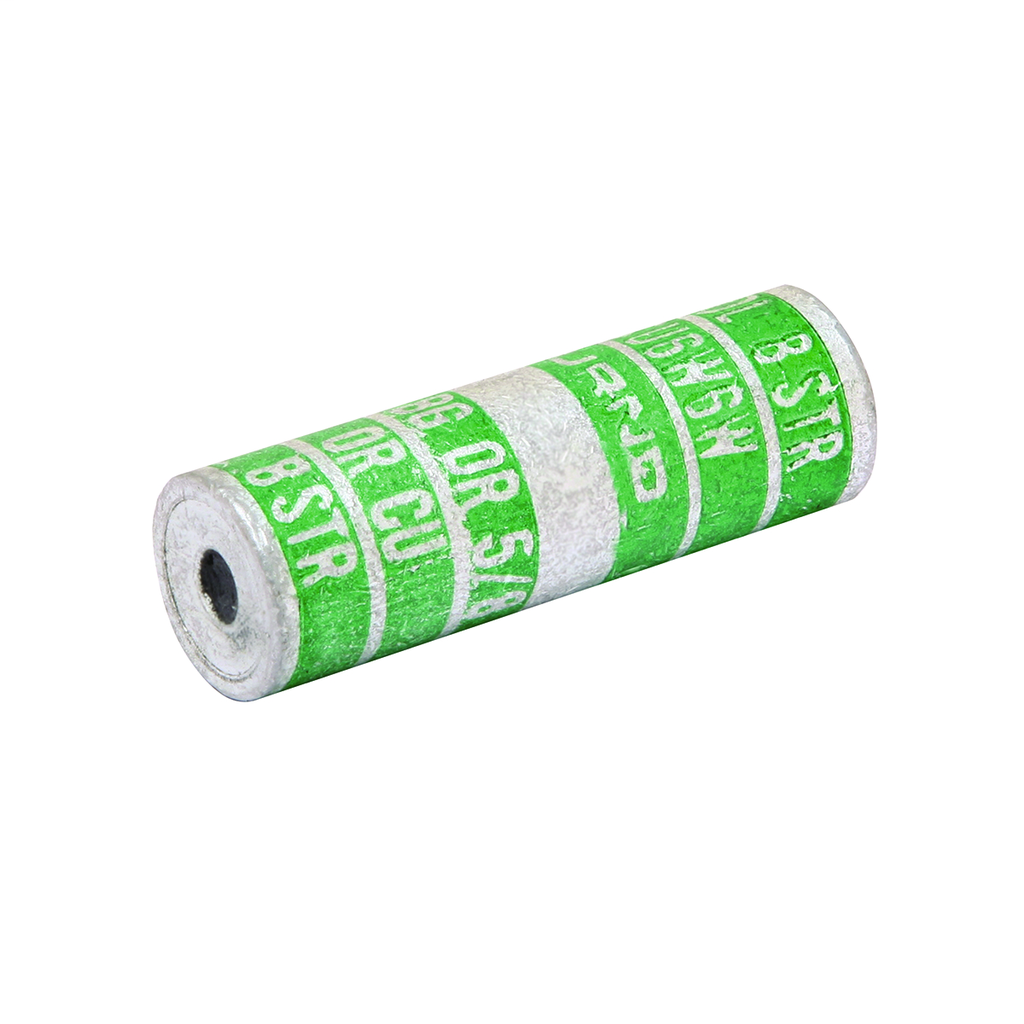

Burndy YSU2W8W 8 to 4 AWG 2 Inch Aluminum Non-Insulated Solid Barrier Compression Service Entrance Splice
Product image thumbnail 0
Product image thumbnail 1
$1.64/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YSU2W8W
North Coast Part # 420197

Specifications

General

  • Color Code - Side A: Orange
  • Color Code - Side B: Brown
  • Die Index: 243;BG or 5/8
  • Material: Aluminum
  • Plated: Y
  • Plating Type: Tin - Hot Dipped
  • Prefilled Oxide Inhibitor: Y
  • Trade Name: LINKITâ„¢
  • Type: Service Entrance, Uninsulated, Center Stop
  • UPC: 781810142400
  • UPC 12 Digit: 7818101424000

Dimensions

  • Dimension - B Length inch: 0.87 in
  • Dimension - L Length Overall mm: 51 mm
  • Dimension - Length Overall inch: 2 in
  • Dimension - Outside Diameter inch: 0.65 in

Conductor Related

  • Conductor - ACSR Str Size A: 4 (6/1) Swan AWG;4 (7/1) Swanate AWG
  • Conductor - ACSR Str Size A Range: 4 (6/1) Swan AWG-4 (7/1) Swanate AWG
  • Conductor - AL Str Size A: 3 AWG, 4 AWG
  • Conductor - AL Str Size A Range: 3 AWG- 4 AWG
  • Conductor - AL Str Size B: 10 AWG
  • Conductor - Copper Solid Size A: 2 AWG
  • Conductor - Copper Solid Size B: 8 AWG
  • Conductor - Copper Str Size A: 3 AWG, 4 AWG
  • Conductor - Copper Str Size A Range: 3 AWG-4 AWG
  • Conductor - Copper Str Size B: 10 AWG

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: No

Logistics

  • Minimum Pack Quantity: 100

Overview

UPC 78181014240
GTiN 00781810142400
Family Brand Name Hubbell
Length 2 in
Material Aluminum
Plating Type Tin - Hot Dipped
Plated? Yes
CSA No
