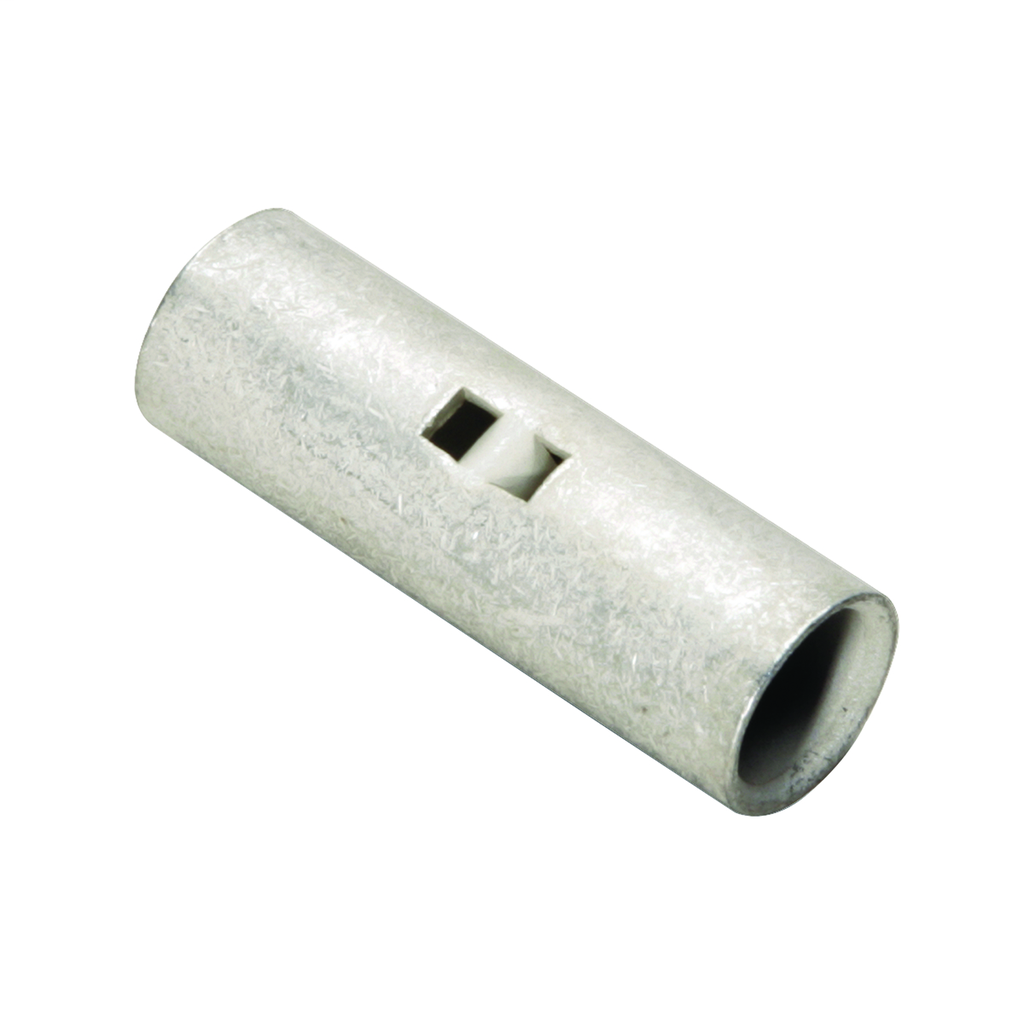

BUR YSV10 12-10 HVYDTY BUTT SPLICE
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$28.98/c (100 ea)
Usually ships within 11 to 17 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YSV10
North Coast Part # 679886

Features

  • HYLINK Type YSV Seamless Splice Connector Is Used To Splice Stranded And Solid Copper Conductors In Virtually All Heavy Duty Industrial And General Purpose Applications, Manufactured From Seamless Tubing: A High Quality Design With No Seams To Split, Electrolytic Copper: Provides Maximum Conductivity, Low Resistance And Ductility For Excellent Crimp Forming Properties, Electro-Tin Plated: Provides Durable Long Lasting Resistance To Corrosion, Positive Center Wire Stops: Provides Proper Depth Of Wire Insertion, Marked With Wire Size: Provides Easy Wire Size Identification, The HYLINK Splice Connectors Have Inspection Holes: Provides Easy Visual Inspection ForProper Wire Insertion, Installation Tool: HYTOOL: Non-Ratchet: Y10D, Y10-22 Tool, Ratchet: Y8MRB-1, MR20, MR8G98, MR8-9Q Tool, Insulation Support: No, Conductor Type: Solid Conductor, Wire Strip Length: 5/16 IN

Specifications

  • Conductor - Copper Solid Size: 12;11;10
  • Conductor - Copper Solid Size Range: 12-10
  • Conductor - Copper Str Aircraft Size: AN 12;AN 10
  • Conductor - Copper Str Aircraft Size Range: AN 12-AN 10
  • Conductor - Copper Str Navy Size: 6 (7);6 (19);9 (7);9 (37)
  • Conductor - Copper Str Navy Size Range: 6 (7)-9 (37)
  • Conductor - Copper Str Size: 12;10
  • Conductor - Copper Str Size Range: 12-10
  • Country of Origin: US
  • Dimension - B Length fraction: 5/16 in
  • Dimension - B Length inch: 0.31 in
  • Dimension - Inside Diameter inch: 0.13 in
  • Dimension - L Length Overall mm: 19 mm
  • Dimension - Length Overall inch: 0.75 in
  • Dimension - Outside Diameter inch: 0.21 in
  • Dimension - Strip Length inch: 5/16
  • Each - Height: 0.21 in
  • Each - Length: 0.75 in
  • Each - Width: 0.21 in
  • Feature - Barrel Style: Chamfered
  • Plated: Y
  • Plating Type: Tin
  • Product Type: Compression
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: CM
  • Trade Name: HYLINK™
  • Sub Brand: HYLINK

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181080605
Item Long Description Copper Butt Splice, w/ Inspection Hole, 12-10 AWG, 0.75" Splice Length, Tin Plated.
GTiN 00781810806050
Finish Tin Plated
Size 075 IN Length
Type Splice
Material Copper
Applications For All Heavy Duty Industrial And General Purpose Applications
Temperature Rating 90
Family Brand Name Burndy
Sub Brand HYLINK
Length 0.75 in
Color Black
Plating Type Tin
Plated? Yes
CSA Yes
Max Voltage 35000 V
