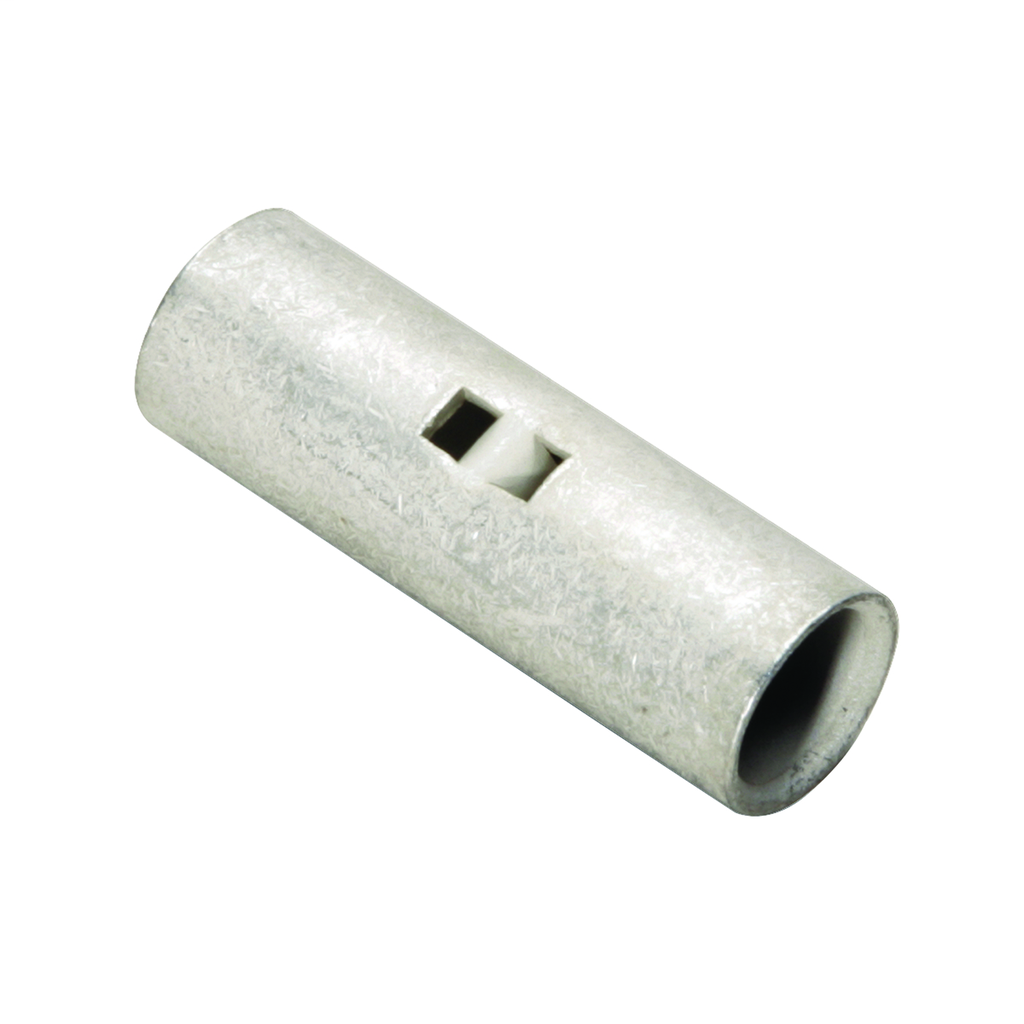

BUR YSV10BOX SPLICE- 12-10 AWG-UNI
Product image thumbnail 0
Product image thumbnail 1
$49.40/c (100 ea)
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YSV10BOX
North Coast Part # 15301

Specifications

General

  • Application: For All Heavy Duty Industrial And General Purpose Applications
  • Connector Type: Splice
  • Feature - Barrel Style: Chamfered
  • Material: Copper
  • Plated: Y
  • Plating Type: Tin
  • Sub Brand: HYLINK
  • Trade Name: HYLINK™
  • Type: Splice
  • UPC: 781810543603

Dimensions

  • Dimension - L Length Overall mm: 19 mm
  • Dimension - Length Overall inch: 0.75 in
  • Dimension - Outside Diameter inch: 0.21 in
  • Dimension - Strip Length inch: 5/16 in

Electrical Ratings

  • Voltage - Maximum: 35000 V

Conductor Related

  • Conductor - Copper Solid Size: 12-10 AWG
  • Conductor - Copper Str Aircraft Size: AN 12;AN 10
  • Conductor - Copper Str Size: 12-10 AWG

Certifications and Compliance

  • Certification - CSA Approved: Yes
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Carton Quantity: 600 EA
  • Minimum Pack Quantity: 50

Conductor Type

  • CU C Str-Size
  • CU C Solid-Size
  • CU C Str Aircraft-Size

Overview

UPC 78181054360
GTiN 00781810543603
Finish Tin Plated
Size 075 IN Length
Type Splice
Material Copper
Applications For All Heavy Duty Industrial And General Purpose Applications
Family Brand Name Burndy
Sub Brand HYLINK
Length 0.75 in
Color Black
Conductor Size 12-10 AWG
Plating Type Tin
Plated? Yes
CSA Yes
Max Voltage 35000 V
