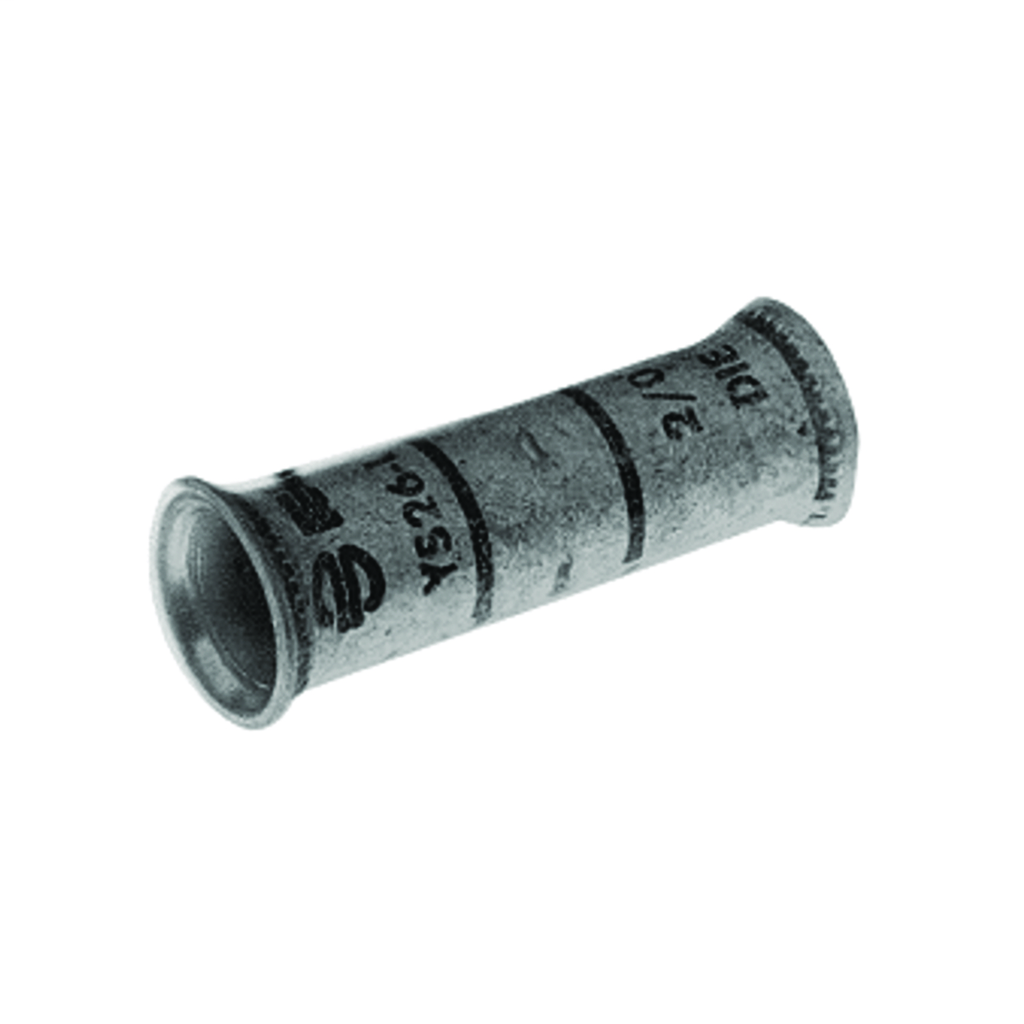

BUR YSV6CFXB BELLED SPLICE 6 FLEX/A
Product image thumbnail 0
Product image thumbnail 1
$30.81/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YSV6CFXB
North Coast Part # 1337483

Features

  • Long Barrel Length: High Voltage Terminations, Four (4) Center Conductor Stops: Provides A Center Wire Stop For Proper Conductor Insertion, High Pull Out Force: Provides Added Security For Greater Mechanical And Electrical Properties, Belled Cable Entry: A Funnel Type Entry Provide Easy Insertion Of Extra Flexible Cables Plus Offers Mechanical Strain Relief For Individual Strands, Color Code: Blue, Oil Stop: No, Tapered End: No, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Die Index: 7 Element A, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: Y1MR, Y2MR Tool, (2), Y1MRTC Tool, Y35, Y39, Y750 Tool, U5CRT Die, (2), Y46 Tool, U5CRT Die With PUADP-1 Adapter, (2), Conductor Type: Flexible Copper, Wire Strip Length: 1-5/16 IN

Specifications

  • Conductor - Copper DLO Size: 6 (61/#24) DLO
  • Conductor - Copper Flex G Size: 6 AWG
  • Conductor - Copper Flex H Size: 6 AWG
  • Conductor - Copper Flex I Size: 6 AWG
  • Conductor - Copper Flex K Size: 6 AWG
  • Conductor - Copper Flex M Size: 6 AWG
  • Conductor - Copper Solid Size: 6 AWG
  • Conductor - Copper Str Compact Size: 6
  • Conductor - Copper Str Compact Size Range: 6
  • Conductor - Copper Str Navy Size: 30 (19)
  • Conductor - Copper Str Size: 6 AWG
  • Country of Origin: US
  • Dimension - B Length fraction: 1-3/16 in
  • Dimension - B Length inch: 1.22 in
  • Dimension - D inch: 0.37 in
  • Dimension - L Length Overall mm: 67 mm
  • Dimension - Length Overall inch: 2.62 in
  • Dimension - Outside Diameter inch: 0.31 in
  • Dimension - Strip Length inch: 1-5/16 in
  • Each - Height: 0.000 in
  • Each - Length: 0.000 in
  • Each - Width: 0.000 in
  • Feature - Barrel Style: Belled
  • Feature - Barrel Type: Long
  • Plated: Y
  • Plating Type: Tin
  • Product Type: Compression
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: CM
  • Trade Name: HYLINK™
  • Sub Brand: HYLINK

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181004150
Item Long Description Telecom Belled Copper Hylink, #6 Str.(61/24) #6 AWG, 30 Navy, 2.62 IN L, Cable Strip Length: 1-5/16 IN.
GTiN 00781810041505
Family Brand Name Hubbell
Length 2.62 in
Color Black
Material Copper
Conductor Size 6 AWG
Plating Type Tin
Plated? Yes
CSA No
Color Coding Blue
