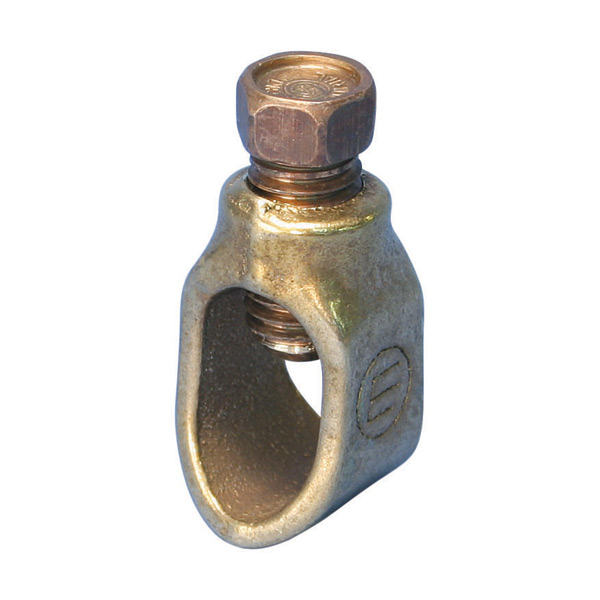

Erico HDC58 5/8 Inch Diameter #8 Solid to 1/0 Stranded Silicon Bronze Ground Rod Clamp
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$13.52/ea
In Stock | 20 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Caddy
Mfg Catalog # HDC58
North Coast Part # 427560

Features

  • For use with copper-bonded ground rods
  • Parts that are UL Listed are suitable for direct burial in earth or concrete

Specifications

  • Part Number: HDC58
  • Torque (TQ): 150 – 450 in lb
  • Material: Silicon Bronze
  • Ground Rod Diameter, Nominal: 5/8"
  • Ground Rod Diameter, Actual (Ø): 0.56"
  • Conductor Size: #8 Solid - 1/0 Stranded || 10 mm² Solid - 50 mm² Stranded
  • Wrench Size: 9/16"
  • Certifications: CSA 46866 || cULus
  • Standard Packaging Quantity: 50 pc
  • UPC: 78285630588

Categories

Overview

UPC 78285630588
GTiN 00782856305880
Type Ground Rod Clamp, Rod to Cable
Material Silicon Bronze
Conductor Size 10 mm
Standard CULus
Torque 450 lb-in
Family Brand Name Erico
Certifications CULus,CSA 46866
Standard Packaging Qty 50 pc
Sub Brand ERICO
