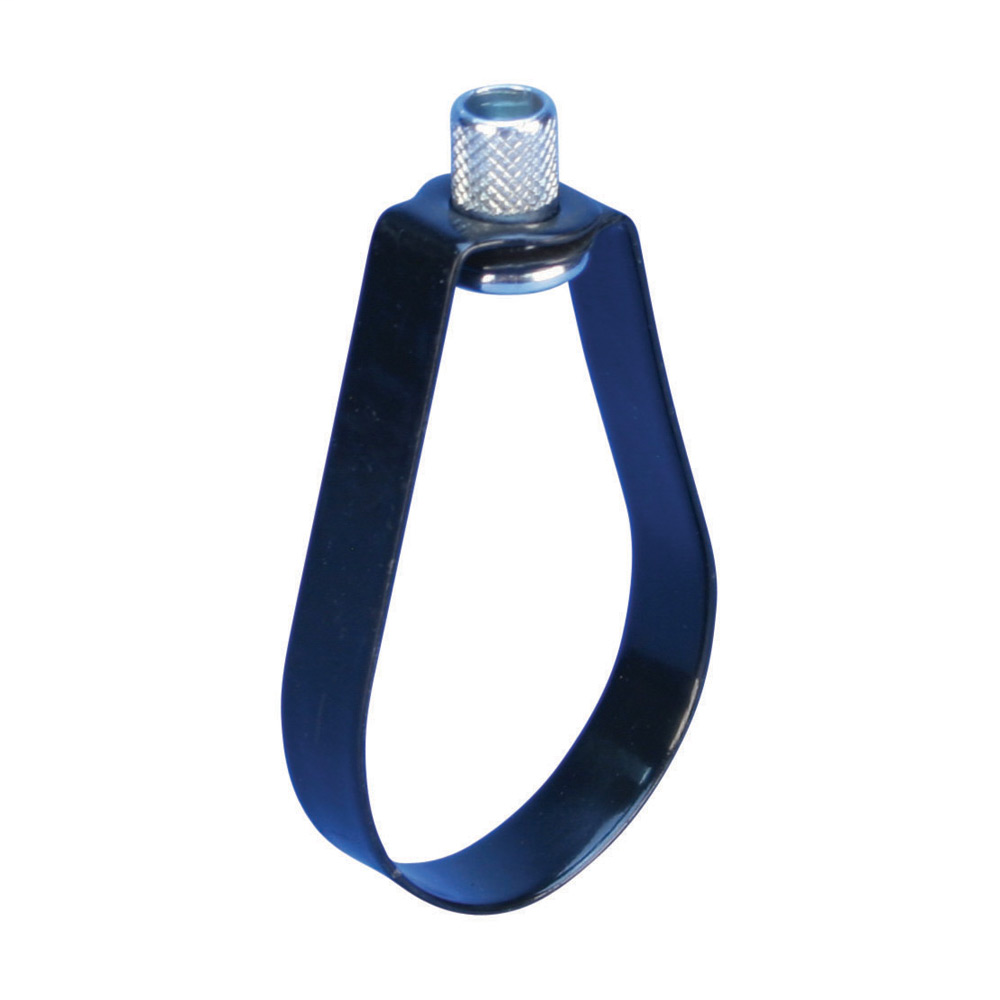

ERC 102A0075VC HANGER,SWIVEL LOOP,3
Product image thumbnail 0
Product image thumbnail 1
$740.43/c (100 ea)
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cadweld
Mfg Catalog # 102A0075VC
North Coast Part # 1834260

Features

  • Recommended for the suspension of stationary non-insulated pipe and copper tubing lines where it is undesirable to have direct contact with the steel of the hanger
  • Conforms with Federal Specification WW-H-171 (Type 10), Manufacturers Standardization Society (MSS) SP-58 (Type 10)

Specifications

  • Part Number: 102A0075VC
  • Material: Steel
  • Finish: Vinyl Coating || Electrogalvanized
  • Pipe Size: 3/4"
  • Outer Diameter (OD): 7/8"
  • Rod Size (RS): 3/8"
  • A: 3 1/8"
  • B: 1 3/8"
  • C: 1 3/16"
  • Static Load (F): 180 lb
  • Standard Packaging Quantity: 100 pc
  • UPC: 78285636098

Overview

UPC 78285636098
GTiN 00782856360988
Finish Electrogalvanized,Vinyl Coating
Type 102A Loop Hanger for Copper Tube, PVC Coated
Material Steel
Outer Diameter 7/8 in
Applications Fire Sprinkler; HVAC, Plumbing and Refrigeration
Pipe Size 3/4 in
Standard None
Family Brand Name nVent CADDY
Standard Packaging Qty 100 pc
Sub Brand CADDY
