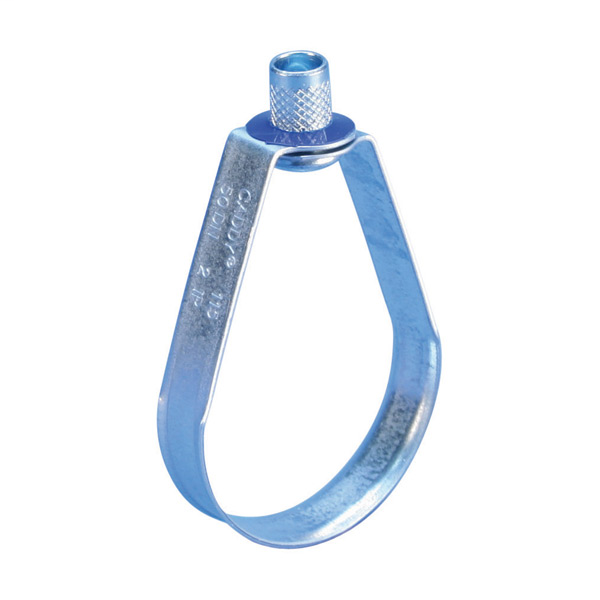

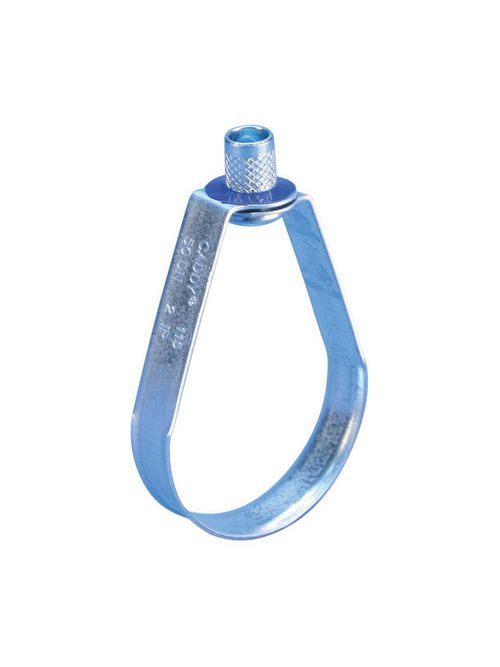

ERC 1150075EG HANGER,LOOP,SWIVEL,3/
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$185.56/c (100 ea)
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cadweld
Mfg Catalog # 1150075EG
North Coast Part # 1834255

Features

  • Flared edges help prevent any sharp surfaces from coming into contact with the pipe (1/2" to 4" sizes)
  • Retained insert nut helps ensure the loop hanger and insert nut stay together
  • Recommended for the suspension of stationary non-insulated pipe lines
  • Manufactured to use the minimum rod size permitted by NFPA® for fire sprinkler piping
  • Conforms with Federal Specification WW-H-171 (Type 10), Manufacturers Standardization Society (MSS) SP-58 (Type 10)

Specifications

  • Part Number: 1150075EG
  • Material: Steel
  • Finish: Pregalvanized
  • Pipe Size: 3/4"
  • Outer Diameter (OD): 1.05"
  • Rod Size (RS): 3/8"
  • A: 3"
  • B: 1 3/16"
  • C: 15/16"
  • Static Load (F): 300 lb
  • Certifications: cULus || FM
  • Standard Packaging Quantity: 100 pc
  • UPC: 78285641726

Overview

UPC 78285641726
GTiN 00782856417262
Finish Pregalvanized
Type 115 Standard Duty Loop Hanger
Material Steel
Outer Diameter 1.05 in
Applications Fire Sprinkler; HVAC, Plumbing and Refrigeration
Pipe Size 3/4 in
Standard FM,CUL,UL
Family Brand Name Caddy
Certifications CULus,FM
Standard Packaging Qty 100 pc
Sub Brand CADDY
