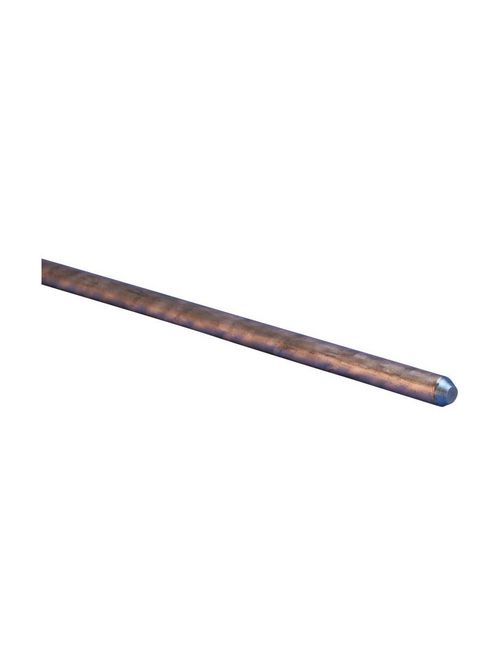

Erico 613880 3/8 Inch x 8 Foot Copper Bonded Steel Pointed Ground Rod
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$35.14/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cadweld
Mfg Catalog # 613880
North Coast Part # 752891

Features

  • 99.9% pure electrolytic copper coating
  • Molecular bond to nickel-sealed high strength steel core
  • Rods have a high carbon steel core and tip that provide superior strength when driving
  • Copper coating will not crack when bent or tear when driven
  • Minimum copper coating of 10 mils on rods listed to UL® 467
  • nVent ERICO name, length, diameter and part number is roll-stamped within 12" (304,8 mm) of chamfered end
  • UL logo and control number where applicable stamped on each rod for easy inspection after installation

Specifications

  • Part Number: 613880
  • Material: Copper-Bonded Steel
  • Tensile Strength: 80,000 psi Min
  • Ground Rod Diameter, Nominal: 3/8"
  • Ground Rod Diameter, Actual (Ø): 0.358"
  • Length (L): 8'
  • Plating Thickness: 10 mil
  • Unit Weight: 2.7 lb
  • UPC Label: No
  • Standard Packaging Quantity: 5 pc
  • UPC: 78285630600
  • EAN-13: 0782856306009

Additional Notes

  • For rods to be listed to UL® 467, they must be at least 8' (2.43 m) in length.
  • IEC® EN 62561-2 supercedes EN 50164-2.
  • Additional lengths available.

Overview

UPC 78285630600
GTiN 00782856306009
Length 8 ft
Material Copper-Bonded Steel
Weight 2.7 lb
Family Brand Name Erico
Standard Packaging Qty 5 pc
Tensile Strength 80,000 PSI
