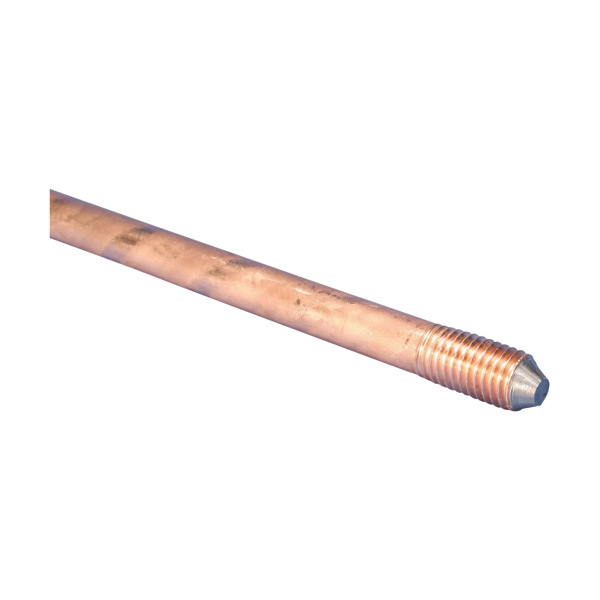

Erico 635800 5/8 Inch x 10 Foot Copper Bonded Sectional Ground Rod
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$24.64/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cadweld
Mfg Catalog # 635800
North Coast Part # 210274

Features

  • Cold-rolled threads with continuous, unbroken grain flows preserve copper coating and are stronger than cut threads
  • 99.9% pure electrolytic copper coating
  • Molecular bond to nickel-sealed high strength steel core
  • Rods have a high carbon steel core and tip that provide superior strength when driving
  • Copper coating will not crack when bent or tear when driven
  • Minimum copper coating of 10 mils on rods listed to UL® 467
  • nVent ERICO name, length, diameter and part number is roll-stamped within 12" (304,8 mm) of chamfered end
  • UL logo and control number where applicable stamped on each rod for easy inspection after installation

Specifications

  • Part Number: 635800
  • Material: Copper-Bonded Steel
  • Tensile Strength: 80,000 psi Min
  • Thread Location: Pointed and Chamfered Ends
  • Ground Rod Diameter, Nominal: 5/8"
  • Ground Rod Diameter, Actual (Ø): 0.56"
  • Thread Size (TS): 5/8 UNC
  • Length (L): 10'
  • Plating Thickness: 10 mil
  • Unit Weight: 8.4 lb
  • Complies With: ANSI®/NEMA® GR1 || IEC® EN 62561-2
  • Certifications: BBJ Z/12/045/16 (Poland) || BBJ Z/12/046/16 (Poland) || CSA 46866 || cULus || RUS
  • Standard Packaging Quantity: 5 pc
  • UPC: 78285630637
  • EAN-13: 0782856306375

Additional Notes

  • For rods to be listed to UL® 467, they must be at least 8' (2.43 m) in length.
  • IEC® EN 62561-2 supercedes EN 50164-2.

Overview

UPC 78285630637
GTiN 00782856306375
Length 10 ft
Type Copper Bonded Ground Rod, Sectional
Material Copper bonded steel
Thread Size 5/8 UNC
Weight 8.4 lb
Standard CULus
Family Brand Name Erico
Certifications BBJ Z/12/046/16 (Poland),RUS,CULus,CSA 46866,BBJ Z/12/045/16 (Poland)
Standard Packaging Qty 5 pc
Tensile Strength 80,000 PSI
Sub Brand ERICO
